Standard & Protocol

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

CPU

Dual-Core 1GHz CPU

RAM

512MB

Interface

3 x GE ports per node

Antenna

5 x 3dBi Internal antennas

Button

1 x RESET Button

1 x MESH Button

Power

Input: AC 100-240V, 50/60Hz

Output: DC 12 V ⎓ 2 A

LED indicator

1 x Tri-color LED Indicator(Green,Yellow,Red)

Dimensions

86*86*190mm (3.39 *3.39 * 7.48 in)

WIRELESS FEATURES

Wireless Standards

5GHz: IEEE 802.11be/ax/ac/n/a

2.4GHz: IEEE 802.11be/ax/n/b/g

Data Rate

2.4GHz: 688Mbps (802.11be)

5GHz: 2882Mbps (802.11be)

Frequency

2.4GHz & 5GHz

Transmission Power

CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm (2.4 GHz)

<30 dBm (5 GHz)

Basic Functions

Beam Forming

MU-MIMO

AP Steering

Band Steering

OFDMA

4K-QAM

Wireless Security

WPA2-PSK

WPA3-SAE/WPA2-PSK

SOFTWARE FUNCTION

Internet Connection Type

PPPoE, Dynamic IP, Static IP

PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Unify,Maxis,Maxis-special,Celcom,Digi

Network Protocol

IPv4&IPv6

Operating Mode

Router Mode,AP Mode,WISP Mode,Client+AP Mode

Parental Control

Client Filter

URL Filter

Time Limit

DHCP

DHCP Server

DHCP Client List

Virtual Server

Port Forwarding

DMZ Host

UPnP

Firewall

Forbid UDP Flood Attack

Forbid TCP Flood Attack

Forbid ICMP Flood Attack

Forbid WAN Ping from Internet

DNS

DynDNS, no-ip, oray, 88ip

VPN

PPTP Server,

PPTP/L2TP Client

Special Features

WPA3

TR069

Unify 2.4 GHz & 5 GHz

Smart LED on/off

Amazon Alexa

One-button Fault Diagnosis

WAN/LAN Port Auto-Negotiation

Other Function

IPTV

IPv6

Guest Network

System Log

Remote Web Management

MAC Clone

Backup & Restore configurations

Firmware upgrade online

OTHER FEATURES

Temperature

Operating Temperature : 0℃~40℃

Storage Temperature : -40C ~70℃

Humidity

Operating Humidity : 10 %~90% RH non-condensing

Storage Humidity : 5 %~ 90%RH non-condensing

Certification

CE

FCC

RoHS

Package Content

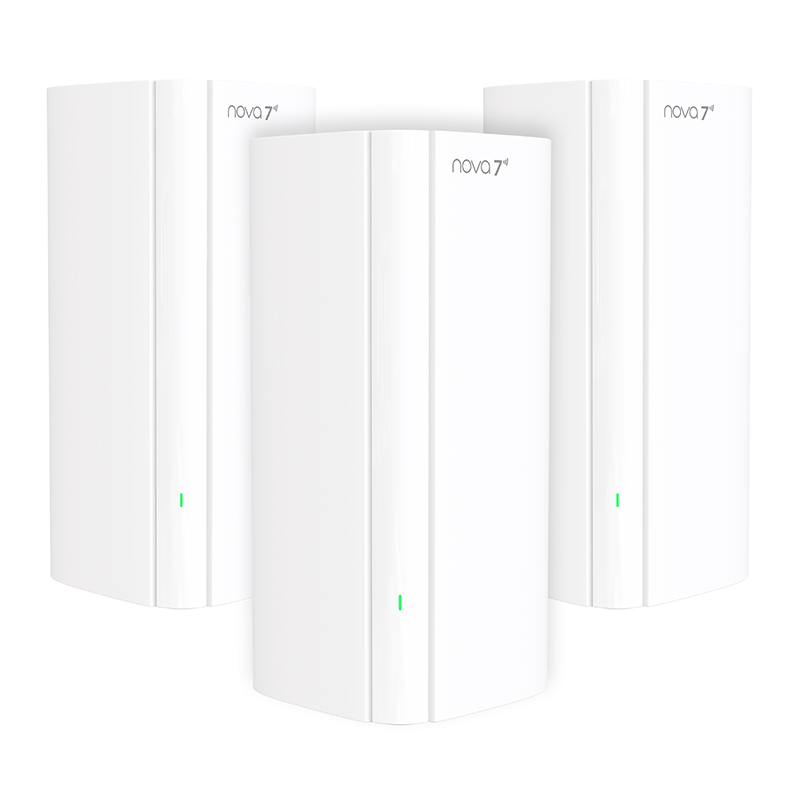

BE3600 Mesh*3

Power Adapters *3

Quick Installation Guide *1

Ethernet Cable *1

NFC Sticker*1
