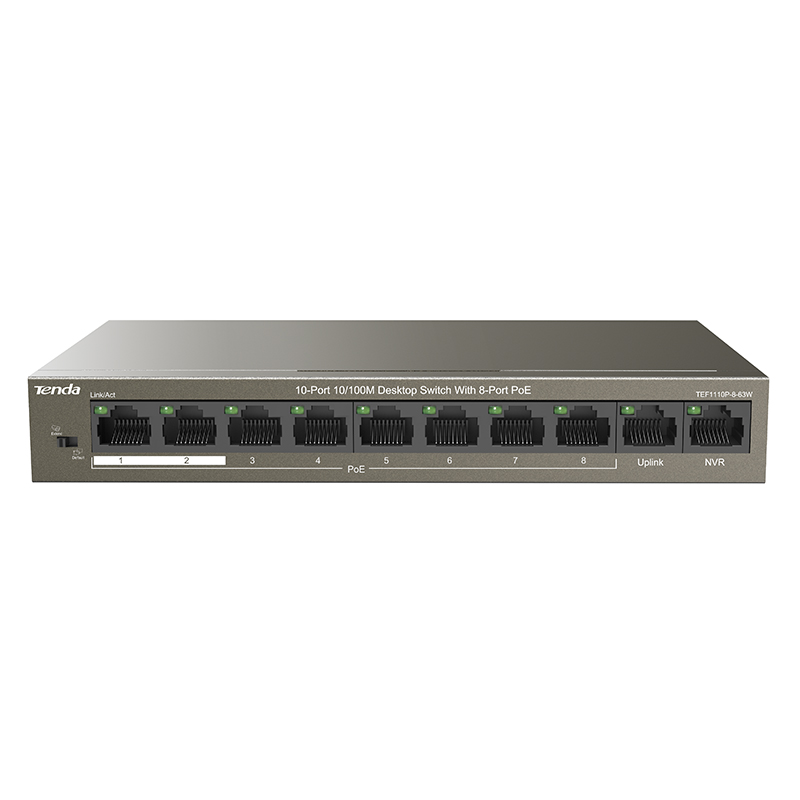

Tenda 10-Port 10/100M Desktop Switch with 8-Port PoE (TEF1110P-8-63W)

8‑port 10/100 Mbps PoE (IEEE 802.3af/at) + 2 data ports, 1.6 Gbps store‑and‑forward switching, 1.48 Mpps, 58 W PoE budget, 10 link/ack LEDs + power LED, desktop/wall mount, 177.5×104×26 mm, CAT5e recommended.

Tenda 10-Port 10/100M Desktop Switch with 8-Port PoE (TEF1110P-8-63W)
  • Switches-Tenda-10-Port-10-100M-Desktop-Switch-with-8-Port-PoE-TEF1110P-8-63W-5
  • Switches-Tenda-10-Port-10-100M-Desktop-Switch-with-8-Port-PoE-TEF1110P-8-63W-2
  • Switches-Tenda-10-Port-10-100M-Desktop-Switch-with-8-Port-PoE-TEF1110P-8-63W-3
$63.0 Question Mark
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    Tenda 10-Port 10/100M Desktop Switch with 8-Port PoE (TEF1110P-8-63W)
  • Model Number:
    TEF1110P-8-63W
  • Brand:
  • Warranty Period:
    3 Year

Description

Switches-Tenda-10-Port-10-100M-Desktop-Switch-with-8-Port-PoE-TEF1110P-8-63W-1



SPECIFICATIONS:

HARDWARE


Network standards

IEEE 802.3/3u/3x, IEEE 802.3af/at

LED Indicator

10* Link/Ack LED indicators

1 * Power LED indicator

Interfaces

8 * 10/100 Base-TX Ethernet ports (Data/Power)

2 * 10/100 Base-TX Ethernet ports (Data)

Transmission media

Recommended: CAT5/5e UTP or better

Dimension

177.5mmx104.0mmx26.0mm

Level of protection

Lightning protection for ports: 6KV

Lightning protection for power: 4KV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

1.6 Gbps

Packet forwarding rate

1.48Mpps

Buffer

448K

MAC address table

1K

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 58W

Input voltage

100240V AC 50/60Hz

51V /1.25A DCPower Adapter

Mounting

Desktop mounting: support

Wall mounting: support

Rack mounting: non-support

Environment

Operating Temperature: 0~45

Storage Temperature: -40~70

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

FCCCERoHS

SOFTWARE


Functions

Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.

Extend Mode: VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps)
