Home > PC Parts > Networking > Switches > Teltonika TSW200 Industrial PoE+ Ethernet Switch 2x SFP Ports 8x PoE+ (TSW200-DIN-RAIL)

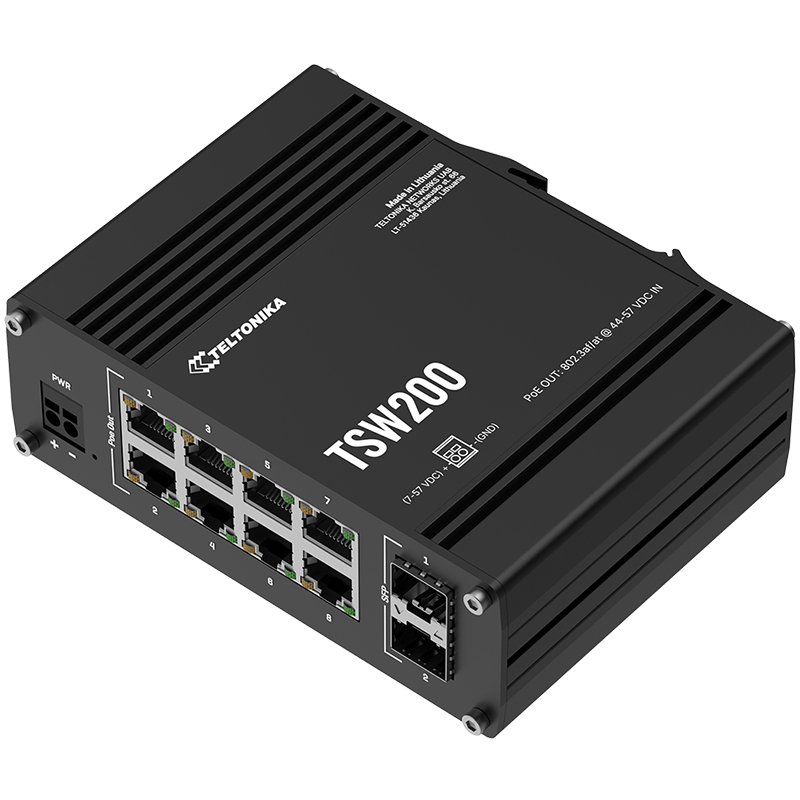

Teltonika TSW200 Industrial PoE+ Ethernet Switch 2x SFP Ports 8x PoE+ (TSW200-DIN-RAIL)

8‑port Gigabit PoE (30 W/port, 240 W budget) + 2 SFP, 20 Gbps non‑blocking, 128 KB buffer, 2 K MAC table, 9216‑byte jumbo frames, Profinet Class A, 7‑57 VDC input, aluminum housing, DIN‑rail mount, IP30, –40 °C‑75 °C.

$179.0

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Delivery: Question Mark

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Buy Now, Pay Later:

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

ETHERNET
ETH	8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre	2 x SFP ports
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS
Profinet	Profinet Class A conformance (available with optional order code)
POE OUT
PoE ports	Port 1 - 8
PoE standards	802.3af and 802.3at Alternative A (From batch 42) 802.3af and 802.3at Alternative B (From batch 1-41)
PoE Max Power per Port (at PSE)	30 W
Total PoE Power Budget (at PSE)	240 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)	20 Gbps
Packer buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
POWER
Connector	2-pin industrial DC power socket
Input voltage range	7 – 57 VDC
PoE-Out input voltage range	44 – 57 VDC
Power consumption	Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W
PHYSICAL INTERFACES
Ethernet	8 x RJ45 ports, 10/100/1000 Mbps
Fibre	2 x SFP ports
Status LEDs	1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
Power	1 x 2-pin industrial DC power socket
Other	1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material	Full aluminum housing
Dimensions (W x H x D)	132 x 44.2 x 95.1 mm
Weight	517 g
Mounting options	Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
OPERATING ENVIRONMENT
Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30
REGULATORY & TYPE APPROVALS
Regulatory	CE, UKCA, CITC, ANRT, FCC, IC, CB
EMC EMISSIONS & IMMUNITY
Standards	EN 55032:2015 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019
ESD	EN 61000-4-2:2009
Radiated Immunity	EN IEC 61000-4-3:2020
EFT	EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017
CS	EN 61000-4-6:2014
DIP	EN IEC 61000-4-11:2020
SAFETY
Standards	IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020

Product Name:

Teltonika TSW200 Industrial PoE+ Ethernet Switch 2x SFP Ports 8x PoE+ (TSW200-DIN-RAIL)
Model Number:

TSW200-DIN-RAIL
Brand:

Teltonika
Warranty Period:

2 Year
