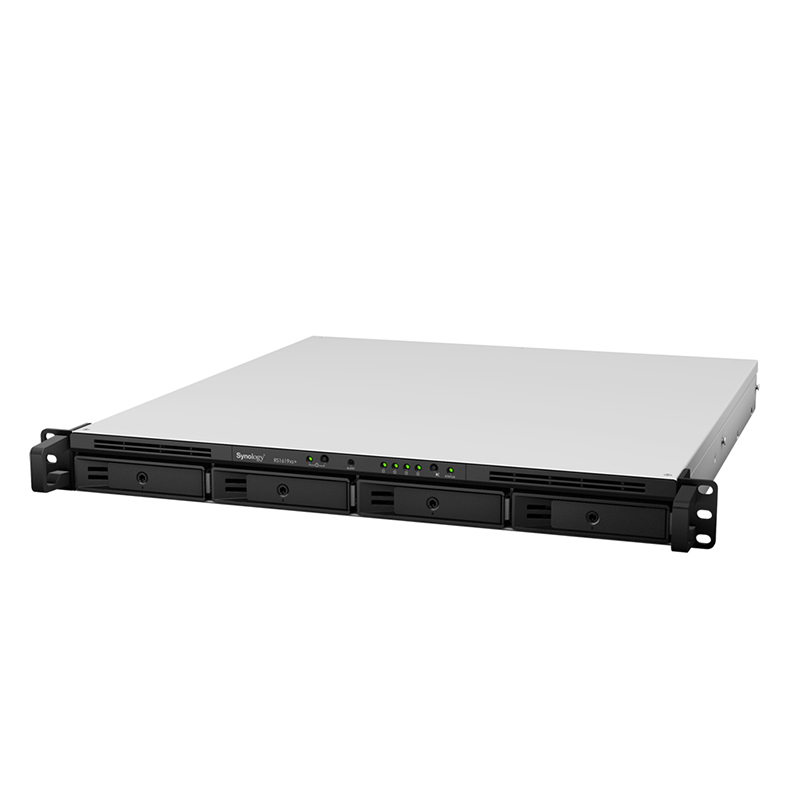

Synology RackStation (RS1619xs+)

Synology RackStation (RS1619xs+)
  • 49161_thumb_P_1546992770002
  • 49161_thumb_P_1546992802507
  • 49161_thumb_P_1546992802421
  • 49161_thumb_P_1546992802113
  • 49161_thumb_P_1546992803234
  • 49161_thumb_P_1546992803678
$3,228.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Synology RackStation (RS1619xs+)
  • Model Number:
    RS1619XS+
  • Brand:
  • Manufacturer Warranty:
    5 Year

Description



Synology RackStation RS1619xs

RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.

Synology RackStation (RS1619xs+)

CPU
CPU ModelIntel Xeon D-1527
CPU Architecture64-bit
CPU FrequencyQuad Core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)YES
Memory
System Memory8 GB DDR4 ECC UDIMM
Memory Module Pre-installed8GB (1 x 8GB)
Total Memory Slots4
Memory Expandable up to64 GB (16 GB x 4)
Storage
Drive Bays4
Maximum Drive Bays with Expansion Unit16
M.2 Drive Slots2 (NVMe & SATA)
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe & SATA SSD
Maximum Internal Raw Capacity56 TB (14 TB drive x 4) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units224 TB (56 TB + 14 TB drive x 12) (Capacity may vary by RAID types)
Maximum Single Volume Size
  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable Drive
Notes
  • "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
  • Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB or 200TB if upgraded to 32GB RAM or more.
External Ports
RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
USB 3.0 Port2
Expansion Port1
PCIe
PCIe Expansion1 x Gen3 x8 slot (x8 link)
Add-in-card supportPCIe Network Interface Card (Learn more)
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
NotesexFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth)44 mm x 480 mm x 518.6 mm
Weight8.16 kg
Others
System Fan40 mm x 40 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System FanYES
Power RecoveryYES
Noise Level*39.3 dB(A)
Scheduled Power On/OffYES
Wake on LAN/WANYES
Power Supply Unit / Adapter2 X 150W
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*68.68 W (Access)
34.78 W (HDD Hibernation)
British Thermal Unit234.35 BTU/hr (Access)
118.67 BTU/hr (HDD Hibernation)
Redundant Power Supply (for xs+ and RP model)YES
Environment Temperature
Operating Temperature5°C to 35°C (40°F to 95°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • VCCI
  • CCC
  • RCM
  • KC
Warranty5 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number1,024
Maximum iSCSI Target Number256
Maximum iSCSI LUN512
iSCSI LUN Clone/Snapshot, Windows ODXYES
SSD Read/Write Cache (White Paper)YES
SSD TRIMYES
RAID GroupYES
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • RAID 5
  • RAID 6
  • JBOD
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
File Services
File ProtocolCIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections2,000
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion)10,000
Windows Access Control List (ACL) IntegrationYES
NFS Kerberos AuthenticationYES
Account & Shared Folder
Maximum Local User Accounts16,000
Maximum Local Groups512
Maximum Shared Folder512
Maximum Shared Folder Sync Tasks32
High Availability ManagerYES
Log CenterYES
Syslog Events per Second3,000
Virtualization
VMware vSphere 6 with VAAIYES
Windows Server 2016YES
Citrix ReadyYES
OpenStackYES
Add-on Packages (learn more about the complete add-on package list)
Antivirus by McAfee (Trial)YES
Central Management SystemYES
ChatYES
Maximum Users4,000
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station ServerYES
Maximum Number of Concurrently Connected Devices2,000
Maximum Number of Concurrently Connected Devices (with RAM expansion)10,000
Maximum Number of Hosted Files (btrfs)1,000,000
Maximum Number of Hosted Files (ext4)1,000,000
Notes
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time.
  • The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Document ViewerYES
Download StationYES
Maximum Concurrent Download Tasks80
exFAT Access (optional)YES
MailPlus / MailPlus ServerYES
Free Email Accounts(Licenses required for additional accounts)
Maximum number of concurrent usersUp to 450
Maximum Server Performance3,363,000 emails per day, approx. 102.6 GB
Notes
  • The CPU and RAM usage were both under 80% when testing the maximum number of concurrent users.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media ServerYES
DLNA ComplianceYES
MomentsYES
Facial recognitionYES
Subject recognitionYES
PetaSpaceYES
Snapshot ReplicationYES
Maximum Snapshots per Shared Folder1024
Maximum of system snapshots65536
Surveillance StationYES
Maximum IP cam (Licenses required)75 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)*2250 FPS @ 720p (1280x720)
1050 FPS @ 1080p (1920×1080)
600 FPS @ 3M (2048x1536)
500 FPS @ 5M (2591x1944)
500 FPS @ 4K (3840x2160)
Total FPS (H.265)*2250 FPS @ 720p (1280x720)
2250 FPS @ 1080p (1920×1080)
2250 FPS @ 3M (2048x1536)
1875 FPS @ 5M (2591x1944)
975 FPS @ 4K (3840x2160)
Total FPS (MJPEG)*900 FPS @ 720p (1280x720)
450 FPS @ 1080p (1920×1080)
280 FPS @ 3M (2048x1536)
200 FPS @ 5M (2591x1944)
NotesSurveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology DriveYES
Recommended Number of Hosted Files3,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Connections for PC Clients1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Exceeding the limits above may result in longer response time in file operations.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology OfficeYES
Maximum Users2,900
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video StationYES
Video TranscodingGroup 1 - Type 1 (See more)
Maximum Transcoding Channel Number1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
Virtual Machine ManagerYES
Recommended Virtual Machine Instances8 (Learn more)
Recommended Virtual DSM Number(Licenses required)8 (including 1 Free License)
Notes
  • Virtual Machine Manager is not supported on hosts running Synology High Availability.
  • The specifications vary depending on system configuration and memory size.
VPN ServerYES
Maximum Connections40
Environment & Packaging
EnvironmentRoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • RAMEC2133DDR4-8G DDR4 ECC UDIMM
  • RAMEC2133DDR4-16G DDR4 ECC UDIMM
  • Expansion Unit: RX1217/RX1217RP X 1
  • VS360HD
  • VS960HD
  • Synology Rail Kit Sliding - RKS1317
  • Synology Rail Kit Mounted - RKM114
  • Synology Ethernet Adapter E10G18-T1
  • Synology Ethernet Adapter E10G18-T2
  • Synology Ethernet Adapter E10G17-F2
