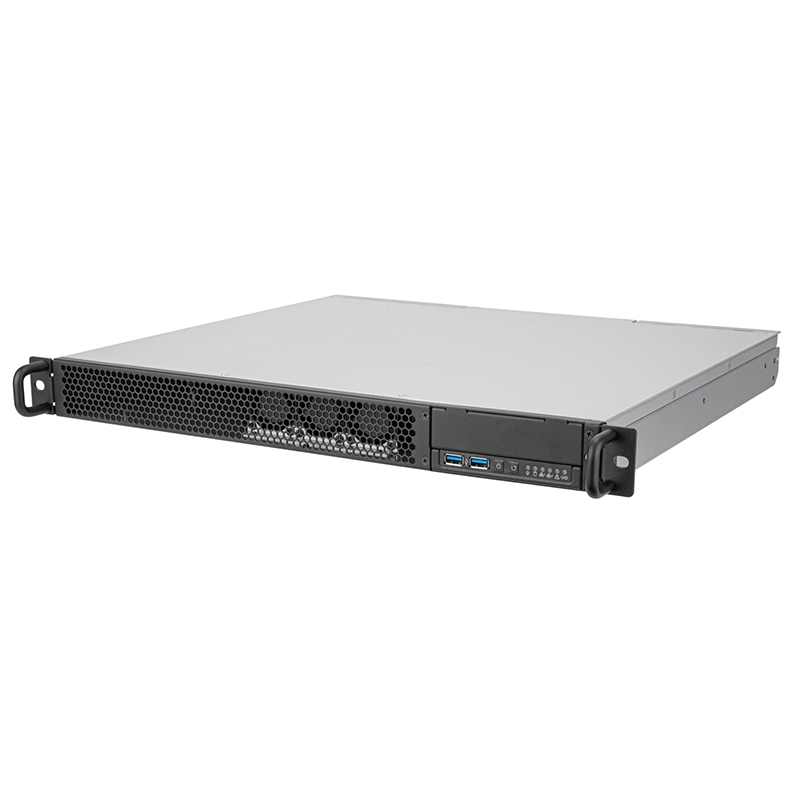

SilverStone RM100 1U Rackmount Server Chassis with ATX Motherboard Support and Reversible I/O Module Design (SST-RM100)

1U steel rackmount chassis supporting ATX/Micro‑ATX/Mini‑ITX (≤36mm), 3.5" x1 & 2.5" x2 drives, PCI/PCIe slot (≤270mm, up to 355mm with bracket removal), 40mm x3 front fans, redundant 1U PSU (≤180mm), USB 3.0 x2, LED status indicators.

SilverStone RM100 1U Rackmount Server Chassis with ATX Motherboard Support and Reversible I/O Module Design (SST-RM100)
  • Silverstone-Cases-SilverStone-RM100-1U-Rackmount-Server-Chassis-with-ATX-Motherboard-Support-and-Reversible-I-O-Module-Design-SST-RM100-8
  • Silverstone-Cases-SilveStone-RM100-1U-Rackmount-Server-Chassis-with-ATX-Motherboard-Support-and-Reversible-I-O-Module-Design-SST-RM100-2
  • Silverstone-Cases-SilveStone-RM100-1U-Rackmount-Server-Chassis-with-ATX-Motherboard-Support-and-Reversible-I-O-Module-Design-SST-RM100-3
  • Silverstone-Cases-SilveStone-RM100-1U-Rackmount-Server-Chassis-with-ATX-Motherboard-Support-and-Reversible-I-O-Module-Design-SST-RM100-4
  • Silverstone-Cases-SilveStone-RM100-1U-Rackmount-Server-Chassis-with-ATX-Motherboard-Support-and-Reversible-I-O-Module-Design-SST-RM100-5
  • Silverstone-Cases-SilveStone-RM100-1U-Rackmount-Server-Chassis-with-ATX-Motherboard-Support-and-Reversible-I-O-Module-Design-SST-RM100-6
$179.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Silverstone-Cases-SilveStone-RM100-1U-Rackmount-Server-Chassis-with-ATX-Motherboard-Support-and-Reversible-I-O-Module-Design-SST-RM100-1




SPECIFICATIONS:

Chassis Form Factor

1U

Material

Steel

Motherboard

ATX, Micro-ATX, Mini-ITX
*Due to 1U height limitations, the total height of the motherboard including PCB must be under 36mm.

Drive bay

Internal:

3.5" x1

2.5" x2

Cooling system

Front: 40mm x 3 (40mm x 3 fan included)

Limitation of CPU cooler

27mm

Expansion slot

Standard PCI / PCIe slots x1

Limitation of expansion card

Length: 270mm (Removal of 2.5" drive bracket allows GPU length up to 355mm)

Width: 114mm

Power supply

1U Redundant / Flex PSU

Limitation of PSU

180mm (Removal of 3.5" drive cage allows PSU length up to 300mm)

Front I/O port

USB 3.0 x 2

LED Indicators

Power LED x 1: Blue

HDD Access x 1: White

LAN LED x 2: Green

Sys Error : Red

UID x 1:White

Dimension

438mm (W) x 44mm (H) x 394mm (D), 7.60 Liters

17.24" (W) × 1.73" (H) × 15.51" (D)

Net weight

3.68 kg




  • Product Name:
    SilverStone RM100 1U Rackmount Server Chassis with ATX Motherboard Support and Reversible I/O Module Design (SST-RM100)
  • Model Number:
    SST-RM100
  • Brand:
  • Warranty Period:
    1 Year
