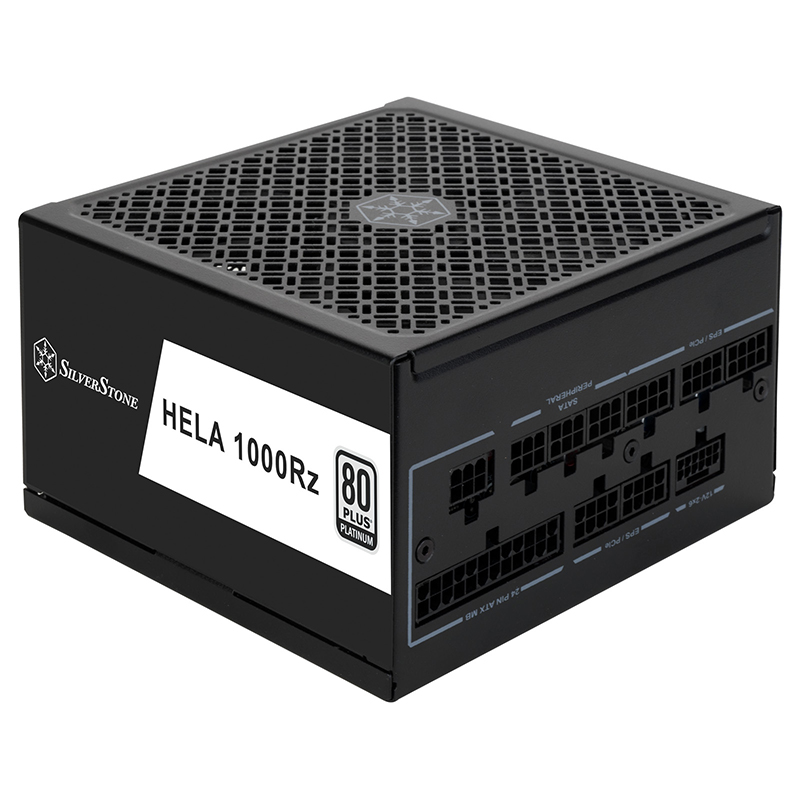

SilverStone HELA 1000Rz 1000W 80+ Platinum ATX 3.1 and PCIe 5 Fully Modular ATX Power Supply (SST-HA1000R-PM)

1000W ATX PSU in black, 80 PLUS Platinum (89‑92% efficiency), active PFC (PF>0.9), 553.5 W/L power density, 135 mm FDB fan at 18 dBA, 5×PCIe, 8×SATA, 2×8‑pin EPS, 1×24‑pin, 110 W +3.3/5V, 999.6 W +12V, full over‑/short‑circuit protection.

SilverStone HELA 1000Rz 1000W 80+ Platinum ATX 3.1 and PCIe 5 Fully Modular ATX Power Supply (SST-HA1000R-PM)
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-11
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-4
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-3
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-5
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-7
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-6
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-8
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-9
$239.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    QLD Pickup
    • Chermside New 2-3 Hours
    • Southport Next Business Day
    • Hillcrest Icon 3 2-3 Hours
    • Brendale 3-4 Hours
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 In Stock
    • West Ryde 1-2 Days
    • Ultimo 1-2 Days
    • Auburn 1-2 Days
    • Annandale 1-2 Days
    • Crows Nest New 1-3 Days
    • Carlingford New 1-3 Days
    • Hurstville New 1-3 Days
    • Mosman New 1-3 Days
    • Parramatta New 1-3 Days
    • Goulburn New 2-3 Days
    VIC Pickup & Post
    • Post In Stock
    • Mulgrave Robot Super StoreIcon 3 In Stock
    • Mitcham 2-3 Days
    • Essendon 2-3 Days
    • Dandenong South Icon 3 In Stock
    ACT Pickup
    • Fyshwick 2-3 Days
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 In Stock
    • Holden Hill 4-6 business days
    • Adelaide CBD Icon 3 4-6 business days
    WA Pickup & Post
    • Post In Stock
    • Belmont Robot Super StoreIcon 3 In Stock
    • Balcatta 8-10 business days
    TAS Post
    • Post In Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-1
Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-2



SPECIFICATIONS:

Color

Black (lead-free paint)

Max. DC Output

1000W

Power density

553.5 W/L

Combined +3.3V & +5V

110W

Combined +12V

999.6W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

89% ~ 92% (at 20% ~ 100% loading)

MTBF

100,000   hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection

Over current protection

Over voltage protection

Short circuit protection

Over Temperature protection

Connectors

1 x 24/20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

1 x 12+4-Pin 12V-2x6 connector

5 x 8 / 6-Pin PCIe connectors

8 x SATA connector

4 x 4-Pin Peripheral connector

Cooling System

Single 135mm FDB fan

Noise Level

18 dBA min.

Certification

80 PLUS Platinum

Form factor

ATX

Dimension

150mm (W) x 86mm (H) x 140mm (D)

Other

GPU Support list

Note

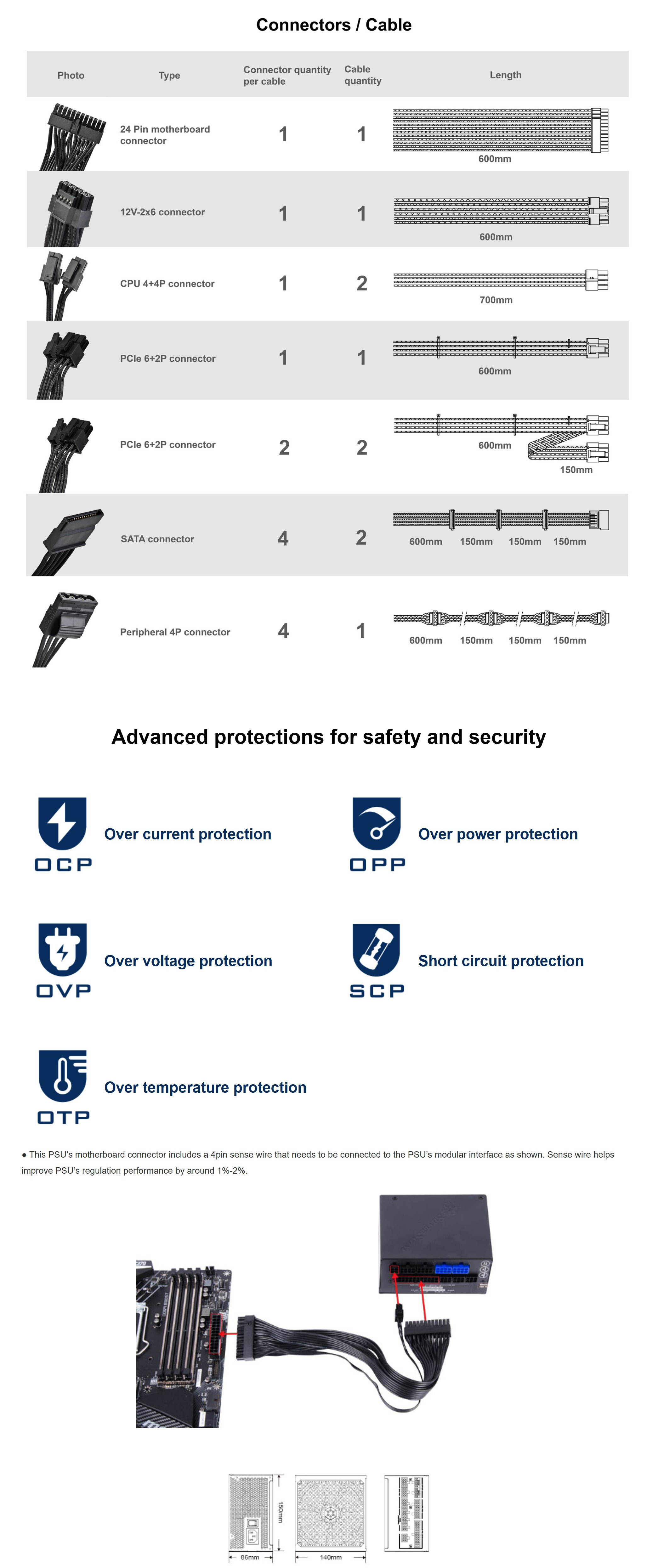

This PSU’s motherboard connector includes a 4pin sense wire that needs to be   connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.




  • Product Name:
    SilverStone HELA 1000Rz 1000W 80+ Platinum ATX 3.1 and PCIe 5 Fully Modular ATX Power Supply (SST-HA1000R-PM)
  • Model Number:
    SST-HA1000R-PM
  • Brand:
    SilverStone SilverStone
  • Warranty Period:
    5 Year
