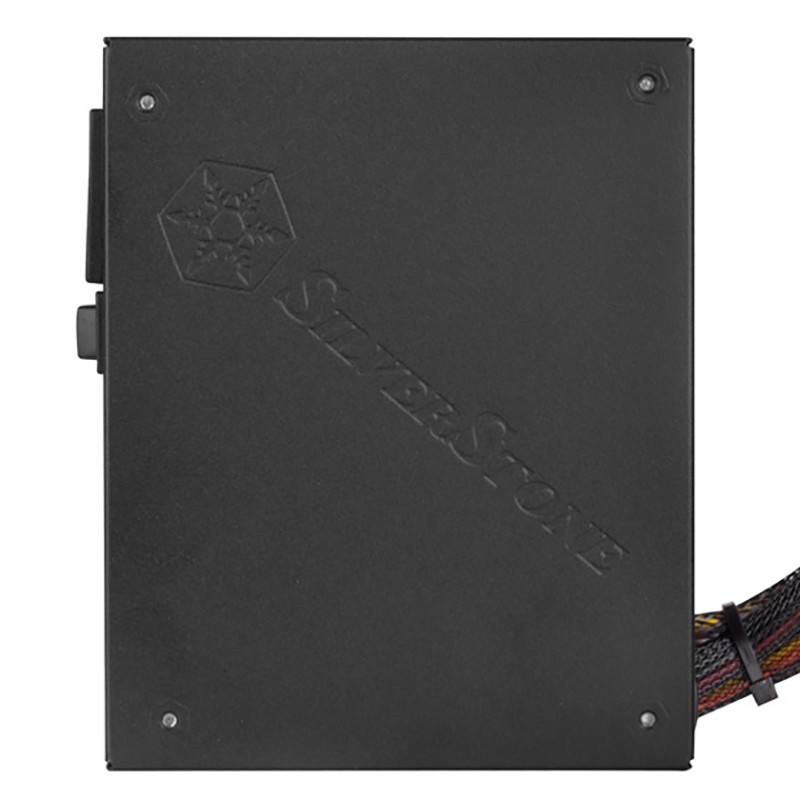

SilverStone 450w 80+ Bronze SFX Power Supply (SST-ST45SF V3.0)

SilverStone 450w 80+ Bronze SFX Power Supply (SST-ST45SF V3.0)
  • 53762_thumb_P_1578530448677
  • 53762_thumb_P_1578530449142
  • 53762_thumb_P_1578530450949
  • 53762_thumb_P_1578530450948
  • 53762_thumb_P_1578530451503
  • 53762_thumb_P_1578532568950
$99.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup
    • Chermside New Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Icon 3 Out Of Stock
    • Brendale Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Crows Nest New Out Of Stock
    • Carlingford New Out Of Stock
    • Hurstville New Out Of Stock
    • Mosman New Out Of Stock
    • Parramatta New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SilverStone 450w 80+ Bronze Power Supply (SST-ST45SF V3.0)


Supports standard SFX form factor and ATX via included bracket

450W continuous power output at 50? temperature rated for 24/7 operation (V2.0)

450W continuous power output at 40? temperature rated for 24/7 operation (V3.0)

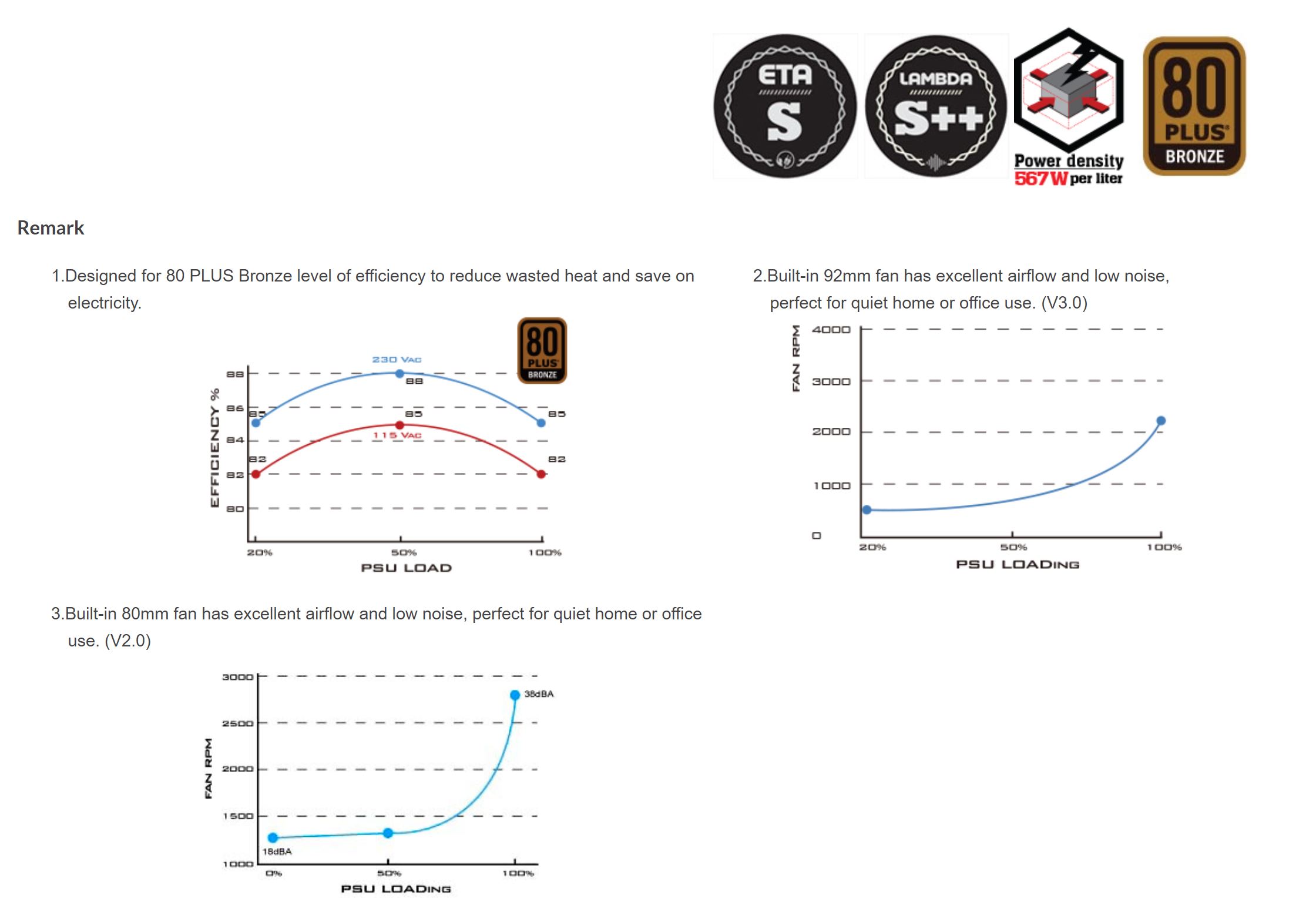

80 PLUS Bronze level efficiency (82%~85% efficiency at 20%~100% loading)

Class-leading single +12V rail with 36A

Silent running 80mm fan (V2.0)

Silent running 92mm fan (V3.0)

Single PCI-E 8pin and dual PCI-E 6pin connectors support

Active PFC

SPECIFICATIONS:

Color

Black Lead-Free Paint

Combined +3.3V   & +5V

110W (V3.0)

120W (V2.0)

Combined +12V

450W / 37.5A   (V3.0)

432W / 36A (V2.0)

Input Voltage

90 ~ 264 Vrms

Input Frequency   Range

47Hz ~ 63Hz

PFC

Active PFC. PF>0.9 at Full Load

Efficiency

82%~85% 20% to 100% loading

MTBF

100,000 hours

Operating   temperature

0 ~ 40 (V3.0)

10°C ~ 50°C   (V2.0)

Protection

Over current   protection

Over voltage   protection

Short circuit   protection

Over power   protection (V3.0 only)

Under voltage   protection (V3.0 only)

Connectors

1 x 24 / 20-Pin   motherboard connector 300mm

1 x 8 / 4-Pin EPS   / ATX 12V connector 400mm

1 x 8/6-Pin PCIE   connector 400mm

1 x 6-Pin PCIE   connector 400mm / 150mm

3 x SATA   connector 300mm / 200mm / 100mm

2 x 4-Pin   Peripheral connector  300mm / 200mm

1 x 4-Pin Floppy   connector 300mm / 200mm / 200mm

Cooling System

Single 92mm   silent fan (V3.0)

Single 80mm   silent fan (V2.0)

Form factor

SFX

Noise Level

18dBA minimum

Dimension

125 mm (W) x 63.5   mm(H) x 100 mm(D)

4.92" (W) x   2.5" (H) x 3.94" (D)

Weight

1.1 kg (V3.0)

1 kg (V2.0)

Other

Includes SFX to   ATX bracket for use in ATX case

GPU Support list

Compatible with   ATX12V v2.4



+3.3V

+5V

+12V

+5VSB

-12V

Max.(Amps)

20A

20A

37.5A

3A

0.3A

Peak (Amps)

/

/

/

/

/

Min.(Amps)

0A

0A

0.3A

0A

0A

Range (%)

±5%

±5%

±5%

±5%

±10%

Line Reg.(%)

±1%

±1%

±1%

±1%

±1%

Ripple(mVp-p)

50mA

50mA

120mV

50mV

120mV



 +3.3V

 +5V

 +12V

 +5VSB

 -12V

Max.(Amps)

 21A

 22A

 36A

 2.5A

 0.5A

Peak (Amps)

 /

 /

 /

 /

 /

Min.(Amps)

 0.1A

 0.2A

 0.6A

 0A

 0A

Range (%)

 Â±5%

 Â±5%

 Â±5%

 Â±5%

 Â±10%

Line Reg.(%)

 Â±1%

 Â±1%

 Â±1%

 Â±1%

 Â±1%

Ripple(mVp-p)

 70mA

 70mA

 140mV

 70mV

 140mV


  • Product Name:
    SilverStone 450w 80+ Bronze SFX Power Supply (SST-ST45SF V3.0)
  • Model Number:
    SST-ST45SF V3.0
  • Brand:
    SilverStone SilverStone
  • Warranty Period:
    3 Year
