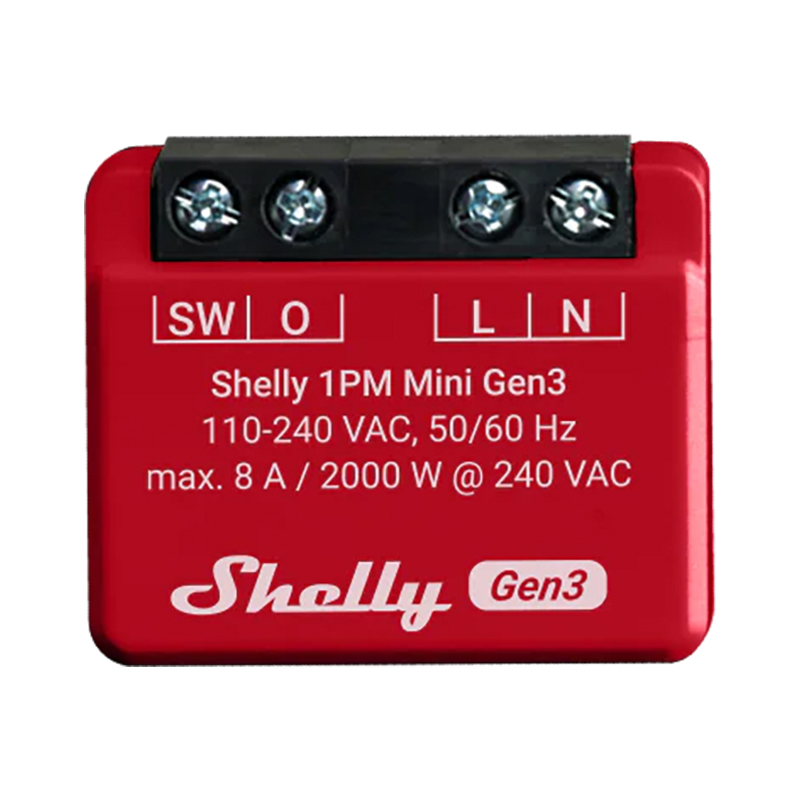

Shelly 1PM Mini Gen3 Wi-Fi Relay Switch (SH-SHELLY1PM-M)

Name: Shelly 1PM Mini Gen3 Wi-Fi Relay Switch (SH-SHELLY1PM-M)
Brand: Shelly
SKU: 95683
Price: 25.00 AUD
Availability: OutOfStock

Compact 29×34×16 mm, 18 g smart relay (8 A/240 V, 2000 W) with power measurement, voltage/current cutoff, internal temp sensor. Wi‑Fi (802.11 b/g/n, 30 m indoor), Bluetooth 4.2 (10 m), MQTT, scripting, 20 schedules, webhooks.

$25.00

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Delivery: Question Mark

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

PHYSICAL
Size (HxWxD)	29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 in
Weight	18 ±1 g / 0.63 ±0.04 oz
Screw terminals max torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in
Mounting	Wall box
Shell material	Plastic
Shell color	Red, C-3%; M-100%; Y-70%; K-12%
Terminal Color	Black
ENVIRONMENTAL
Ambient working temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
ELECTRICAL
Power supply	110 - 240 VAC
Relay	NO contact, 1-pole, µ contact
Power consumption	< 1.2 W
External protection	Tripping characteristic B or C, 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
OUTPUT CIRCUITS RATINGS
Max. switching voltage	240 VAC
Max. switching current	8A/240 VAC
Max. switching power	2000 W
Power measurement	Yes
Voltage protection / Cutoff	Yes
Current protection / Cutoff	Yes
Max power protection / Cutoff	Yes
SENSORS, METERS
Internal-temperature sensor	Yes
RADIO
WI-FI
Protocol	802.11 b/g/n
RF band	2401 - 2495 МHz
Max. RF power	< 20 dBm
Range	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
BLUETOOTH
Protocol	4.2
RF band	2400 - 2483.5 MHz
Max. RF power	< 4 dBm
Range	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MICROCONTROLLER UNIT
CPU	ESP-Shelly-C38F
Flash	8 MB
FIRMWARE CAPABILITIES
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes
UDP	Yes
Advanced schedules	Yes
KVS (Key-Value Store)	Yes

Product Name:

Shelly 1PM Mini Gen3 Wi-Fi Relay Switch (SH-SHELLY1PM-M)
Model Number:

SH-SHELLY1PM-M
Brand:

Shelly
Warranty Period:

3 Year
