SeaSonic 650W Prime Ultra Titanium Modular Power Supply (SSR-650TR)

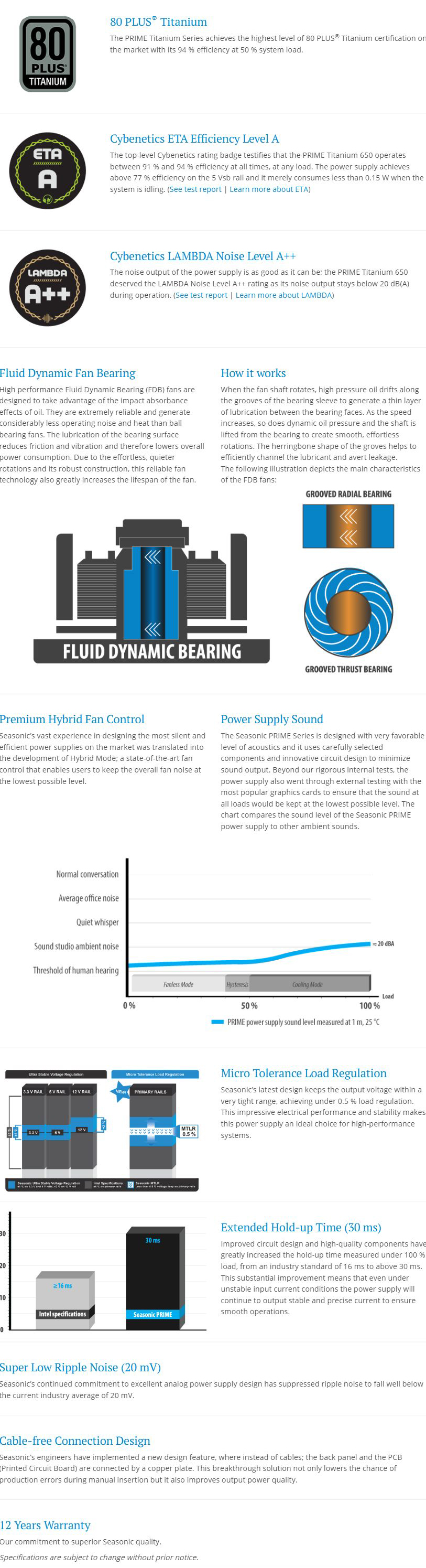

Amazing Micro Tolerance Load Regulation technology ensures that the Seasonic PRIME 650 Titanium power supply will produce clean power at all times. Should there ever be a problem with the AC input power, this unitās prolonged hold-up time will give ample buffer to prevent instabilities or, in case of a power shortage, it will allow the operating system save and store essential user data. Seasonicās latest fan control design allows this unit to operate in fanless mode up to 45 % system load, to delight customers who are looking for a quiet power supply for their everyday usage.
| Technical Specifications |
|---|
| 80PLUSĀ® | Titanium | | Form Factor | Intel ATX 12 V | | Dimensions | 150 mm (W) x 170 mm (L) x 86 mm (H) | | Fan Information | Fan Size | 135 mm | | Fan Control | Premium Hybrid Fan Control | | Fan Bearing | Fluid Dynamic Bearing | | Life Expectancy | 50,000 hours at 40 Ā°C, 15 % - 65 % RH | | Cable Information | Modularity | Fully Modular | | Cable type | Flat black cables | | Electrical Features | Operating Temperature | 0 - 50 Ā°C | | MTBF @ 25 Ā°C, excl. fan | 150,000 hours | | AC Input | Full Range | | Protection | OPP, OVP, UVP, OCP, OTP, SCP | | Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC | | Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | | Warranty | 12 Years |
| Power Output |
|---|
| AC Input | Voltage: 100 V - 240 V | | Current: 8.5- 4 A | | Frequency: 50 Hz - 60 Hz | | DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB | | Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 3 A | | 100 W | 648 W | 3.6 W | 15 W | | Total continuous power | 650 W |
Specifications may change without prior notice.
|
