  • Product Name:
    SeaSonic 350W Active PFC F0 1U Power Supply (SS-350M1U)
  • Model Number:
  • Brand:
  • Manufacturer Warranty:
    5 Year

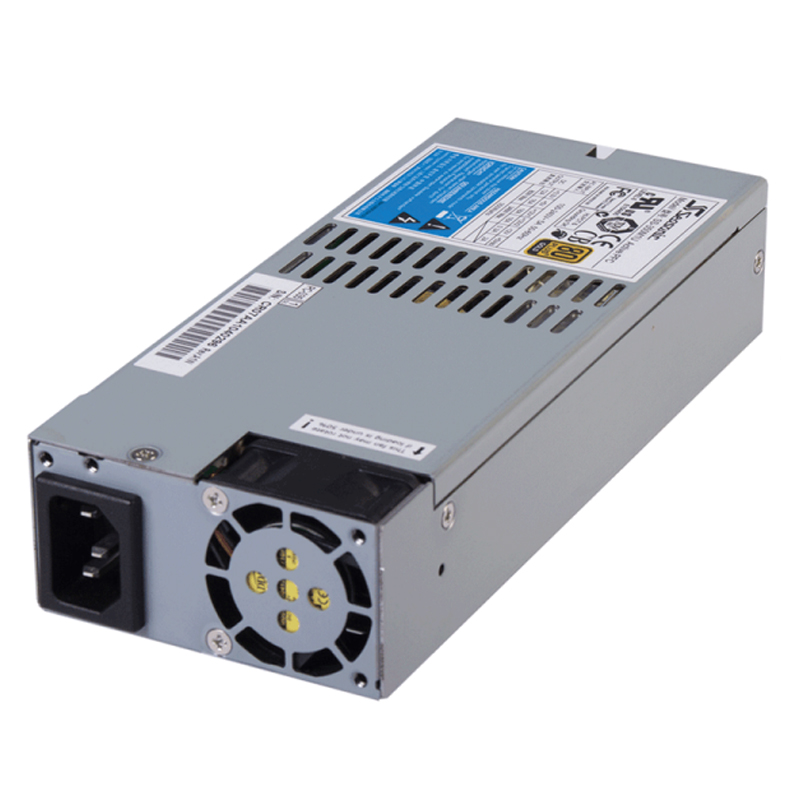

SeaSonic 350W Active PFC F0 1U Power Supply (SS-350M1U)

This is a Seasonic industrial power supply meeting important EMI, EMC and safety standards. This unit is ATX 12 V v.2.31 and EPS 12 V compliant with DC to DC converter design and important protection features. It features Active PFC (Power Factor Correction) circuit design and is 80 PLUS® Gold efficiency rated, meaning that at 115 V AC input the unit can achieve up to 90 % efficiency at 50 % load. This industrial power supply is built with quality and reliability in mind.

SeaSonic 350W Active PFC F0 1U Power Supply (SS-350M1U)

  • Intel ATX 12 V v2.31 and EPS 12 V compliant

  • 80 PLUS® Gold certification (up to 90 % efficiency at 115 V AC and 50 % load)

  • Supports the latest Intel and AMD platforms

  • DC to DC converter design

  • High efficiency and reliability

  • 40 mm double ball bearing fan

  • Super low noise fan control

  • Short circuit protection on all outputs

  • Over voltage protection

  • Over power protection

  • 100 % HiPot test

  • 100 % Burn-in, high temperature cycled on/of

DC Outputs
+3.3 V+5 V+12 V Combined-12 V+5 VsbTotal continuous powerInput Type
12 A16 A29 A0.3 A2 A350 WFull range
80 W (max.)348 W (max.)3.6 W10 W
Input frequency50 / 60 Hz
Efficiency (at normal input voltage)> 87 %
Line regulation± 1 % (typical)
Load regulation± 5 % (typical)
Cross regulation± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan)> 100,000 hours
Active Power Factor Correction99 % (typical)
