QNAP TVS-473e-8G 4 Bay Diskless NAS, AMD RX-421ND 2.1-3.4 GHz, 8G

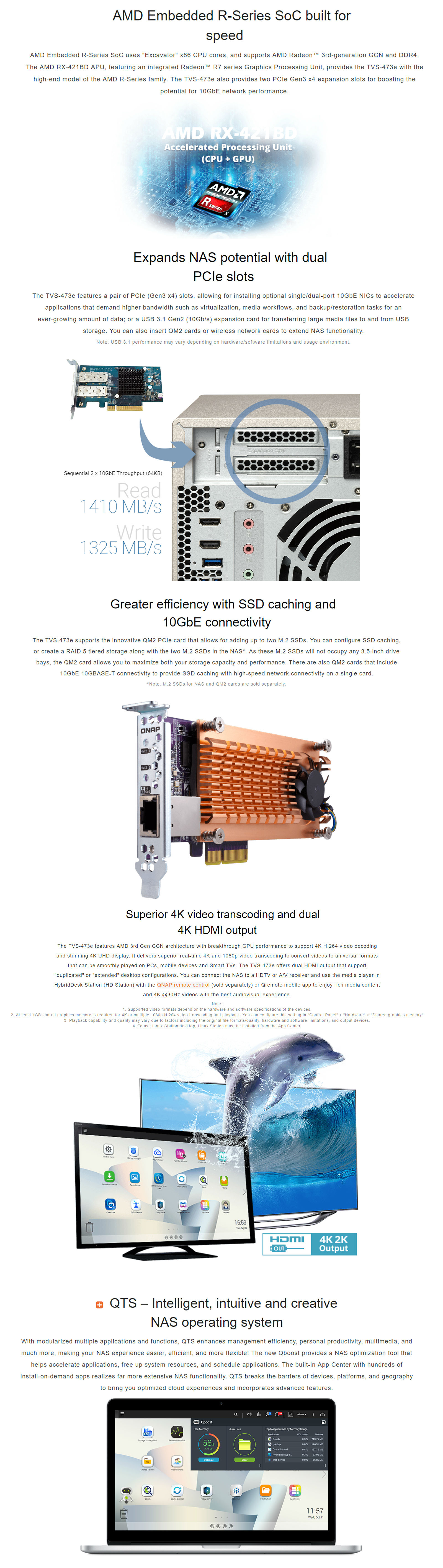

The TVS-473e is powered by a high-end AMD R-Series APU that incorporates an exceptional CPU with AMD Radeonâ„¢ R7 Graphics performance, delivering a high-performance and energy-efficient NAS solution. Built with a state-of-the-art metal design and topped off with a stylish gold finish, the highly-capable TVS-473e provides PCIe expandability, the unique USB QuickAccess port, HDMI 4K@ 30Hz output, and 4K H.264 video decoding and encoding acceleration for an optimum audiovisual experience.
Specifications
CPU | Processor: AMD R-Series RX-421BD quad-core 2.1 GHz processor, Turbo Core up to 3.4 GHz Architecture: 64-bit Graphics: Embedded Radeon™ R7 graphics processor Encryption Engine: AES-NI | System Memory | 8 GB DDR4 (2 x 4 GB) | Maximum Memory | 64 GB (4 x 16 GB) | Memory Slot | 4 x SODIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) | Flash Memory | 512MB DOM | Drive Bay | 4 x SATA 6 Gbps | Drive Compatibility | • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid state drives | M.2 SSD Slot | 2 x M.2 2260/2280 SATA 6Gb/s SSDs Note: 1. The M.2 SSD is not included as standard. 2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. | SSD Cache Acceleration Support | • Drive bays 1 to 4 • M.2 slots 1 to 2 • Optional: SSD using PCIe expansion slot | Hot-swappable | Yes The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. | Gigabit Ethernet Port | 4 x RJ45 | USB QuickAccess Port | USB Micro-B | PCIe Slot | 2 x PCIe 3.0 x4 Note: Support 10GbE LAN card, USB 3.1 Gen2 (10Gb/s) expansion card, QM2 card, or PCIe wireless network card. | USB Port | 4 x USB 3.0 (Front: 1; Back: 3) | HDMI Output | 2 x HDMI 1.4b (up to 3840 x 2160 resolution at 30 Hz) | Audio | • 2 x 3.5 mm dynamic microphone jacks • 1 x 3.5 mm line-out jack • 2 x speakers Note: You cannot use the speakers and the line-out jack simultaneously. | Display Panel | Monochrome backlit LCD display with Enter and Select buttons | USB One Touch Copy | Front: USB 3.0 | IR sensor | QNAP RM-IR004 remote control (MCE compatible) | Form Factor | Tower | Dimensions (H x W x D) | 188.2 x 199.3 x 279.6 mm 7.41 x 7.85 x 11.01 inch | Net Weight | 4.9 kg (10.80 lbs) | Power Supply Unit | ATX 250W, 100-240V AC, 50/60Hz | Fan | System: 1 x 120 mm CPU: 1 x 60 mm | Operating Temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | Security Slot | Kensington security slot |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting. * Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice. Operating System | QTS 4.3 (embedded Linux) | Supported Client Operating Systems | - Apple Mac OS 10.7 or later
- Linux and UNIX
- Microsoft Windows 7, 8, and 10
- Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016
| Supported Browsers | - Apple Safari 7 or later
- Google Chrome
- Microsoft Internet Explorer 10 or later
- Mozilla Firefox
| Supported Languages | Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish | Supported File Systems | - Internal hard drive (EXT4)
- External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)
Note: You can purchase exFAT driver licenses on the License Center.
| Networking | - TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame (failover, multi-IP settings, port trunking, and NIC teaming)
- Service binding based on network interfaces
- Squid web caching proxy
| Network & Virtual Switch | - TCP/IP: Dual stack (IPv4 and IPv6)
- Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
- DHCP server and client
- USB Wi-Fi adapter
Note: This feature does not support ad hoc networks because of safety considerations.
| Security | - Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
- Host access control for shared folders (CIFS/SMB)
- AES 256-bit volume-based and shared folder data encryption
- 256-bit external drive encryption (AES)
| Storage Management | - Storage space utilization monitoring
- Flexible volumes and LUNs with thin provisioning and space reclaiming
- Disk volume types: RAID 0,1, 5, 6, 10, single, JBOD
- RAID hot spare and global hot spare
| iSCSI (IP SAN) | - iSCSI targets with multiple LUNs
Note: The maximum total number of targets is 256. - LUN mapping and masking
- Online LUN capacity expansion
- SPC-3 persistent reservation
| Power Management | - Wake on LAN
- Standby mode for internal drives
- Scheduled power on and off
- Automatic power on after power recovery
| Access Rights Management | - Multiple user creation
- User data importing and exporting
- User quota management
- Local user access control (AFP, CIFS/SMB, FTP, and WebDAV)
| Domain Authentication | - Microsoft Active Directory (AD) and domain controller
- LDAP server and client
- Domain user login (AFP, CIFS/SMB, FTP, and File Station)
| myQNAPcloud | - Free host name registration (DDNS)
- Optional myQNAPcloud SSL certificates (DDNS)
- Auto router configuration through UPnP
- Web-based file manager with HTTPS 2048-bit encryption
| Qsync | - File syncing across multiple devices with SSL secure connection
- Selective synchronization for specific folders or subfolders
- Team folders as file center for better collaboration
Note: The maximum number of sync tasks is 32. - File sharing through email links
| Resource Monitor | - Monitoring of NAS system resources such as CPU, memory and network
- Monitoring of NAS storage resources such as volumes, RAID, and disk activity
- Monitoring of resource usage by NAS applications
- Creation of extra swap space when SSDs are installed
| Helpdesk | - Reporting of issues to the QNAP support team, including automatic collection of system information
- Remote connection between QNAP support engineers and NAS for issue resolution (with user permission)
| Web Administration | - Smart toolbar and dashboard for system status display
- Dynamic DNS (DDNS)
- SNMP versions 2 and 3
- Resource monitor
| File Server | - File sharing across Windows, Mac, and Linux/UNIX
- Microsoft networking
- Windows ACL
- Advanced folder permissions (AFP, CIFS/SMB, and FTP)
| FTP Server | - FTP over SSL/TLS (explicit)
- FXP support
| File Station | - Cloud drive mounting for Google Drive, Dropbox, Microsoft OneDrive, Microsoft OneDrive for Business, HiDrive, Amazon Cloud Drive, Yandex Disk and Box
- Remote shared folder mounting (CIFS/SMB, FTP, and WebDAV)
- Document viewing using Office Online, Google Docs, and Chrome extension
- Microsoft Office file editing using Google Docs, Sheets, and Slides
| Qfiling | - Auto filing
- Recipe function
- Archiving through iSCSI, USB, DVD and remote NAS
- Advanced settings
| Transcode Management | - Video transcoding (240p, 360p, 480p, 720p and 1080p resolution)
- Automatic video transcoding for watched folders
- Hardware-accelerated transcoding
- Embed subtitles into videos for background transcoding
| Hybrid Backup Sync | - Cloud storage backup to Amazon S3, Amazon Glacier, Microsoft Azure, Google Cloud Storage, Openstack Swift, WebDAV, and HKBN
- Cloud storage syncing with Microsoft OneDrive, Google Drive, Dropbox, Amazon Drive, Yandex Disk, Box, hubiC, BackBlaze B2, Amazon S3, and HiDrive
- RTRR server & client with bandwidth control
- Rsync server with download bandwidth control
| Photo Station | - Photo organization by thumbnail, list, timeline, or folder
- Virtual and smart albums
- Validity control for album sharing
- Photo tagging with text, colors, and ratings
| Music Station | - Music playing and sharing through web browsers
- Music streaming to multiple devices
- Changing of album covers through Google search or by uploading photos
- Internet radio (MP3)
| iTunes Server | Audio and video sharing for Windows & Mac iTunes | Video Station | - Video organization by thumbnails, list, timeline, or folder
- Virtual and smart collections
- Video tagging with text, colors, and ratings
- Video link sharing through social media and email
| Virtualization Station | - Virtual machine creation (Windows, Linux, Unix, and Android)
- Virtual machine importing, exporting, cloning, snapshot capturing, backup, and restoration
- Console display using HDMI output (QVM)
- HTML5-based shared remote console
| Container Station | - Support for LXC and Docker
Note: Docker containers support Bridge, NAT, and Host mode. Linux containers (LXC) support only NAT. - Application downloading from the built-in Docker Hub Registry
- One-click installation
- Container importing and exporting
| Qsirch | - Full-text search
- Data distribution using a bar chart
- Previews for photos, music, videos, PDFs, Gmail, and others
- Advanced search operators and search scope
| Surveillance Station | - Support for over 3,000 IP cameras
- 4 free camera licenses
Note: The application supports a maximum of 72 camera channels. You can purchase additional licenses on the QNAP website. - Instant playback for checking of recent events
- Visual aid using e-map
| QVPN Service | - QVPN combines an integrated VPN Server, a VPN client, and L2TP/IPSec VPN services.
- VPN server
- Secure remote access with PPTP, L2TP/IPSec, and OpenVPN services
- Support for a maximum of 100 clients
| DLNA Server | - Support for DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One
- Support for CUE indexing file for APE and FLAC
| Q’center (NAS CMS) | - Monitoring of multiple NAS devices
- Utilization history reports
- Unified configuration management
- Monitoring of NAS devices behind NAT routers with Connect to Q’center
Note: The application is available in the App Center and in virtual appliance marketplace (VMware vSphere ESXi and Microsoft Hyper-V).
| OceanKTV | - YouTube video streaming
- Sorting by artist, language, and favorites
- Effects such as tuning echo, key, and applause
- Playlist control with a mobile application
| Qfinder Pro | - QNAP NAS location on the same local network
- NAS shared folders mounting
- Basic setting configuration (firmware, SMTP server, and network settings)
- Direct connection with USB QuickAccess
| App Center | - Official and community software add-ons
- Automatic updates and notifications for new versions
- Repository for imported third-party content
- User-specified volume for storing applications
| AirPlay & Chromecast | - Video, photo and music streaming to Apple TV or Chromecast using the following:
- NAS applications: File Station, Music Station, Photo Station, and Video Station
- Mobile applications: Qfile, Qmusic, Qphoto, and Qvideo
Note: You must install the Media Streaming add-on app from the QTS App Center. | Download Station | - PC-less downloads (BitTorrent, FlashGet, FTP/FTPS, HTTP/HTTPS, QQDL, and Thunder)
Note: - The application supports a maximum of 500 tasks
- The maximum number of concurrent downloads is: 90 (30 BT/PT, 30 HTTP, 30 FTP)
- BitTorrent: Support for search, magnet links, private trackers, and proxy
| Notes Station 3 | - Multi-user text editing using the collaborative editor
- Table creation using the spreadsheet editor
- Online quick preview of multimedia attachments
- Smart snapshot for version control
| HD (HybridDesk) Station 3.13 | - Photo, video, and music playback on TV through HDMI
- Support for Chrome and Firefox
- Support for international keyboards and mouse input
- User login permissions
Note: The decoding capability of the CPU and graphics card may affect playback of some video files.
| Linux Station | - Ubuntu and Kylin installation and usage of the NAS as a Linux-based computer
- Application downloading and usage from the Ubuntu Software Center
- Remote desktop for remote monitoring and accessing of Ubuntu
Note: The application requires at least 4 GB of memory and installation of Container Station.
| Qcontactz | - One-way scheduled sync of contacts from multiple Google accounts
- Contact importing from CSV or vCard 3.0 files
- Contact exporting to CSV or vCard 3.0 files
- Duplicate contact searching and merging
| IFTTT Agent | - Daily task automation
- Social media data archiving
- File synchronization between the NAS and various cloud services
- System event notifications on Line, Skype, Gmail, and mobile phones
| General Notes | - Designs and specifications are subject to change without notice.
- Some features may vary by model.
- QTS does not support DRM content, Dolby, DTS, and some IPv6 services.
- Some data encryption features may be unavailable because of country-specific legislative restrictions.
|
|
