CUDA® Cores

21,760

Boost Speed

2625 MHz

Memory Speed (Gbps)

28

Memory Size

32GB GDDR7

Memory Interface

512-bit

Memory Bandwidth (GB/sec)

1792

TDP

600 W

NVLink

Not Supported

Outputs

DisplayPort 2.1b (x3), HDMI® 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC*

* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz

Power Input

16-pin (One 16-pin to Four 8-pin)

Bus Type

PCI-Express 5.0 x16

Card Dimensions

12.94" x 5.42" x 2.8"; 3.5 Slot

System Requirements

PCI Express-compliant motherboard with one 3.5-width x16 graphics slot

Four 8-pin supplementary power connectors

Total graphics power 575 W

Required system power 1000 W*

Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit

Internet connection*

* Power requirements can be different depending on system configuration.

* Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.

Package Contents

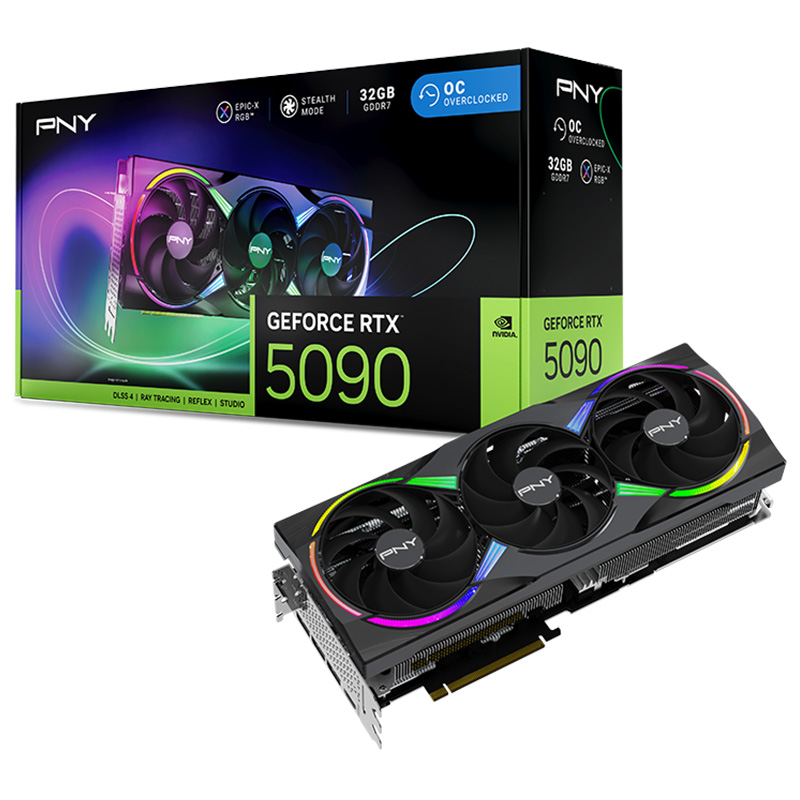

PNY GeForce RTX™ 5090 ARGB OC

1x Auxiliary Power Cable
