CUDA® Cores

8,960

Clock Speed

2.3 GHz

Memory Speed (Gbps)

28

Memory Size

16GB GDDR7

Memory Interface

256-bit

Memory Bandwidth (GB/sec)

Up to 896

TDP

300 W

NVLink

Not Supported

Outputs

DisplayPort 2.1b (x3), HDMI® 2.1b

Multi-Screen

4

Resolution

4K at 480Hz or 8K at 165Hz with DSC*

* Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz

Power Input

16-pin (One 16-pin to Three 8-pin)

Bus Type

PCI-Express 5.0 x16

Card Dimensions

11.80" x 4.73" x2.35"; 2.98 Slot

System Requirements

PCI Express-compliant motherboard with one 2.98-width x16 graphics slot

Three 8-pin supplementary power connectors

Total graphics power 300 W

Required system power 750 W*

Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit

Internet connection*

* Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.

* Power requirements can be different depending on system configuration.

Package Contents

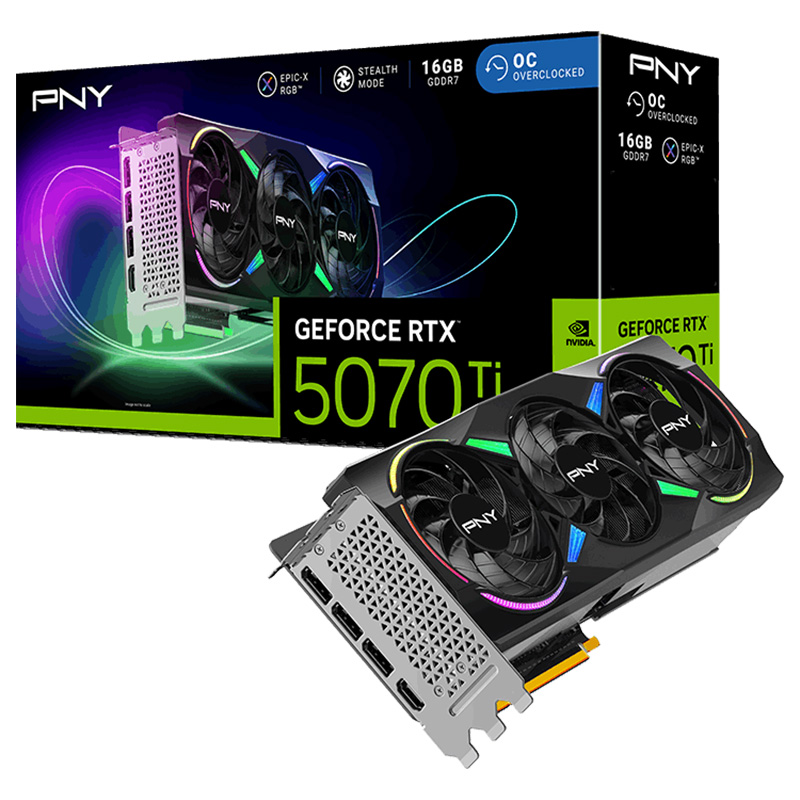

PNY GeForce RTX™ 5070 Ti ARGB OC

1x Auxiliary Power Cable
