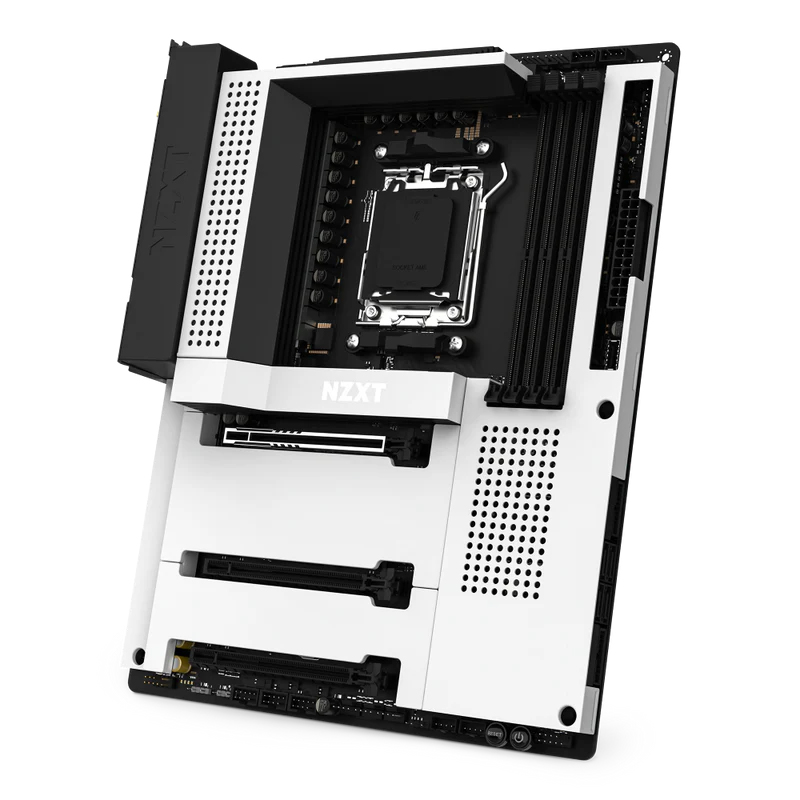

NZXT N7 B650E AM5 ATX Motherboard - White
Leverage the full value of your AMD Ryzen™ 9000, 8000, and 7000 Series Processors with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.
Maximum Control: Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer. Finishing Touch: A white or black metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5 enabled NVMe drive slot. Ready To Rock: Integrated Wi-Fi 6E, rear I/O shield, and clever port placement makes the build process easy—plenty of room on board for upgrades down the line. Stunning Craftsmanship: Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your components. CPU and Socket: Supports AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Processors.
16+2+1 Power phase design with 90A Smart Power Stage Seamless cover with integrated heat spreader Digital RGB lighting control through CAM Digital fan control for convenient fan profiles with seven independent fan channels
SPECIFICATIONS:
CPU |
| Supports AMD Socket AM5 for
AMD Ryzen™ 9000, 8000, and 7000 Series Processors | Supported | Chipset |
| AMD | B650E | MEMORY |
| DIMM Slots | 4, DDR5 only | Max Memory Support | 128GB | Memory Architecture | Dual-Channel | OC Frequency | DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC) | Extreme Memory Profile (XMP) | Supported | EXTended Profiles for Overclocking (EXPO) | Supported | EXPANSION SLOTS |
| PCIe 5.0 ×16 slot (PCIEX16_1) | 1 (Supports NVMe SSD as boot disks) | PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3) | 2 (Supports NVMe SSD as boot disks) | M.2 Socket (Key E) | 1 (supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module) | INTEGRATED GRAPHICS |
| Integrated AMD RDNA™ 2 graphics | Supported | HDMI 2.1 TMD Compatible | 1 | HDR | Supported | HDCP 2.3 | max. resolution up to 4K 60Hz | STORAGE |
| M.2_1 | Type 2242/2260/2280 (PCIe 5.0 ×4 mode) | M.2_2 | Type 2242/2260/2280 (PCIe 4.0 ×4 mode) | M.2_3 | Type 2242/2260/2280 (PCIe 4.0 ×2 mode) | SATA 6Gb/s ports | 4 | RAID for SATA | 0/1/10 | RAID for M.2 NVMe | 0/1/10 | NVMe SSD as boot disks | Supported | LAN |
| Realtek® | RTL8125BG 2.5G LAN | WIRELESS |
| 802.11ax Wi-Fi 6E Module | Supported | Bluetooth | V5.2 | AUDIO |
| Realtek® | ALC1220 Codec | REAR I/O |
| Wireless antenna SMA connectors | 2 | HDMI™ port | 1 | USB 2.0 | 2 | USB 3.2 Gen 2 Type-C port | 1 | USB 3.2 Gen 2 ports | 2 | USB 3.2 Gen 1 ports | 4 | Clear CMOS button | 1 | BIOS Flashback button | 1 | LAN (RJ45) port | 1 | Audio jacks | 5 | Optical S/PDIF Out port | 1 | INTERNAL I/O |
| 24-pin ATX power connector | 1 | 8+4-pin ATX 12V power connector | 1 | 4-pin CPU_FAN connector | 1 | 4-pin AIO_PUMP connector | 1 | 4-pin SYS_FAN connectors | 5 | NZXT RGB LED connectors | 4 | 5V ARGB LED connector | 2 | USB 2.0 header | 3 (Up to 6 USB 2.0 ports) | USB 3.2 Gen1 header | 2 (Up to 4 USB 3.2 Gen 1 ports) | USB 3.2 Gen2x2 front panel header | 1 (For USB Type-C) | Front panel audio connector | 1 | Power button | 1 | Reset button | 1 | POST LEDs | 4 | GENERAL |
| System Requirements | NZXT CAM software requires Microsoft Windows® 11/10 operating system. | Form Factor | ATX | Certifications | FCC, CE, WHQL, ErP/EuP Ready | In the Box | N7 B650E Motherboard SATA cables (2 x 90°, 2 x 180°) x4 M.2 screws x2 Wireless antenna x2 |
|
