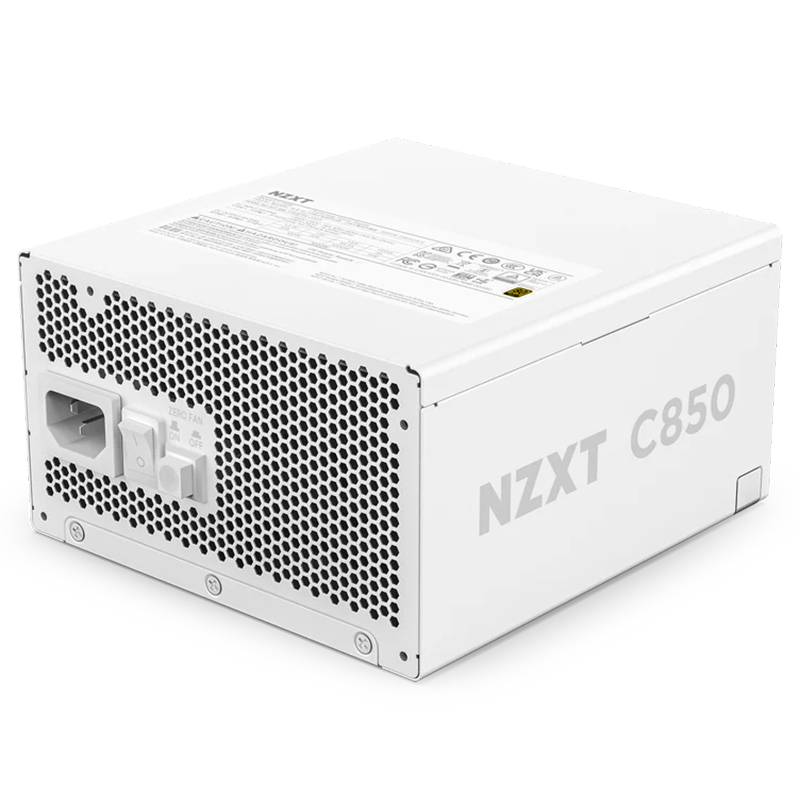

NZXT 850W C850 80+ Gold Fully Modular ATX 3.1 Power Supply - White (PA-8G2BW-AU)

850W ATX PSU, 80 Plus Gold, 70.83A @12V, active PF correction (0.99), OVP/UVP/SCP/OTP/OPP/OCP protections, 2300 RPM FDB fan (44.5 dBA, 93 CFM), 100,000 h MTBF, includes all cables.

NZXT 850W C850 80+ Gold Fully Modular ATX 3.1 Power Supply - White (PA-8G2BW-AU)
  • Power-Supply-PSU-NZXT-850W-C850-80-Gold-Fully-Modular-ATX-3-1-Power-Supply-White-PA-8G2BW-AU-8
  • Power-Supply-PSU-NZXT-850W-C850-80-Gold-Fully-Modular-ATX-3-1-Power-Supply-White-PA-8G2BW-AU-3
  • Power-Supply-PSU-NZXT-850W-C850-80-Gold-Fully-Modular-ATX-3-1-Power-Supply-White-PA-8G2BW-AU-4
  • Power-Supply-PSU-NZXT-850W-C850-80-Gold-Fully-Modular-ATX-3-1-Power-Supply-White-PA-8G2BW-AU-5
  • Power-Supply-PSU-NZXT-850W-C850-80-Gold-Fully-Modular-ATX-3-1-Power-Supply-White-PA-8G2BW-AU-6
$189.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Power-Supply-PSU-NZXT-850W-C850-80-Gold-Fully-Modular-ATX-3-1-Power-Supply-White-PA-8G2BW-AU-2




SPECIFICATIONS:

OUTPUT CONNECTORS


24-pin ATX Power Cable

1

4+4-pin CPU Power Cable

1

8-pin CPU Power Cable

1

6+2-pin PCIe Power Cable

3

16-pin (12+4) 12V-2x6 PCIe Cable

1

SATA Cable

12

Peripherals Cable

4

CABLE SPECS


24-pin ATX Power Cable

600   mm with nylon sleeving

4+4-pin CPU Power Cable

700 mm with nylon sleeving

8-pin CPU Power Cable

700   mm with nylon sleeving

6+2-pin PCIe Power Cable

650 mm with nylon sleeving

16-pin (12+4) 12V-2x6 PCIe Cable

650   mm with nylon sleeving

SATA Cable

500 + 150 mm

Peripherals Cable

500 + 150 mm

AC INPUT RATING


100 - 240Vac

10A–5A 50Hz–60Hz

DC OUTPUT RATING


3.3V / +5V

22A   (120W)

12V

70.83A (850W)

5Vsb

3A   (15W)

Total

850W

ENERGY EFFICIENCY


Rating

80 Plus Gold

10% loading

85.8% @ 115Vac

20% loading

89.5% @ 115Vac

50% loading

91.7% @ 115Vac

100% loading

89.2% @ 115Vac

ELECTRICAL FEATURES


PF Correction

Active @ 0.99

Protections

OVP / UVP / SCP / OTP / OPP / OCP

FAN SPECS


Dimensions

135 x 135 x 25 mm

Speed

2300 ± 10% RPM

Airflow

93.02 CFM (Min.)

Noise

44.5 dBA max

Bearing

Fluid Dynamic Bearing (FDB)

OPERATION


MTBF

100,000 hours

Temperature

0 – 50 °C

DIMENSIONS


Width

150 mm

Height

86 mm

Depth

160 mm

GENERAL


Material(s)

Steel, PCB and Plastic

Compliance Standard

ATX12V   v3.1 / EPS12V v2.92

Regulation & Certification

FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

OTHERS


Inside the Box

C850 Gold

24-Pin ATX Power Cable

4+4-pin CPU Power Cable

8-pin CPU Power Cable

6+2-pin PCIe Power Cable x3

16-pin (12+4) 12V-2x6 PCIe Cable

SATA Cable x3

Peripherals Cable

6-32 Screws x4

AC Power Cord




  • Product Name:
    NZXT 850W C850 80+ Gold Fully Modular ATX 3.1 Power Supply - White (PA-8G2BW-AU)
  • Model Number:
    PA-8G2BW-AU
  • Brand:
  • Warranty Period:
    10 Year
