Width

5.28 inches (134.2mm)

Depth

3.95 inches (100.4mm)

Weight

2.02 lbs (0.916kg)

Requirements

High-speed Internet connection to existing modem or gateway

Tri-band with 6 streams of WiFi

6GHz (2x2/320MHz, 4K-QAM): 5,760Mbps

5GHz (2x2/240MHz, 4K-QAM): 4,320Mbps

2.4GHz (2x2/40MHz, 1K-QAM): 688Mbps

Multi-Gig Ethernet ports - Orbi Router

Three (3) 10/100/1000/2500Mbps MultiGig Ethernet LAN ports

One (1) 10/100/1000/2500Mbps Multi-Gig Ethernet WAN port

Multi-Gig Ethernet ports - Orbi Satellite

Two (2) 10/100/1000/2500Mbps Multi-Gig Ethernet LAN ports (each)

Multi-link Operation: Combines two WiFi bands

Backhaul: shared 5GHz & 6GHz

Fronthaul: 5GHz & 6GHz

Processor - Router

Powerful quad-core 1.5GHz processor

Memory - Router

4GB flash and 2GB RAM

Network Security

Separate WiFi networks for secure access:

Main Network for all your home devices

IoT Network for all your IoT devices

Guest Network for guests

WPA3 for secure WiFi connection to devices

Automatic firmware update delivers latest security patches to the router automatically

VPN support provides secured remote access to your home network

Compatible Services

Orbi Mobile App

NETGEAR ArmorTM

NETGEAR Smart Parental Controls

What’s Included

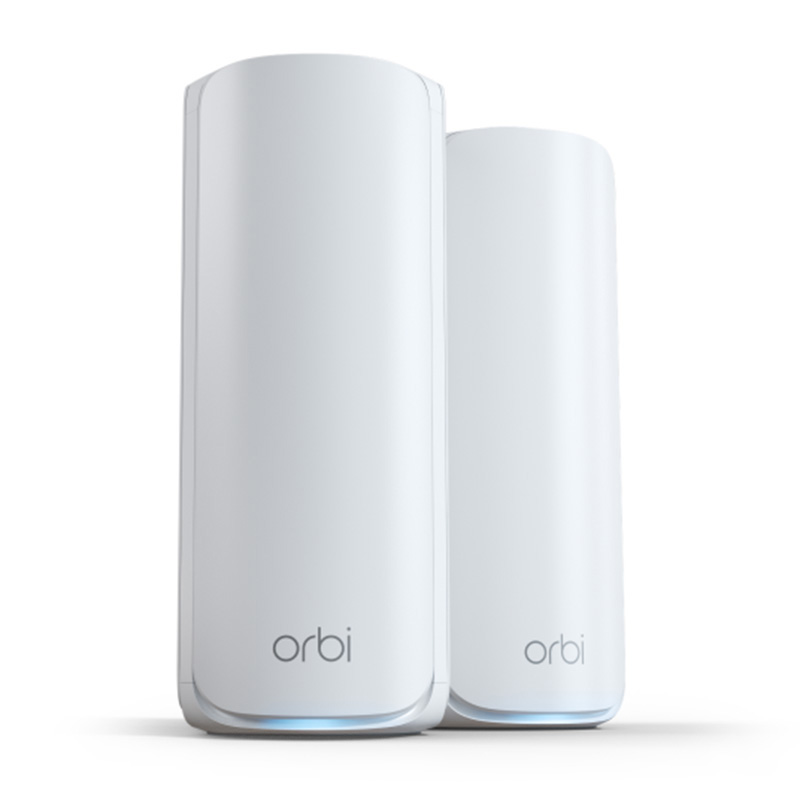

1 x Orbi WiFi 7 Router (RBE771)

1 x Orbi WiFi 7 Satellite (RBE770)

1 x 2m Ethernet cable

2 x Power adapters

Quick start guide
