Wi-Fi (6 GHz)

/

Wi-Fi Class

BE6500

Wi-Fi (2.4 GHz)

688Mbps

Wi-Fi (5 GHz)

5760Mbps

Wireless Standards

802.11be/ax/ac/a/b/g/n

Max Channel Width

160MHz

Reception Sensitivity

5GHz:

11BE EHT20 MCS0: -95.5dBm

11BE EHT20 MCS13: -61dBm

11BE EHT80 MCS0: -90.5dBm

11BE EHT80 MCS13: -53dBm

11BE EHT160 MCS0: -88dBm

11BE EHT160 MCS13: -54.5dBm

2.4GHz:

11BE EHT20 MCS0: -96.5dBm

11BE EHT20 MCS11: -68dBm

11BE EHT40 MCS0: -94.5dBm

11BE EHT40 MCS11: -65dBm

Max Wi-Fi Modulation

4096 QAM

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Wireless Functions

MLO

Multi-RUs

Beamforming

SOFTWARE

Operation Modes

Router/AP

WAN Mode

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

DHCP

Address Reservation

Server

NAT Forwarding

Port Forwarding

UPnP

Protocols

IPv4/IPv6

IPTV

IGMP Proxy

IGMP Snooping

bridge

Tag VLAN

Guest Network

2.4G Guest Network

5G Guest Network

Parental Controls

Profile Settings

Time Control

Pause the Internet

Website Filtering

DDNS

MERCUSYS

Easy Mesh

/

QoS

Time Settings

Priority Control

Security

SPI Firewall

Access Control

ISP Feature

CWMP

ISP Preset (Agile Config)

System

Firmware Upgrade

Backup and Restore

Administration

System Log

Time Settings

Reboot

Diagnostics

/

LED Management

LED Control

Night Mode

Device Management

MERCUSYS APP

Cloud

MERCUSYS ID

Language

/

Advanced Features

/

HARDWARE

Dimensions (W X D X H)

150*94*86 mm（5.91*3.70*3.39   in）

Interfaces

2× 2.5 Gbps Ports (WAN/LAN auto-sensing) 1× 1 Gbps Ports (WAN/LAN auto-sensing)

Antenna

Internal Antennas

Button

1× RESET Button

External Power Supply

Power Adapter Output: 12V/2A

Installation

/

LED

1× SYS

Retail Package Dimension

332.5*182.5*163.5 mm

Units per Carton

6

Carton Dimension

560*345*335 mm

Max Power Consumption

18W

OTHERS

Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443   Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67   Protocol: UDP

DNS

• Port: 53; Protocol: TCP & UDP

App management

Manage   and configure device through app

• Port: 20001   Protocol: TCP

• Port: 20002   Protocol: UDP

Package Contents

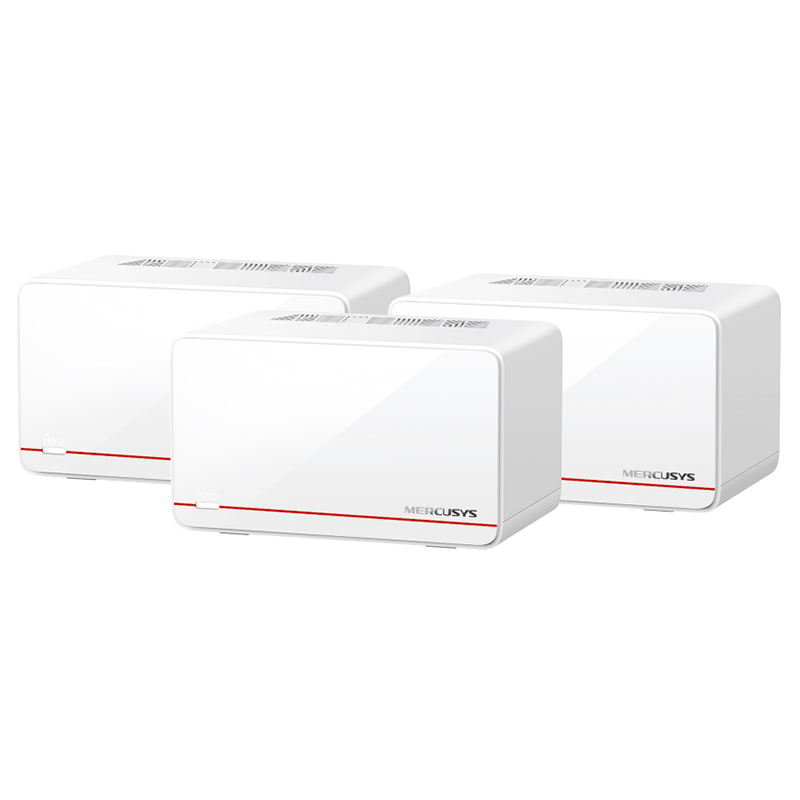

• 3× Halo H37BE Units

• 1× RJ45 Ethernet Cable

• 3× Power Adapters

• Quick Installation Guide

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Operating Humidity: 10%~90% Non-Condensing

• Storage Humidity: 5%~90% Non-Condensing
