Please Check Modem/Router Compatibility with your Service Providers Before Purchasing

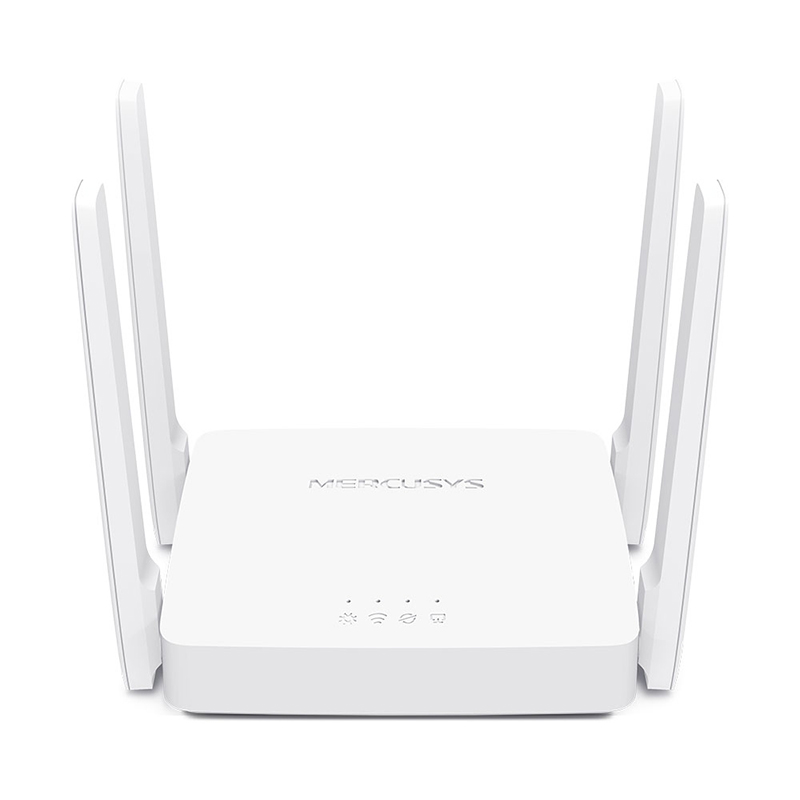

Mercusys AC10 AC1200 Wireless Dual Band Router High-Speed Wi-Fi – Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band) 4 High-Gain External Antennas – Receive strong Wi-Fi signals in every corner of your home Easy Installation – Set up in minutes guided by an intuitive web UI Active Parental Controls – Protect your family by setting appropriate access policies for responsible, safe internet use IPTV and IPv6 Supported
Wireless Standards: Frequency: Signal Rate:
11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm Transmission Power: 2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) Wireless Security: WEP, WPA / WPA2, WPA-PSK / WPA2-PSK Wireless Functions: Enable/Disable Wireless Radio, WMM HardwareDimensions (W X D X H): 4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm) Button: Reset/WPS Button External Power Supply: 9V/0.85A Antenna Type: 4× 5 dBi Fixed Omni-Directional Antennas Ethernet Ports: 1× 10/100 Mbps WAN Port 2× 10/100 Mbps LAN Ports |
