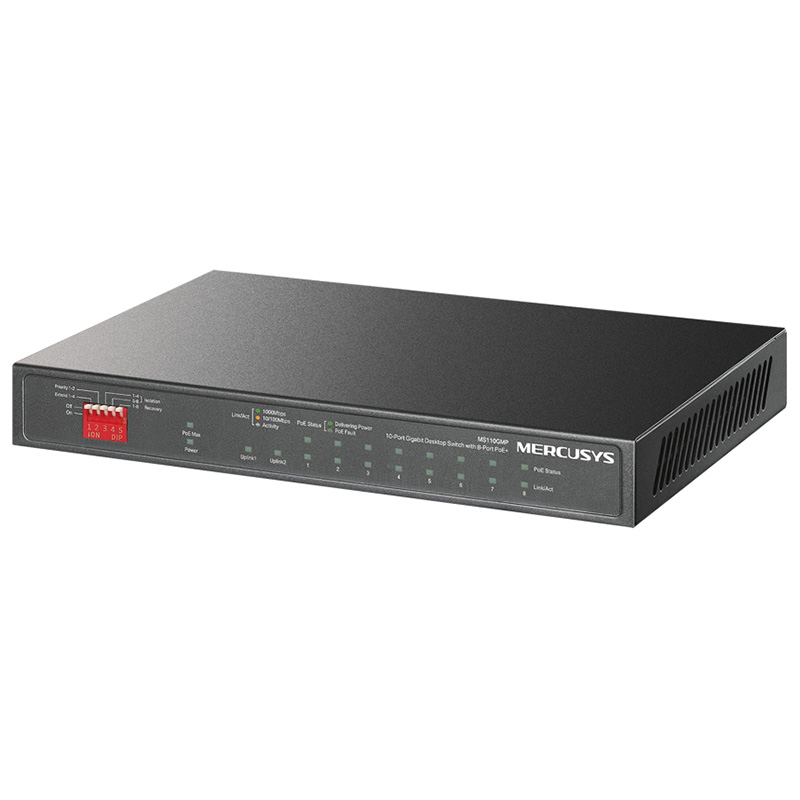

Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+ (MS110GMP)

Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+ (MS110GMP)
  • Switches-Mercusys-10-Port-Gigabit-Desktop-Switch-with-8-Port-PoE-MS110GMP-2
$99.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+ (MS110GMP)
  • Model Number:
    MS110GMP
  • Brand:
  • Warranty Period:
    5 Year

Description

Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+
As a 10-port gigabit desktop switch with 8 PoE+ ports, MS110GMP is ideal for a wide range of applications, such as surveillance for offices, dormitories, and small businesses.

  • 8× gigabit PoE+ ports, and 2× Gigabit Uplink Ports

  • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W*

  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

  • Up to 250 m data and power transmission range under Extend Mode**

  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

  • Isolation Mode allows one-click client traffic separation for higher security and performance

  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery

  • Plug and play with no configuration required

  • Fanless design reduces power consumption and works silently in its location




SPECIFICATIONS:

SOFTWARE


Transfer Method

Store-And-Forward

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

• Priority Mode Button (Ports 1–2)

• Isolation Mode Button (Ports 1–4 / 5-8)

• PoE Auto Recovery (Ports 1-8)

• Mac Address Auto-Learning and Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

HARDWARE


Dimensions (W X D X H)

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

PoE Ports

RJ45 Ports

• Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–8

• Power Supply: 111 W

Interfaces

• 8× 10/100/1000 Mbps PoE+ Ports

• 2× 1000 Mbps RJ45 Ports

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

External Power Supply

External Power Adapter (Output: 53.5VDC / 2.43A)

Fan Quantity

Fanless

Physical Security Lock

Yes

Jumbo Frame

16 KB

Switching Capacity

20 Gbps

Mac Address Table

4K

Max Power Consumption

• 7.93 W (220V / 50Hz with no PD connected)

• 141.40 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation

• 27.04 BTU/h (220V / 50Hz with no PD connected)

• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

PERFORMANCE


Packet Forwarding Rate

14.88 Mpps

OTHERS


Certifications

FCC, CE, RoHS

Package Contents

• MS110GMP

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
