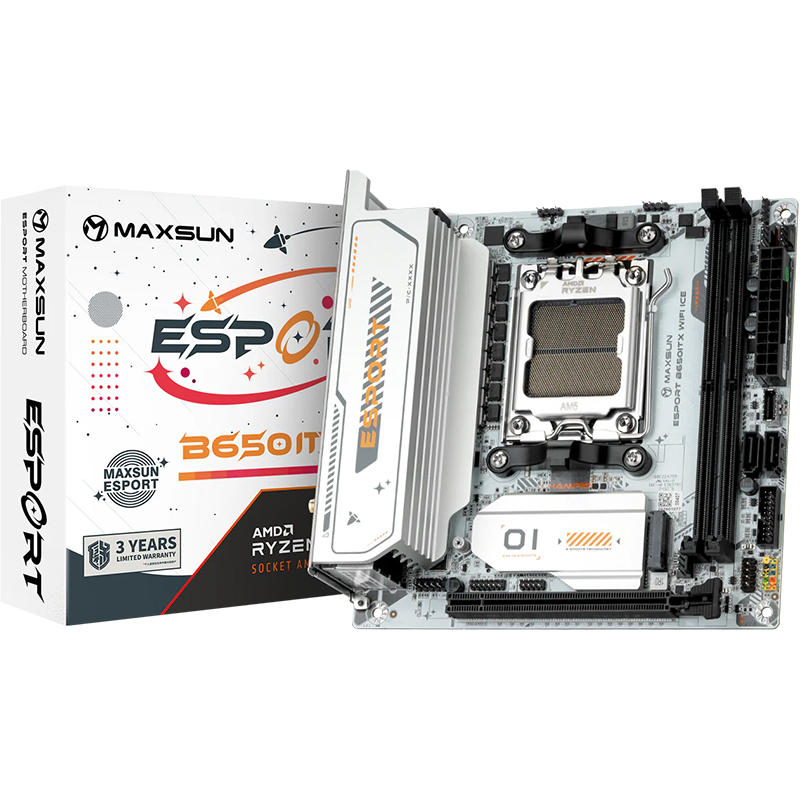

MAXSUN eSport B650ITX WIFI ICE AM5 ITX DDR5 Motherboard (MS-ES-B650ITX-WIFI-ICE)

Mini ITX (170 mm) board with AM5 socket for Ryzen 7000‑9000 (105‑180 W), B650 chipset, 2 DDR5 slots up to 96 GB (4800‑8000 MHz OC), HDMI 1.4 & DP, Realtek ALC897 audio, 2.5 Gb LAN, Wi‑Fi 6/BT 5.2, 2 PCIe 4.0 M.2, 2 SATA, USB‑C 10 Gb, RGB & fan headers.

MAXSUN eSport B650ITX WIFI ICE AM5 ITX DDR5 Motherboard (MS-ES-B650ITX-WIFI-ICE)
  • AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-7
  • AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-4
  • AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-5
$159.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup
    • Chermside New Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Icon 3 Out Of Stock
    • Brendale Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Crows Nest New Out Of Stock
    • Carlingford New Out Of Stock
    • Hurstville New Out Of Stock
    • Mosman New Out Of Stock
    • Parramatta New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-2
AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-3



SPECIFICATIONS:

Motherboard Size

ITX (170 x 170 mm)

CPU Socket

AM5, compatible with Ryzen 7000/8000/9000 series processors, TDP: 105-180W

Chipset

AMD® B650 high-speed chipset

Memory

Slots: 2 DIMM DDR5 slots, supporting up to

96GBDual-channel support

Dual-channel support

Frequency Support:

4800/ 5200/ 5600(OC)/ 6000(OC)/ 6400(OC)/ 6800(OC)/ 7000(OC)/ 7200(0C)/ 7600(0C)/ 7800(OC)/ 8000(OC) MHz

Display

1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz)

1 x DisplayPort (up to 4096 x 2160 @ 60Hz)

Audio

Integrated Realtek ALC897 audio chip

Network

Integrated Realtek 8125BG/D LAN chip

Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2

1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi

Storage

2 x M.2 slots (supporting 2242/2280 PCle 4.0 x4/x2 SSDs)

2 x SATA 3.0 ports

USB Ports

Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0

Internal Headers: 1 x USB 2.0 header (supports 2 ports),

1 x USB 3.2 Gen 1 header (supports 2 ports),

1 x USB Type-C 10G port

Additional Features

1 x 24-PIN ATX power connector

RGB Headers:

8000(OC) MHz

2 x 5V ARGB headers,

1 x 12V RGB header with MAXSUN Sync support

1 x 8-PIN ATX12V power connector (12V input)

Fan Headers:

2 system fan headers,

1 CPU fan header

1 x COM A header

1 x Rear CLR_CMOS button

1 x TPM header




  • Product Name:
    MAXSUN eSport B650ITX WIFI ICE AM5 ITX DDR5 Motherboard (MS-ES-B650ITX-WIFI-ICE)
  • Model Number:
    MS-ES-B650ITX-WIFI-ICE
  • Brand:
    MAXSUN
  • Warranty Period:
    3 Year
