Connectors (Input)

2 x 1m USB Type-A Male

Connectors (Output)

1 x Micro USB Type-B Female Port

CABLE CONNECTIONS

Output

2 x 1m USB Type-A Male

CONNECTORS

Power

1 x Micro USB-B Female Port (optional)

Power Consumption

DC 5V: 0.96W

ENVIRONMENT

Operation Temperature

0?40?øC

Storage Temperature

-20?60?øC

Humidity

0?80% RH, Non-condensing

HOUSING

Case

Plastic

DIMENSIONS

10'' Peg Hook

4

6'' Peg Hook

2

UNIT DIMENSIONS

Height

.91" (2.3cm)

Length

4.3" (11.0cm)

Depth

2.6" (6.5cm)

INNER PACK

Height

9.3" (23.5cm)

Length

6.5" (16.6cm)

Width

6.9" (17.7cm)

Inner Pack Qty.

3

UNIT PACKAGE DIMENSIONS

Height

8.8" (22.3cm)

Width

6.3" (15.6cm)

Depth

2.3" (5.7cm)

MASTER CARTON

Height

13.5" (34.3cm)

Width

10" (25.4cm)

Depth

14.6" (37.1cm)

Master Carton Qty.

12

WEIGHT

Master Carton Wt.

9.3lbs (4.2kg)

Inner Pack Wt.

2.0lbs (.90kg)

Unit Pack Wt.

.6lb (.25kg)

Unit Wt.

.23lb (.10kg)

REQUIREMENTS

Hardware

Playstation® 4: Sony Playstation brand PS4 wireless controller connected via included   micro USB cable

Xbox® Series X|S: Microsoft brand Xbox Series X|S wireless controller connected via   USB Type C cable (not included)

Xbox® One: Microsoft brand Xbox One wireless controller connected via included micro USB cable

Android 7.0+ device or iOS 10+ device with Bluetooth 4.0+ supporting Bluetooth Low   Energy (BLE)

USB Keyboard and USB Mouse***

*Required branded game controllers not included

* Does not support Nintendo Switch 2

*Third party wired controllers limited to Qanba Dragon Joystick (PS4), Razer Panthera EVO (PS4), HORI Real Arcade Pro.N Hayabusa (PS4/PS3/PC), HORI Real Arcade Pro.4 KAI (PS4), HORI Mini, Razer Raiju

**For Playstation® 5 support via remote play or Beloader Pro, please visit our Keymander 2 Forum for more information.

***Compatible with most wireless keyboard/mouse devices

OTHERS

Package Contents

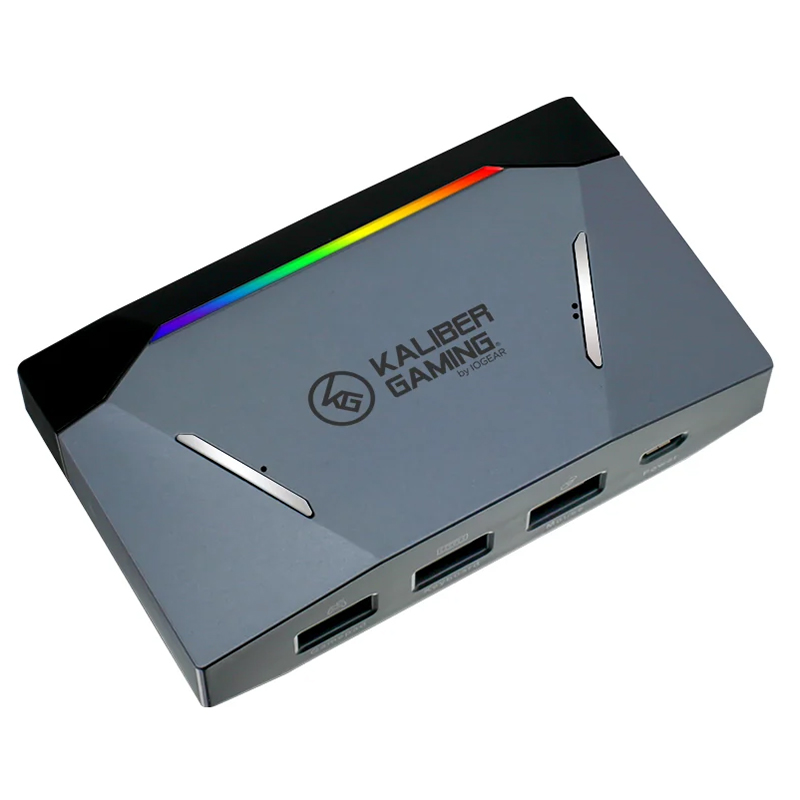

1 x KeyMander 2 Keyboard & Mouse Adapter for Game Consoles

1 x USB micro to Type A Cable

1 x Quick Start Guide

1 x Warranty Card
