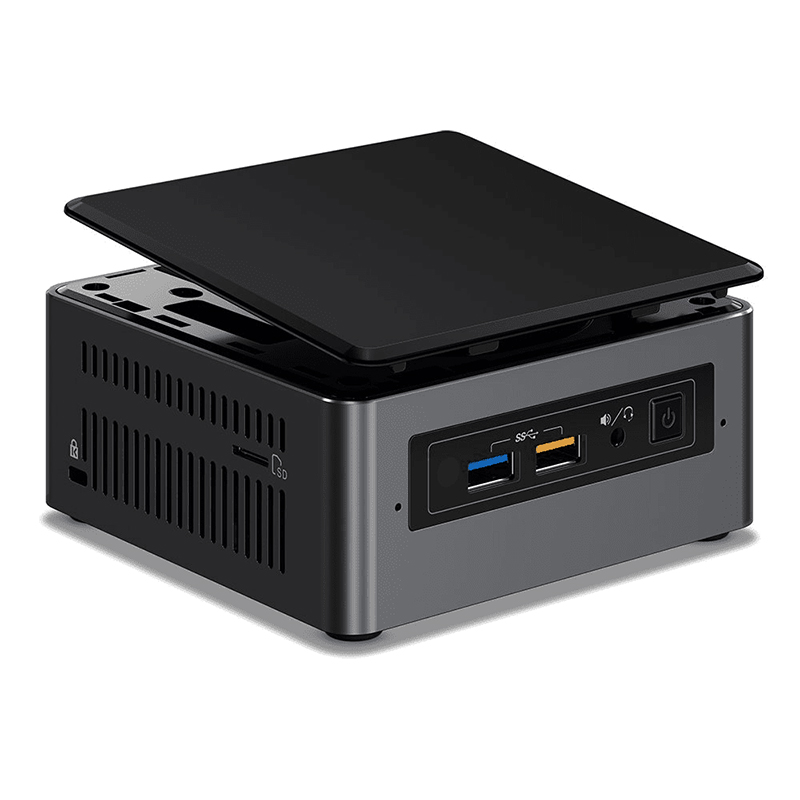

Intel NUC Baby Canyon i7 7567U 3.5 GHz 2.5in - BOXNUC7i7BNH

Intel NUC Baby Canyon i7 7567U 3.5 GHz 2.5in - BOXNUC7i7BNH
  • 52500_thumb_P_1578629874550
$698.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Intel NUC Baby Canyon i7 7567U 3.5 GHz 2.5in - BOXNUC7i7BNH
  • Model Number:
    BOXNUC7i7BNH
  • Brand:
  • Warranty Period:
    1 Year

Description

Intel NUC Baby Canyon i7 7567U 3.5 GHz 2.5in - BOXNUC7i7BNH
SPECIFICATIONS:

Product   Collection

Intel® NUC Kit with   7th Generation Intel® Core™ Processors

Code Name

Products formerly Baby    Canyon

OS

Windows 10, 64-bit

Board Number

NUC7i7BNB

Board Form Factor

UCFF (4" x   4")

Socket

Soldered-down BGA

Internal Drive Form   Factor

M.2 and 2.5” Drive

# of Internal   Drives Supported

2

Off Roadmap

No

Lithography

14nm

TDP

28 W

DC Input Voltage   Supported

12-19 VDC

Processor Included

Intel® Core™   i7-7567U Processor (4M Cache, up to 4.00 GHz)



Embedded Options Available

No

Description

Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps)   and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones



Max Memory Size (dependent on memory type)

32 GB

Memory Types

DDR4-2133 1.2V SO-DIMM

Max no. of memory channels

2

Max Memory Bandwidth

34.1 GB/s

Max # of DIMMs

2

ECC Memory supported

 No



Processor Graphics

Intel® Iris® Plus Graphics 650

Integrated Graohics

Yes

Graphics Output

HDMI 2.0a; USB-C (DP1.2)

# of Displays Supported

3



PCI Express   Revision©

Gen3

PCI Express Configurations

M.2 slot with PCIe   X4 lane

Removable Memory   Card Slot

microSDXC with   UHS-I support

M.2 Card Slot   (wireless)

22x42/80



# of USB Ports

6

USB Configuration

2x front and 2x   rear USB 3.0; 2x USB 2.0 via internal headers

USB Revision

2.0, 3.0

USB 2.0   Configuration (External + Internal)

0 + 2

USB 3.0   Configuration (External + Internal)

2B 2F + 0

Total # of SATA   Ports

2

Max # of SATA 6.0 Gb/s   Ports

2

RAID Configuration

2.5" HDD/SSD +   M.2 SATA SSD (RAID-0 RAID-1)

Audio (back channel   + front channel)

7.1 digital (HDMI   mDP); L+R+mic (F)

Integrated LAN

Intel® Ethernet   Connection I219-V

Integrated Wireless

Intel® Wireless-AC   8265 + Bluetooth 4.2

Integrated   Bluetooth

Yes

Consumer Infrared   Rx Sensor

Yes

Additional Headers

CEC, 2x USB2.0,   FRONT_PANEL

# of Thunderbolt 3   ports

1



Chassis Dimensions

115 x 111 x 52mm



Intel® Virtualization   Technology for Directed I/O (VT-d)

Yes

TPM

No

Intel® HD Audio Technology

Yes

Intel® Virtualization Technology   (VT-x)

Yes

Intel® Platform Trust Technology (Intel® PTT)

Yes
