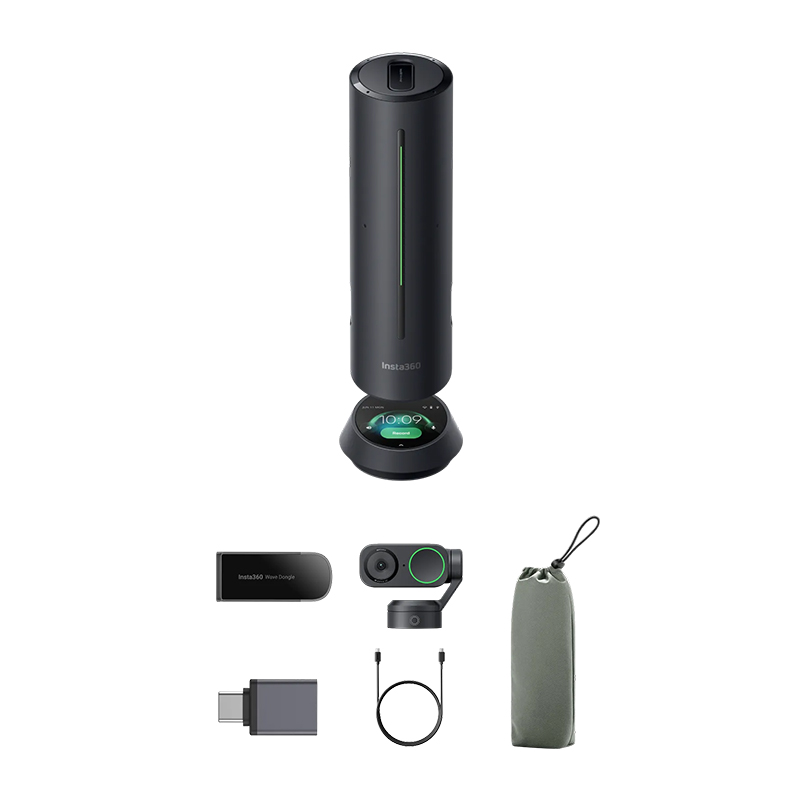

INSTA360 WAVE |
|
AUDIO |
|
Number of Microphones | 8 |
Microphone Type | MEMS |
Frequency Response | 20Hz ~ 20kHz |
Voice Pickup Sampling Rate | 48kHz |
Voice Pickup Range | 5 meters (16.4 ft) |
Power Rating | 5W |
Maximum Output Sound Pressure Level | 91 dB SPL @ 0.5m/1W |
AUDIO ALGORITHM |
|
Full-duplex Audio | Yes |
Automatic Noise Suppression (ANS) | AI noise-cancelling, eliminates 300+ common noises |
Automatic Gain Control (AGC) | AI AGC |
Automatic Echo Cancellation (AEC) | AI AEC |
Dereverberation | AI-powered |
Beamforming | Omnidirectional, cardioid, super cardioid, figure-of-eight, stereo |
Audio Modes | Noise reduction, original sound |
HARDWARE |
|
Processor | AI Chip |
Storage | 4+32GB |
Battery Capacity | 9800mAh |
Input Power | 9V/2.2A, 5V/3A |
Charging Time | 5 hours |
Battery Life (talk time) | Up to 12 hours |
Screen Size | 1.82-inch customized touchscreen |
Connection Method | Dongle, Bluetooth, USB |
Device Cascade | Supports wireless linking of 3 devices *Feature available via future OTA update. |
Dimensions | Ø64.3mm (2.53in) Raised: 248mm (9.76in), Collapsed: 198mm (7.80in) |
Weight | 490g (17.3 oz) |
Operating Temperature | 32°F - 104°F (0 - 40°C) *Tested in a lab environment. |
Colors | Graphite Black |
SYSTEM REQUIREMENTS |
|
Computer | Windows 10 or later, MacOS 12 or later. |
Mobile phone/Tablet | Android 10 or later, iOS 12 or later, iPad OS 12 or later. |
INSTA360 LINK 2 |
|
Sensor Size | 1/2" |
Video Resolution | Landscape: 4K@30/25/24fps 1080p@60/50/30/25/24fps 720p@60/50/30/25/24fps 360p@30/25/24fps Portrait: 4K@30/25/24fps 1080p@60/50/30/25/24fps 720p@60/50/30/25/25fps |
Video Coding Format | H.264, MJPEG (4K and 1080p60fps Portrait Mode do not support H.264.) |
Exposure Compensation | ±3 EV |
ISO | 100–3200 |
Shutter Speed | 1/8000–1/30s |
White Balance | 2000–10000K |
Aperture | F1.8 |
35mm Equivalent Focal Length | 26mm |
Fixed FOV | 79.5º DFOV, 67º HFOV |
Digital Zoom | Up to 4x |
Autofocus | Supported at a distance of 10cm (4in) to ∞ |
HDR | Supported in all resolutions and frame rates |
Audio | AI Noise-Canceling |
Modes | AI Tracking, Smart Whiteboard, DeskView |
Color | Graphite Black |
Gimbal | 2-Axis |
Button | 1x Touch Key |
Connectivity | USB-C Cable (USB 2.0) or USB-C to USB-A adapter |
Power Consumption | 5V/1A |
Mounting Options | Magnetic Mount with 1/4" mounting point for external tripod |
Dimensions (W x H x D) | 71.3x58.9x38mm (2.8x2.3x1.5in) |
Weight | Without Magnetic Mount: 101.5g (3.6oz) With Magnetic Mount: 166.5g (5.9oz) |
System Requirements | CPU: i5-5 generation or later (some advanced features require i5-10 generation or later) RAM: 8GB or above Link Controller: - Windows: Windows 10 or later. Does not support ARM-based Windows. - Mac: macOS 10.13 or later. Virtual Camera requires macOS 13.0 or later. Background Blur & Background Replacer: - Windows: Supports all NVIDIA GPUs. AMD GPUs may experience compatibility issues; please contact the Insta360 Customer Service team before purchasing. Verified AMD GPUs include Radeon (TM), RX Vega 10, 780M, RX 560, RX 6600 and RX 6750 GRE. - Mac: macOS 13.0 or later. Natural Bokeh: - Windows: NVIDIA's GTX1080 or later, RTX2060 or later GPUs. Does not support AMD GPUs. - Mac: M1 chip or later. Does not support Intel chips. *The Insta360 Virtual Camera will be automatically installed with Link Controller. The Virtual Camera supports Smart Whiteboard Mode, Natural Bokeh, Background Blur, Background Replacer and Makeup. The Virtual Camera does not support 50fps or 60fps; Makeup does not support 4K resolution; Natural Bokeh (Windows) does not support 4K. |
Operating Temperature | 32°F to 104°F (0°C to 40℃) *Tested in a lab environment. |
