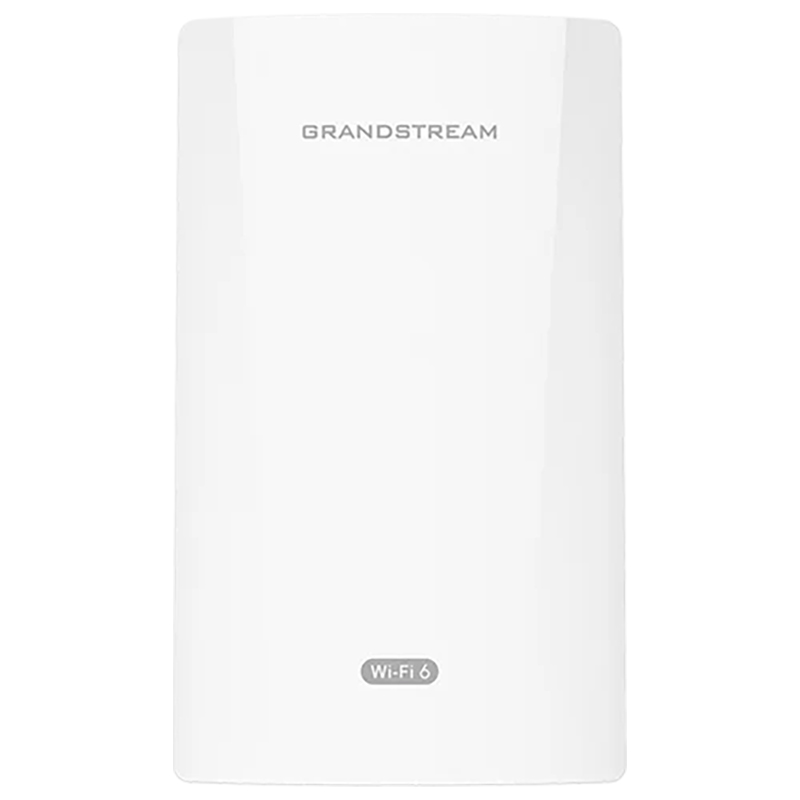

Grandstream PtP/PtMP 5GHz AX2400 Fixed Wireless Bridge
The GWN7302 is a new enterprise PtP/PtMP Fixed Wireless Bridge, ideal for medium-to-large businesses that need to provide long-distance wireless data transmission. It offers single-band 2x2:2 MIMO, 5km coverage range, and IP66 level weatherproof capability to ensure equipment stability.
2.4Gbps aggregate wireless throughput, 2x1 Gigabit Ethernet Port Single-band 2x2:2 MIMO with TDMA technology Up to 5-kilometer coverage range Advanced QoS to ensure real-time performance of low-latency applications IP66 level weatherproof Self-power adaptation upon auto detection of PoE+ Convenient and intelligent web management; GWN App management; GDMS Networking offers a remote management via SSH tunneling
SPECIFICATIONS:
Antenna | 2 single internal antennas 5GHz x 2 , gain 13.5dBi | Beamwidth | 5G: H:30°, V:30° MIMO 5GHz: 2x2:2, MIMO | Frequency Bands | 5GHz Radio: 5150 - 5850 MHz *Not all frequency bands can be used in all regions | Channel Bandwidth | 5G: 20, 40, 80 and 160MHz (x2) | Wi-Fi Data Rates | 5G IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5 Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network | Maximum TX Power | 5G: 26dBm *Maximum power varies by country, frequency band and MCS rate | Receiver Sensitivity | 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ac 20 MHz: -67 dBm @MCS8; 802.11ac 40 MHz: -63 dBm @MCS9; 802.11ac 80 MHz: -59 dBm @MCS9; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 802.11ax 80 MHz: -56 dBm @MCS11; 802.11ax 160 MHz: -52 dBm@ MCS11; | Coverage Range | Up to 5 kilometers *coverage range can vary based on environment | Point to Multipoint | 1 to 4 | Network Ports | 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE output | LEDs | 1 tri-color LED for device tracking and status indication 3x LED for signal strength 2x LED for network port status | Auxiliary Ports | 1x Reset and Pairing Button | PoE Input | 802.3af/at | DC | +24V (Compatible with 16V-48V) | PSE output | Max 13W with PoE+ input Max 25W with +24V DC/2A input | Maximum Power Consumption | 13W | Dimension | Unit: 180 x 102 x 38 mm Entire Package: 219 × 185.5 × 66 mm Weight Unit: 412g Entire Package: 753g | Mounting | Wall mount or pole mount, kits included | Package Content | GWN7302 PtP/PtMP Fixed Wireless Bridge, Mounting Kits, Quick Start Guide | Temperature | Operation: -30°C to 60°C Storage: -30°C to 70°C | Humidity | 5% to 95% Non-condensing | Weatherproof Guide | IP66-level weatherproof capability | Compliance | FCC, CE, RCM, IC |
|
