Antennas

5 individual internal antennas

2.4GHz x 2 , gain 5.5 dBi

5 GHz x 2, gain 6.0 dBi

BT gain 4.5 dBi

Wi-Fi Data Rates

5G:

IEEE 802.11ax: 7.3 Mbps to 2403 Mbps

IEEE 802.11ac: 6.5 Mbps to 1734 Mbps

IEEE 802.11n: 6.5 Mbps to 300 Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps

IEEE 802.11n: 6.5 Mbps to 300 Mbps

IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental   conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

2.4GHz: 2400-2483.5MHz

5GHz: 5150-5850 MHz

*Not all frequency bands can be used in all regions.

Channel Bandwidth

2.4G: 20 and 40 MHz

5G: 20, 40, 80 and 160 MHz

System Security

WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and   random default password per device

MIMO

2×2:2 2.4GHz, 2×2:2 5GHz

Coverage

Range Up to 300 meters

*Coverage range can vary based on environment

Maximum TX Power

5G: 26dBm

2.4G: 27dBm

*Maximum power varies by country, frequency band, and MCS rate

Receiver Sensitivity

2.4G

802.11b: -96dBm @1Mbps, -88dBm @11Mbps;

802.11g: -93dBm @6Mbps, -75dBm @54Mbps;

802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;

802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11

5G

802.11a: -90dBm @6Mbps, -72dBm @54Mbps;

802.11n: 20MHz: -71dBm @MCS7; 802.11n 40MHz: -68dBm @MCS7

802.11ac 20MHz: -65dBm @MCS8; 802.11ac: 40MHz:  -61dBm @MCS9; 802.11ac 80MHz: -57dBm @MCS9;

802.11ac 160MHz: -55dBm @MCS9;

802.11ax 20MHz: -58dBm @MCS11; 802.11ax 40MHz: -56dBm @MCS11; 802.11ax 80MHz: -54dBm @MCS11;

802.11ax 160MHz: -51dBm @MCS11;

SSIDs

32 SSIDs total, 16 per radio (2.4GHz & 5GHz)

Concurrent Clients

256

Network Interfaces

1x 1G RJ45 Port and 1x 2.5G SFP Port

Bluetooth®

BLE 5.2

Auxiliary Ports

1x Reset Button

Mounting

Wall mount or pole mount, kits included (The mounting kits can be adjusted and rotated by 60°)

LEDs

1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs

GWN.Cloud offers a free cloud management platform for unlimited GWN APs

GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

PoE 802.3af/ 802.3at;

Maximum Power Consumption: 13W

Environmental

Operation:-30°Cto   60°C

Storage: -30°C to 70°C

Humidity: 5% to 95% Non-condensing

Physical

Unit Dimension: 270mm x 230mm x 57mm

Unit (including brackets): 1kg

Entire Package Dimension:  439mm x 329mm x 137mm

Entire Package Weight: 2.4kg

Package Content

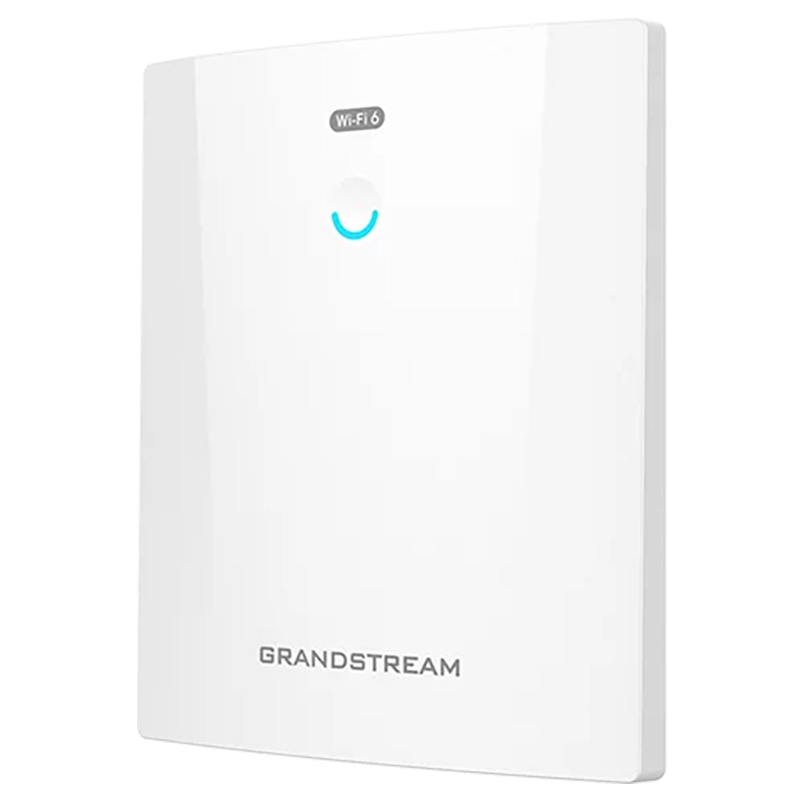

GWN7660ELR AP, Mounting Kits, Quick Installation Guide

Weatherproof Grade

IP68-level weatherproof capability

Compliance

FCC, CE, RCM, IC
