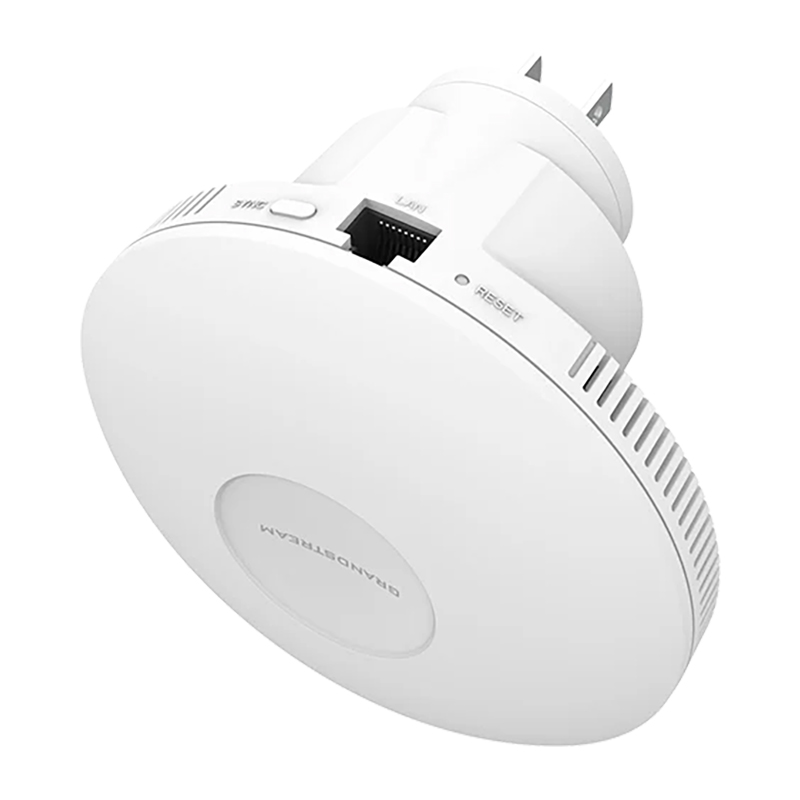

Grandstream GWN AX3000 Wi-Fi 6 Extender and Access Point
The GWN7660EM IS an AX3000 Wi-Fi 6 access point with a pluggable socket design, providing an easy-to-install solution for offices and homes. It can also be used as a Wi-Fi extender to quickly build a wireless mesh solution thats expand network coverage. 3Gbps aggregate wireless throughput and 1 Gigabit wireline port Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology Up to 120-meter coverage range Supports 128 concurrent Wi-Fi client devices Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device Supports Mesh networking with the GWN7062E/ET series, future Grandstream Routers, and other GWN series access points to provide easy network expansion Embedded controller can manage up to 10 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
SPECIFICATIONS:
Antenna | 1 single frequency antenna and 2 dual frequency antennas 2.4GHz x 2, maximum gain 2.5 dBi 5GHz x 3, maximum gain 2.5 dBi | MIMO | 2.4GHz: 2x2:2, MU-MIMO 5GHz: 3x3:2, MU-MIMO | Frequency Bands | 2.4GHz Radio: 2400 - 2483.5 MHz 5GHz Radio: 5150 - 5895 MHz *Not all frequency bands can be used in all regions | Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20, 40, 80 and 160 MHz | Wi-Fi Data Rates | 2.4G IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps 5G IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11n: 6.5 Mbps to 600 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network | Maximum TX Power | 2.4G: 26 dBm 5G: 24 dBm *Maximum power varies by country, frequency band and MCS rate | Receiver Sensitivity | 2.4G 802.11b: -96 dBm @1 Mbps, -88 dBm @11 Mbps; 802.11g: -93 dBm @6 Mbps, -75 dBm @54 Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 5G 802.11a: -92 dBm @6 Mbps, -74 dBm @54 Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ac 20 MHz: -67 dBm @MCS8; 802.11ac 40 MHz: -63 dBm @MCS9; 802.11ac 80 MHz: -59 dBm @MCS9; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 802.11ax 80 MHz: -56 dBm @MCS11; 802.11ax 160 MHz: -52 dBm@ MCS11; | Coverage Range | Up to 120 meters *Coverage range can vary based on environment | Network Ports | 1x autosensing 10/100/1000 Base-T Ethernet Port | LEDs | 1 tri-color LED for device tracking and status indication | Auxiliary Ports | 1x Reset Pinhole, 1x SYNC Key | AC | 110-240V~50/60Hz 0.4A | Maximum Power Consumption | 12W | Dimension | Unit: 110 × 110 × 56.7 mm Entire Package: 125 × 117 × 93 mm | Weight | Unit: 210.5 g Entire Package: 314 g | Mounting | Indoor wall-plug mount | Package Content | GWN7660EM Wi-Fi 6 Wireless AP, AC adapter plug, Quick Start Guide | Temperature | Operation: 0°C to 40°C Storage: -10°C to 60°C | Humidity | 10% to 90% Non-condensing | Compliance | FCC, CE, RCM, IC |
|
