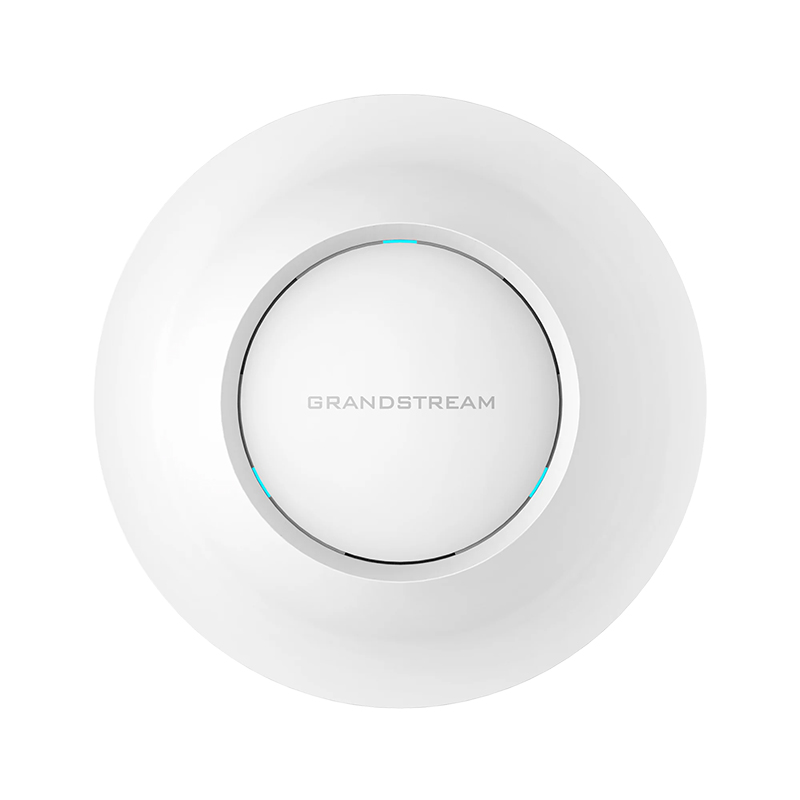

Grandstream GWN 802.11ac Wave-2 4x4:4 Wireless Access Point
The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point and offers dual-band 4×4:4 MU-MIMO technology for small to medium sized businesses, multiple floor offices, commercial locations and branch offices.
2.33 Gbps wireless throughput and 2 Gigabit wireline ports Dual-band 4×4:4 MU-MIMO technology Self power adaptation upon auto detection of PoE or PoE+ Supports 200+ concurrent Wi-Fi client devices Up to 175-meter coverage range Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management
SPECIFICATIONS:
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) | Antennas | 4 dual band internal antennas 2.4GHz, gain 4dBi 5 GHz, gain 5dBi | Wi-Fi Data Rates | IEEE 802.11ac: 6.5 Mbps to 1733Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5Mbps to 600Mbps; 800Mbps with 256-QAM on 2.4Ghz IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network | Frequency Bands | 2.4GHz radio: 2412 - 2484 MHz 5GHz radio: 5180 - 5825 MHz | Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz | Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device | MIMO | 4×4:4 2.4G(MIMO) 4×4:4 5G(MU-MIMO) | Coverage Range | Up to 175 meters *Coverage range can vary based on environment | Maximum TX Power | 2.4G: 27 dBm 5G: 25 dBm *Maximum power varies by country, frequency band and MCS rate | Receiver Sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 | SSIDs | 15 SSIDs per access point | Concurrent Clients | 200+ | Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Ports | Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock | Mounting | Indoor wall mount or ceiling mount, kits included | LEDs | 3 tri-color LEDs for device tracking and status indication | Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM | QoS | 802.11e/WMM, VLAN, TOS | Network Management | ≤ 50 APs: Light-weight Master in AP ≥ 50 APs: Cloud management (GWN.Cloud) | Power and Green Energy Efficiency | Support 802.3 az ; PoE 802.3at; Max Consumption: 16.5W | Environmental | Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing | Physical | Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 590g Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 710g Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 930g | Package Content | GWN7630 802.11ac Wave-2 Wireless AP, Mounting Kits, Quick Start Guide | Compliance | FCC, CE, RCM, IC |
|
