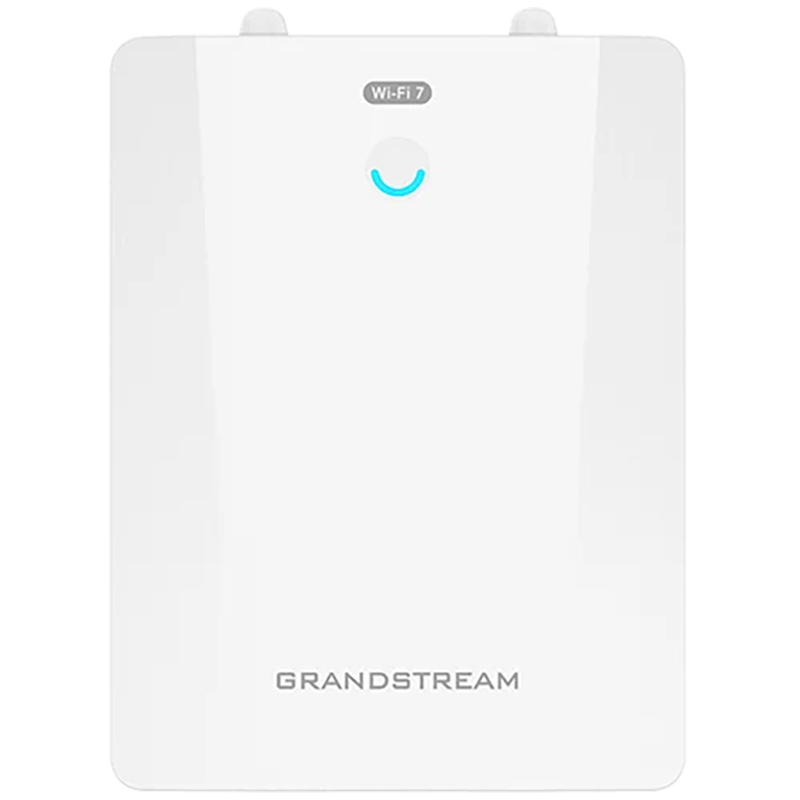

Grandstream GWN 2x2 802.11be BE3600 Long-Range Dual-Band Wi-Fi 7 Access Point/Bridge (GWN7670LR)

Wi‑Fi 7 dual‑band 2×2:2 AP delivering up to 3.6 Gbps aggregate throughput, 350 m range, 256 concurrent clients, 2.5 G Ethernet & SFP, PoE+, advanced QoS, secure boot and controller for up to 50 APs.

Grandstream GWN 2x2 802.11be BE3600 Long-Range Dual-Band Wi-Fi 7 Access Point/Bridge (GWN7670LR)
  • Wireless-Access-Points-WAP-Grandstream-GWN-2x2-802-11be-BE3600-Long-Range-Dual-Band-Wi-Fi-7-Access-Point-Bridge-GWN7670LR-9
  • Wireless-Access-Points-WAP-Grandstream-GWN-2x2-802-11be-BE3600-Long-Range-Dual-Band-Wi-Fi-7-Access-Point-Bridge-GWN7670LR-1
  • Wireless-Access-Points-WAP-Grandstream-GWN-2x2-802-11be-BE3600-Long-Range-Dual-Band-Wi-Fi-7-Access-Point-Bridge-GWN7670LR-2
  • Wireless-Access-Points-WAP-Grandstream-GWN-2x2-802-11be-BE3600-Long-Range-Dual-Band-Wi-Fi-7-Access-Point-Bridge-GWN7670LR-3
  • Wireless-Access-Points-WAP-Grandstream-GWN-2x2-802-11be-BE3600-Long-Range-Dual-Band-Wi-Fi-7-Access-Point-Bridge-GWN7670LR-4
  • Wireless-Access-Points-WAP-Grandstream-GWN-2x2-802-11be-BE3600-Long-Range-Dual-Band-Wi-Fi-7-Access-Point-Bridge-GWN7670LR-5
  • Wireless-Access-Points-WAP-Grandstream-GWN-2x2-802-11be-BE3600-Long-Range-Dual-Band-Wi-Fi-7-Access-Point-Bridge-GWN7670LR-6
  • Wireless-Access-Points-WAP-Grandstream-GWN-2x2-802-11be-BE3600-Long-Range-Dual-Band-Wi-Fi-7-Access-Point-Bridge-GWN7670LR-7
$289.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup
    • Chermside New Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Icon 3 Out Of Stock
    • Brendale Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Crows Nest New Out Of Stock
    • Carlingford New Out Of Stock
    • Hurstville New Out Of Stock
    • Mosman New Out Of Stock
    • Parramatta New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Grandstream GWN 2x2 802.11be BE3600 Long-Range Dual-Band Wi-Fi 7 Access Point/Bridge
The GWN7670LR is a long-range Wi-Fi 7 access point, ideal for medium-to-large businesses that need to provide long-range coverage.

  • 3.6Gbps aggregate wireless throughput, 2.5Gigabit Ethernet Port, and 2.5Gigabit SFP Port

  • Integrated Wi-Fi 7 and Dual band 2x2:2 MIMO with DL/UL OFDMA technology

  • Up to 350-meter coverage range

  • Supports 256 concurrent Wi-Fi client devices

  • Advanced QoS to ensure real-time performance of low-latency applications

  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device

  • Self-power adaptation upon auto-detection of PoE+

  • Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management





SPECIFICATIONS:

Antenna

2.4G: Directional internal 8dBi/External omni 3.5dBi

5G: Directional internal 13.5dBi/External omni 3.5dBi

BT: 5.0dBi



Directional internal antenna beamwidth

2.4G: 90 degree

5G: 35 degree

MIMO

2.4GHz: 2x2:2, MIMO

5GHz: 2x2:2, MIMO

Frequency Bands

2.4GHz Radio: 2400 - 2483.5 MHz

5GHz Radio: 5150 - 5895 MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth

2.4G: 20 and 40 MHz

5G: 20, 40, 80 and 160 MHz

Wi-Fi Data Rates

2.4G

IEEE 802.11be: Up to 688 Mbps

IEEE 802.11ax: 7.3Mbps to 574 Mbps

IEEE 802.11n: 6.5Mbps to 300Mbps

IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

5G

IEEE 802.11be: Up to 2882 Mbps

IEEE 802.11ax: 7.3 Mbps to 2402 Mbps

IEEE 802.11ac: 6.5 Mbps to 1732 Mbps

IEEE 802.11n: 6.5 Mbps to 600 Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental   conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Maximum TX Power

2.4G: 27 dBm

5G: 26 dBm

*Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

2.4G

802.11b: -96dBm @1Mbps, -88dBm @11Mbps;

802.11g: -93dBm @6Mbps, -75dBm @54Mbps;

802.11n 20MHz: -73dBm @MCS7;

802.11n 40MHz: -70dBm @MCS7;

802.11ax 20MHz: -60dBm @MCS11;

802.11ax 40MHz: -58dBm @MCS11;

802.11be 20MHz: -65dBm @MCS13;

802.11be 40MHz: -62dBm @MCS13;

5G

802.11a: -92dBm @6Mbps, -74dBm @54Mbps;

802.11n 20MHz: -73dBm @MCS7;

802.11n 40MHz: -70dBm @MCS7;

802.11ac 20MHz: -67dBm @MCS8;

802.11ac 40MHz: -63dBm @MCS9;

802.11ac 80MHz: -59dBm @MCS9;

802.11ax 20MHz: -60dBm @MCS11;

802.11ax 40MHz: -58dBm @MCS11;

802.11ax 80MHz: -56dBm @MCS11;

802.11ax 160MHz: -52dBm@ MCS11;

802.11be 20MHz: -59dBm @MCS13;

802.11be 40MHz: -56dBm @MCS13;

802.11be 80MHz: -54dBm @MCS13;

802.11be 160MHz: -52dBm @MCS13;

Coverage Range Up to 350 meters

*Coverage range can vary based on environment

Point to Multipoint (pending)

1 to 3

Up to 1.5 kilometers

Bluetooth®

BLE 5.3

Network Ports

1x 2.5G Ethernet RJ45 Port, PoE input

1x 2.5G SFP

LEDs

1x tri-color LED for device tracking and status indication

4x blue LED for signal strength indication (PtMP mode)

Auxiliary Ports

1x Reset Pinhole

PoE Input

802.3at

Maximum Power Consumption

15.5W

Dimension

Unit: 223.2 x 169.9 x 53.9 mm

Entire Package: 376 × 321 × 138 mm

Weight Unit: 1.2kg

Entire Package: 2.7kg

Mounting

Wall mount or pole mount, kits included

Package Content

GWN7670LR Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide

Temperature

Operation: -30°C to 60°C

Storage: -40°C to 70°C

Humidity

10% to 90% Non-condensing

Compliance

FCC, CE, RCM, IC




  • Product Name:
    Grandstream GWN 2x2 802.11be BE3600 Long-Range Dual-Band Wi-Fi 7 Access Point/Bridge (GWN7670LR)
  • Model Number:
    GWN7670LR
  • Brand:
    Grandstream Grandstream
  • Warranty Period:
    3 Year
