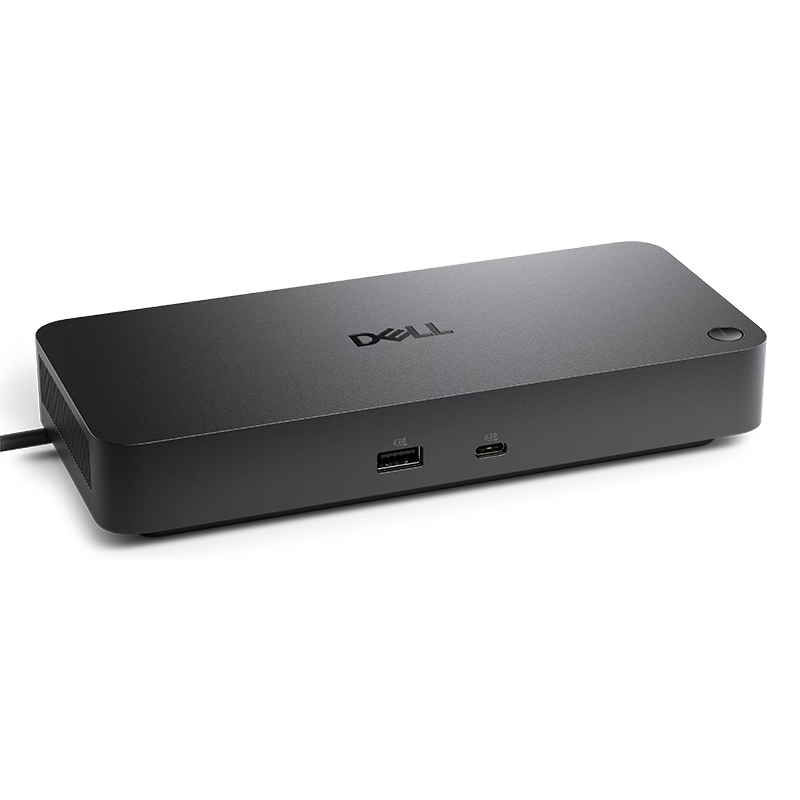

Dell 100W Pro Dock WD25 Docking Station (210-BRMB)

Dell 100W Pro Dock WD25 Docking Station (210-BRMB)
  • Enclosures-Docking-Dell-100W-Pro-Dock-WD25-Docking-Station-210-BRMB-8
  • Enclosures-Docking-Dell-100W-Pro-Dock-WD25-Docking-Station-210-BRMB-3
  • Enclosures-Docking-Dell-100W-Pro-Dock-WD25-Docking-Station-210-BRMB-1
  • Enclosures-Docking-Dell-100W-Pro-Dock-WD25-Docking-Station-210-BRMB-2
$229.0 Question Mark
Was: $279.0  WAS Tips    Save $50.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Dell 100W Pro Dock WD25 Docking Station (210-BRMB)
  • Model Number:
    210-BRMB
  • Brand:
  • Warranty Period:
    3 Year

Description

Enclosures-Docking-Dell-100W-Pro-Dock-WD25-Docking-Station-210-BRMB-4




SPECIFICATIONS:

TECHNICAL INFORMATION


Connectivity Technology

Wired

Number of Displays Supported

4

Device Supported

Notebook

Management Features

Host PC Management:

MAC address pass-through

PXE Boot

Dock Power Button Sync

Wake-On-LAN

WLAN to LAN switch

Kernel Direct Memory Access (DMA) protection



Dock Management Features:

Host PC based firmware update

Firmware update on disconnect

Port Disablement

VIDEO RESOLUTION


DP1.4 with Display Stream Compression

4 x WQHD (3440 x 1440) @ 60Hz

3 x WQHD (3440 x 1440) @ 60Hz

2 x 5K (5120 x 2160) @ 60Hz

1 x 6K (6144 x 3456) @ 60Hz

DP1.4 without Display Stream Compression

Up to:

4 x HD (1280x720) @ 60Hz

3 x FHD (1920x1080) @ 60Hz

2 x QHD (2560x1440) @ 60Hz

1 x 4K (3840 x 2160) @ 60Hz

NETWORK & COMMUNICATION


Ethernet Technology

RJ45 Ethernet port, 2.5GbE

INTERFACES/PORTS


Video interfaces

2 x DP1.4

1 x HDMI 2.1

1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)

1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Power Delivery

100W (Dell systems)

96W (non-Dell systems)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)

1 x USB-C 3.2 Gen 2 (15W)

1 x USB-C Multi-function DisplayPort (7.5W)

All deliver power with or without PC

SOFTWARE


Operating System Supported

Windows 10

Windows 11

Ubuntu

Red Hat Enterprise Linux

ChromeOS

POWER DESCRIPTION


Maximum Power Supply Wattage

130W

PHYSICAL CHARACTERISTICS


Height

205mm

Width

90mm

Depth

35.25mm

Weight (Approximate)

550 g

MISCELLANEOUS


Package Contents

Docking Station

Power Adapter and Power Cord

Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot

Yes
