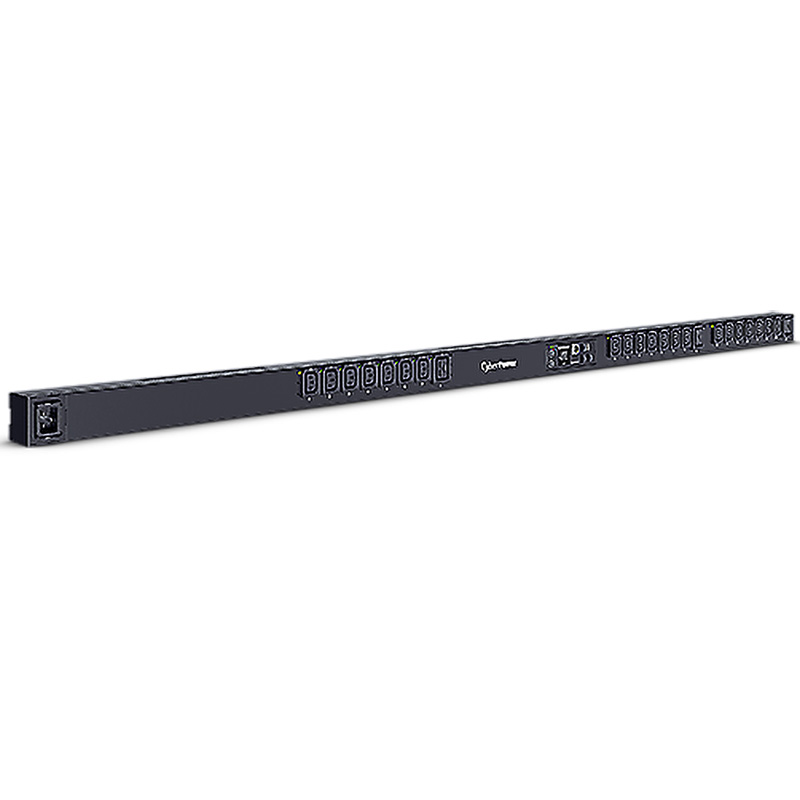

CyberPower 24 Port Switched Metered-by-Outlet Power Distribution Unit
CyberPower PDU81404 is a network-grade power distribution unit ideal for data center and enterprise applications, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.
The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCDâs colors to easily categorize devices.
The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor, which can provide real-time temperature and humidity monitoring in an IT center.
Real-time Local/Remote Monitoring and Switching of Individual Outlet Work under High Temperature Âą1% Measurement Accuracy Digital Real-time Load Display Hot-swappable LCD Design LED Status Indicator Support Environmental Sensor PowerPanel Management Software Cord Retention Tray Controllable Receptacles with Power Sequencing Ultra Low Power Consumption Industrial-grade Metal Housing User Configurable Color LCD Rotatable LCD for Proper Display Orientation Firmware Upgrade via USB User-upgradeable Firmware Adjustable Mounting Brackets IEC Receptacle Locking
SPECIFICATIONS:
GENERAL |
| Type | Switched Metered-by-Outlet | Phase | Single Phase | INPUT |
| Nominal Input Voltage ( Vac ) | 200 ~ 240 | Input Frequency ( Hz ) | 50 / 60 | Maximum Input Current ( A ) | 16 (CE) | Input Connector Type | IEC 60309 16A x 1 ă | Power Cord Length (ft.) | 10 | Power Cord Length (m.) | 3.05 | OUTPUT |
| Output Voltage ( V ) | Depends on Input | Idle Power Consumption ( W ) | < 5 | Outlets - # of Bank(s) ( Bank ) | 1 | Outlet(s) - Total | 24 | Outlet(s) - Front | 24 | Outlet Type | IEC C13 x 21 ă IEC C19 x 3 ă | Remote Individual Outlet Control | Yes | MANAGEMENT & COMMUNICATIONS |
| LCD Information Display | Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Watts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version | Color LCD | Yes | Hot-swappable LCD Module | Yes | Auto LCD Orientation | Yes | LCD Setting & Control | Outlet Control, LCD Settings, Reset / Reboot | LED Indicators | PDU Status, Tx/Rx, Link, Outlet | Metering Accuracy | Âą 1% | A-type USB Port | Yes | Connectivity Port | RJ45, RJ45 (for Serial), RJ45 (for Environmental Sensor/Daisy Chain (In)), RJ45 (for Daisy Chain (Out)) | Environmental Sensor Supported | Yes | User-upgradeable Firmware | Yes | Power Management Software | PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management) | Supported Protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog | Authentication | RADIUS, LDAP, LDAPS, Windows AD | PHYSICAL |
| Installed Rack Height (U) | 0 | Form Factor | 0U Vertical Rackmount | Enclosure Construction | Steel | Color | Black | Cord Retention Tray | Yes | IEC Receptacle Locking | Yes | Adjustable Mounting Brackets | 1 Set | PHYSICAL SIZE |
| Dimensions (WxHxD) (in.) | 2.2 x 65.6 x 1.9 | Dimensions (WxHxD) (mm.) | 56 x 1665 x 48 | Weight (lbs.) | 15.4 | Weight (kg.) | 7.0 | SHIPPING DIMENSIONS |
| Dimensions (WxHxD) (in.) | 7.3 x 74.6 x 4.5 | Dimensions (WxHxD) (mm.) | 185 x 1895 x 115 | Weight (lbs.) | 19.6 | Weight (kg.) | 8.9 | ENVIRONMENTAL |
| High Temperature Operation | Yes | Operating Temperature (°F) | 32 ~ 131 | Operating Temperature (°C) | 0 ~ 55 | Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 | Operating Elevation ( feet/meters ) | 0-11,483 feet (0-3,500 meters) | Storage Temperature (°F) | 5 ~ 140 | Storage Temperature (°C) | -15 ~ 60 | Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 | Storage Elevation ( feet/meters ) | 0-49,213 feet (0-15,000 meters) | CERTIFICATIONS |
| Certifications | CE, EN 55032 Class A | RoHS | Yes | OTHERS |
| Whatâs in the Box | PDU81404 User's Manual Product Registration Card Cord Retention Tray Mounting Brackets Cable Ties Screw Kit * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide. |
|
