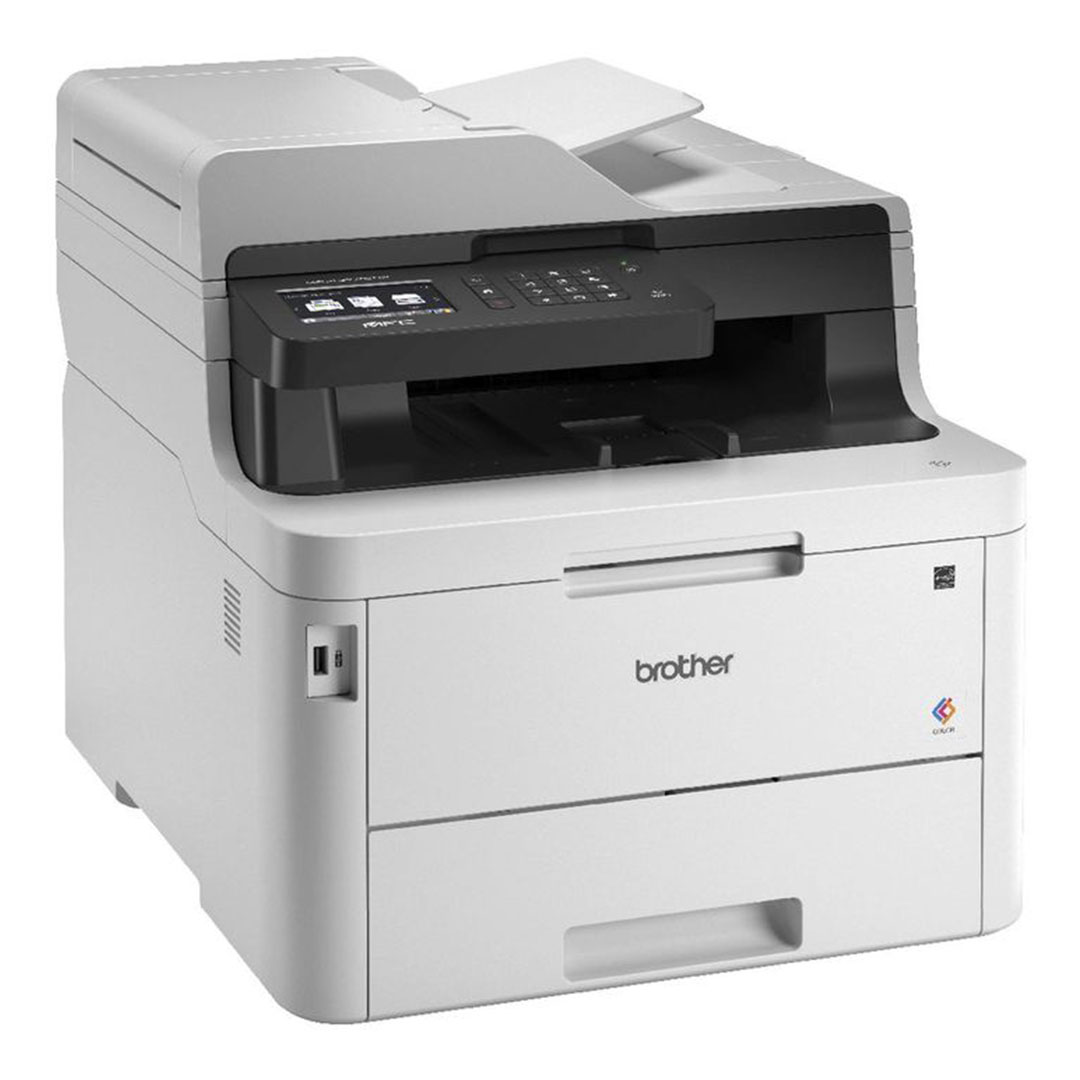

| Description | MFC-L3770CDW |
|---|
| General |
|
| Exclusive To | NA |
| Functions | Laser Printer, Laser Fax, Duplex Flatbed Colour Scanner, Flatbed Digital Laser Copier, PC Fax |
| Number of Functions | 5 in 1 |
| Droplet Size | NA |
| CPU Speed | 800MHz |
| Engine | Colour LED |
| Simultaneous Operation | Yes |
| Backup For Clock | Up to 60 hours |
| Shortcuts | 3 x 6 (18) |
| Standard Memory | 512MB |
| Display |
|
| LCD Display | 9.3cm TFT Colour Touchscreen LCD |
| LCD Display Back-Light | Yes |
| LCD Display Dimension (W x L) | 81.65mm x 45.36mm |
| Illuminated Mode Key | NA |
| Contrast | Auto/Light/Dark |
| On-Screen Programming | Yes |
| Telephone |
|
| Telephone Handset | NA |
| Speaker Volume | 3 steps plus OFF |
| Ring Volume | 3 steps plus OFF |
| Handset Volume | NA |
| Speaker Phone | NA |
| Hold-Mute Key | NA |
| Printer |
|
| Printer Colour/Mono | Colour |
| Print Speed | Up to 24 ppm MonoUp to 24 ppm Colour |
| Print Speed (Draft) | 24 ppm Mono / 24 ppm Colour |
| 2 Sided Print Speed | Up to 8/8ipm or 4/4ppm (Mono/Colour, based on ISO/IEC 24734) |
| 2 Sided Print | Yes (Automatic) |
| Print Speed (4x6) | NA |
| Emulation | PCL6, BR-Script3, PDF Version 1.7, XPS Version 1.0 |
| Printer Resolution | 600 x 600dpi, 2400dpi (2400 x 600) quality |
| Printer Compatibility | Windows 10 (32&64bit), Windows 8/8.1 (32&64bit), Windows 7 (32&64bit), Windows Server 2008 (32&64bit), Windows Server 2008 R2, Windows Server 2012 (32&64bit), Windows Server 2012 R2, Windows Server 2016 (All server Operating Systems are print only)Mac OS X 10.11.6 or greaterLinux CUPS, LPD/LPRng (x86/x64 environment)Citrix XenApp™ 6.0/ 6.5 and Citrix XenDesktop™ 5.0/ 5.6 |
| First Print Out Time | Less than 14 secs Mono/Colour (From Ready mode and standard tray)Less than 30 secs Mono/Colour (From Sleep mode and standard tray) |
| Warm Up Time | Less than 24 sec from Sleep, Less than 25 sec from Power On |
| Resident Barcodes | Code39, Interleaved 2 of 5, FIM(US-PostNet), Post Net(US-PostNet), EAN-8, EAN-13, UPC-A, UPC-E, Codabar, ISBN(EAN), ISBN(UPC-E), Code128 (set A, set B, set C), EAN128 (set A, set B, set C), Code93, GS1Databar, MSI |
| Resident Fonts | PCL:73 scalable fonts, 12 bitmap fonts, 16 bar codesPS: 66 scalable fonts |
| Quiet Mode | Yes |
| Print Paper Margin | 4.2, 4.2, 4.2, 4.2mm (top, bottom, left, right) |
| Borderless Printing | NA |
| Printer Colour Enhancement | NA |
| Carbon Copy | NA |
| Disc Print | NA |
| Paper Handling |
|
| Standard Paper Capacity | Up to 250 Sheets |
| Photo Tray Capacity | NA |
| Multi-Purpose Tray Capacity | Up to 30 sheets / 3 Envelopes |
| Manual Feed Slot | NA |
| Envelopes Input | Up to 3 envelopes face down (MP tray only) output via rear |
| Output Paper Capacity | Up to 150 Sheets Face Down (80gsm)1 sheet face-up (straight paper path) |
| ADF | Up to 50 sheets |
| Media Weights Paper Tray | 60 - 163 gsm |
| Media Weights MP Tray | 60 - 163 gsm |
| Media Weights Manual Feed Slot | NA |
| Media Weights PhotoPaper Tray | NA |
| Media Weights ADF | 60 - 105 gsm |
| Media Weights Duplex | 60 - 163 gsm |
| Media Weights Paper Tray (Option) | NA |
| Media Size Paper Tray | A4, Letter, A5, A5(Long Edge), A6, Executive |
| Media Size MP Tray | Width 76.2 to 215.9 mm, Length 116 to 355.6 mmEnvelope; COM-10, DL, C5, Monarch |
| Media Size Manual Feed Slot | NA |
| Media Size ADF | Width 105 to 215.9 mm, Length 147.3 to 355.6 mm |
| Media Size Duplex | A4 |
| Media Size Paper Tray (Option) | NA |
| Media Size Scanner Glass | Up to A4/LTR |
| Media Types Paper Tray | Plain Paper, Thin Paper, Thick Paper, Recycled Paper |
| Media Types MP Tray | Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Envelope Thin, Envelope Thick, Glossy Paper |
| Media Types Manual Feed Slot | NA |
| Media Types PhotoPaper Tray | NA |
| Media Types ADF | Plain Paper, Thin Paper, Thick Paper, Recycled Paper |
| Media Types Duplex | Plain Paper, Thin Paper, Thick Paper, Recycled Paper |
| Media Types Paper Tray (Option) | NA |
| Media Low or Out Sensor | NA |
| Media Output Sensor | NA |
| Digital Copier |
|
| Copier Speed | Up to 24 cpm MonoUp to 24 cpm Colour |
| Copier Resolution | 600 x 600 dpi |
| Reduction-Enlargement Ratio | 25 - 400 percent in 1 percent increments |
| Copier N-in-1 | 2 in 1 & 4 in 1 (A4/LTR Mono&Colour) |
| Copier Poster | NA |
| Copier Multi Sort | Yes |
| Copier Multi Stack | Up to 99 copies |
| First Copy Out Time | Less than 15/16 secs (Mono/Colour) from Ready modeLess than 31/32 secs (Mono/Colour) from Sleep mode |
| 2 Sided Copy | Duplex Scan to Duplex Print |
| Fax |
|
| Modem Speed | 33,600bps (Fax) |
| Transmission Speed | Approx: 2.5sec (ITU-T Test Chart, Std resolution, JBIG) |
| Fax Receive Stamp | Yes |
| 2 Sided Fax | Send/Receive |
| Display Fax | Receive Only |
| Colour Faxing | NA |
| Quick Scan | Approx 2.5 sec/page @A4 |
| ITU-T Group compatibility | Super G3 |
| Data Compressions | MH / MR / MMR / JBIG |
| Telstra Duet Compatible | Yes |
| Memory Backup | Yes |
| Memory Security | NA |
| Automatic Redial | Yes |
| One Touch Dials | NA |
| Speed Dials | 200 locations |
| Group Dials | Up to 20 groups |
| Chain Dialling | Yes |
| Telephone Index | Yes (with Search Key) |
| Station ID | 20 digits / 20 characters |
| Figures of One-Touch & Speed Dial | 20 digits |
| Caller ID | Yes |
| Call Waiting Caller ID | NA |
| Fax Grey Scale | 8bit / 256 levels |
| Super Fine | Yes |
| ECM | Yes |
| Out of Paper Reception | Up to 500 Pages (ITU-T Test Chart) |
| Memory Transmission | Up to 500 Pages (ITU-T Test Chart) |
| Broadcasting | Up to 250 locations |
| Manual Broadcasting | Up to 50 locations |
| Batch Transmission | Yes |
| Delayed Fax | Up to 50 |
| Dual Access | Yes |
| Next Fax Reservation | See Dual Access |
| Easy Receive-Fax Detect | Yes |
| Fax Retrieval | Yes |
| FAX-TEL Switch | Yes |
| Hook Button | NA |
| Automatic Reduction | Yes |
| Fax Forwarding | To Fax number or Email Address–ź |
| Speaker/Ring volume adjustment | 3 steps plus OFF |
| Polling | NA |
| Cover page | Yes |
| Order form | NA |
| External TAD | Socket Only |
| Fax Features |
|
| PC Fax | Send/Receive from WindowsSend only from MAC / Linux(Network / USB) |
| PC Fax Broadcasting | Up to 50 |
| Network PC FAX | Send/Receive from Windows, Send Only MAC (USB/LAN) |
| Internet Fax | Yes - T37 protocol–ź |
| Fax to Server | Yes–ź |
| Remote Access | Yes |
| Remote Setup | Windows and Mac OS X |
| Enhanced Remote Activation | Yes |
| List-Report |
|
| Quick Dial List | NA |
| Telephone Index List | Yes (Alphabetic) |
| System Set-up list | Yes |
| Help List | NA |
| Caller ID List | Yes |
| Journal Report | Up to 200 |
| Transmission Verification Report | Yes |
| Message Centre |
|
| Internal TAD | NA |
| In Coming Message Time | NA |
| User Recording Time | NA |
| Answering Machine | NA |
| Out Going Message Time | NA |
| Recording Conversation | NA |
| Digital Scanner |
|
| Scanner Colour/Mono | Colour |
| Scanner Colour Depth | 48 bit input / 24 bit output colour |
| Scanner Type | Flatbed Digital |
| Scanning Technology | Dual CIS |
| Scan Speed | Simplex: Max 1.84/2.39 Sec - 27/21 ipmDuplex: Max 1.84/3.06 Sec - 54/32 ipmIn accordance with ISO/IEC17991(Mono/Colour @200dpi A4) |
| Scanner Resolution (Optical) | From Glass: Up to 1200 x 2400 dpiFrom ADF: Up to 600 x 600 dpi |
| Scanner Resolution (Interpolated) | Up to 19,200 x 19,200 dpi |
| 2 Sided Scan | Yes - Single Pass |
| Scanning Area | 204 x 291 |
| Scanner Document Size Sensor | NA |
| Scanner Grey Scale | 256 levels |
| Scan to Email Client | Yes |
| Scan to Email Server | Yes (via SST) |
| Scan to OCR | Yes |
| Scan to Image | Yes |
| Scan to File | Yes |
| Scan to FTP | Yes |
| Scan to Network | Yes (Windows Only) |
| Scan to Media | Yes (USB memory drive) |
| Scan to Sharepoint | Yes |
| Scan to Keys | Scan To: Email Client /Email Server?/ OCR/ Image/ File/ FTP/ Network/ USB memory Drive |
| Scanner Compatibility | Windows 10 (32&64bit), Windows 8/8.1 (32&64bit), Windows 7 (32&64bit)Mac OS X 10.11.6 or greaterLinux Sane |
| Twain Compliant | Windows: TWAIN or WIA for Windows7/Windows8,8.1/Windows10Mac: TWAINLinux: SANE |
| ISIS | NA |
| PhotoCapture Centre |
|
| PictBridge | NA |
| Digital-Media Type | USB Flash Memory |
| Digital-Media Spec | USB Flash Memory (up to 64GB) |
| Image Format-Media | Photo Print: PDF version1.7, JPEG, Exif+JPEG, PRN(created by own printer driver), TIFF(scanned by Brother model), XPS version 1.0Scan to USB: JPEG/PDF |
| Removable Media Card/USB memory | Read & Write to USB memory drive |
| Software |
|
| Software Available | Windows: Scansoft Paperport 14SE and OCR, Status Monitor, Control Centre4, BRAdmin Light, BRAdmin Professional, Network Remote Setup, Driver Deployment Wizard, PC Fax Send/receiveMac: Status Monitor, Control Centre2, Remote Setup, PC Fax Send |
| Software Included | Windows: Status Monitor, Control Centre4, Network Remote SetupMac: Status Monitor, Control Centre2, Remote Setup |
| Printer Driver Functions | Windows: Poster, N in 1, Header-Footer, Watermark, Duplex, Secure Print, Toner Save ModeMac: N in 1, Duplex, Secure Print, Toner Save |
| N-up Printing | Yes (Windows/Mac) |
| Poster Printing | Yes (Windows/Mac) |
| Header and Footer Printing | Yes (Windows/Mac) |
| Watermark Printing | Yes (Windows/Mac) |
| Booklet Printing | Yes (Windows Only) |
| Archive Printing | NA |
| Remote Printer Console | Yes for PCL6 |
| Brother Solutions Interface | NA |
| Cerner Certified | NA |
| Connectivity |
|
| Interface | Hi-Speed USB 2.0, 10Base-T/100Base-TX Ethernet and IEEE 802.11 b/g/n Wireless |
| USB Interface | Hi-Speed USB 2.0 |
| Interface Parallel | NA |
| Wired Interface | 10Base-T/100Base-TX Ethernet |
| Wireless Interface | IEEE 802.11b/g/n Wireless |
| Wi-Fi Direct | Yes |
| USB Host | Yes at Front |
| Direct USB | Yes - Print/Scan |
| NFC | Yes (Card Reader / iPrint&Scan / Link to Solutions Centre / NFC Shortcut) |
| Networking |
|
| Wireless Mode | IEEE 802.11b/g/n (Infrastructure Mode) IEEE 802.11g/n (Wi-Fi Direct) |
| Wireless Security Protocols | SSID (32 chr), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), Wi-Fi Direct supports WPA2-PSK (AES) only. |
| Wireless Security | eMail: SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3, Authentication Protocol: 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos |
| Wired Security | eMail: SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3Authentication Protocol: 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos |
| Wireless Certification | Wi-Fi Certification Mark License (WPA™/WPA2™ - Enterprise, Personal), Wi-Fi Protected Setup (WPS) Identifier Mark License, Wi-Fi CERTIFIED Wi-Fi Direct |
| Wireless Setup Support Utility | Wi-Fi Protected Setup™ (WPS) |
| Network Protocols IPV4 | ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client |
| Network Protocols IPV6 | NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print/Scan) |
| Network Scan | Yes (Windows only) |
| Network Media | NA |
| Network Remote Setup | Windows and Mac OS X |
| Store Print Log to Network | Yes |
| Mobile / Web Printing |
|
| iPrintScan | Yes |
| Mopria | Yes |
| Airprint | Yes |
| Web Connect | Connect with 3rd party services |
| Google Cloud Print | Yes (Google Cloud Print 2.0) |
| Brother Apps | Connect with Brother original services |
| Network Management Utilities |
|
| Network Management | Windows: BRAdmin Light, Web Base Management, BRAdmin Professional, Network Remote SetupMac: Web Base Management, Network Remote SetupLinux: Web Base Management |
| Web Based Management | Yes |
| BRAdmin Light | Yes Windows Only–ź |
| BRAdmin Professional | Yes Windows Only–ź |
| Driver Deployment Wizard | Yes Windows Only–ź |
| WebBRAdmin | Discontinued |
| Email Alerts | E-mail Notification and E-mail Reports |
| Security |
|
| LDAP | NA |
| IP-Filter V4 | Yes (IPv4 only) |
| Active Directory Authentication | NA |
| Secure Print | Yes (Windows/Mac) |
| Secure Function Lock | Version 3, 100 users |
| Transmission Lock | NA |
| Options |
|
| Optional Paper Tray | NA |
| Optional Memory | NA |
| Optional Paper | NA |
| Optional Network Interface | NA |
| Optional Warranty | 1 or 2 or 3 Years On-Site |
| Optional Handset Battery | NA |
| Optional Handset | NA |
| Consumable |
|
| Consumables | Colour Toner Standard Yield (TN-253C/TN-253M/TN-253Y) Up to 1,300 pages*Black Toner High Yield (TN-253BK) Up to 2,500 pages*Colour Toner High Yield (TN-257C/TN-257M/TN-257Y) Up to 2,300 pages*Belt Unit: Up to 50,000 pages (2-page per job) (BU-223CL)Waste Toner Box: Up to 50,000 pages (WT-223CL)Drum Unit: Up to 18,000 pages (1-page per job) (DR-253CL)*In accordance with ISO/IEC 19798 |
| Inbox Consumables | Colour Toner Yield Up to 1,000 pages*Black Toner Yield Up to 1,000 pages*Belt Unit: Up to 50,000 pages (2-page per job) (BU-223CL)Waste Toner Box: Up to 50,000 pages (WT-223CL)Drum Unit: Up to 18,000 pages (1-page per job) (DR-253CL)*In accordance with ISO/IEC 19798 |
| Standard Yield Toner | Use Black Toner High Yield (TN-253BK)Colour Toner Standard Yield (TN-253C/TN-253M/TN-253Y) Up to 1,300 pages**In accordance with ISO/IEC 19798 |
| High Yield Toner | Black Toner High Yield (TN-253BK) Up to 2,500 pages*Colour Toner High Yield (TN-257C/TN-257M/TN-257Y) Up to 2,300 pages**In accordance with ISO/IEC 19798 |
| Super High Yield Toner | NA |
| Ultra High Yield Toner | NA |
| Drum | Belt Unit: Up to 50,000 pages (2-page per job)(BU-223CL).Waste Toner Box: Up to 50,000 pages (WT-223CL).Drum Unit: Up to 18,000 pages (1-page per job)(DR-253CL) |
| Standard Yield Ink | NA |
| High Yield Ink | NA |
| Super High Yield Ink | NA |
| Weight and Measures |
|
| Size | 410(W) x 509(D) x 414(H)mm |
| Size with Carton | 623(W) x 523(D) x 568(H)mm |
| Weight | 24.5 Kg without consumables |
| Weight with Carton | 28.8 Kg without consumables |
| Environment |
|
| Energy Star Compliant | Yes |
| Power Consumption | Peak: Average 430W, Ready: Average 75W, Sleep: 10.1W, Deep Sleep: 1.2W, Power Off: 0.04W |
| Toner Save | Yes |
| Ink Save | NA |
| Power Save | Yes |
| Noise Level | Sound Pressure Level: (Printing) Less than 47 dBA, (Ready) InAudible Sound Power Level: (Printing) Less than 6.16 B, (Ready) InAudible |
| Sleep Mode | Yes (0-50 min) |
| TEC Value | 1.3kWh/Week |
| Humidity | Operating: 20 - 80%, Storage: 10 - 95% |
| Temperature | Operating: 10 - 32°C, Storage: 0 - 40°C |
| Others |
|
| Warranty | 12 Months Return To Base |
| Recommended Monthly Print Volume | 300 to 1,500 pages |
| Carton Contents | MFC-L3770CDW, Quick Setup Guide, User€˜s Guide, CD-ROM (Windows), Power Cord, Telephone Line Cord, Telephone Line Cord Adapter, Colour Toner Yield Up to 1,000 pages*, Black Toner Yield Up to 1,000 pages*, Belt Unit: Up to 50,000 pages (2-page per job)(BU-223CL), Waste Toner Box: Up to 50,000 pages (WT-223CL), Drum Unit: Up to 18,000 pages (1-page per job)(DR-253CL)*In accordance with ISO/IEC 19798 |
| USB Cable Included | NA |
| Footer | * Declared yield value in accordance with ISO/IEC 19798, Download from Brother Solutions Centre |
