Audioengine HD3 Powered Desktop Speakers Pair - Gloss White (90023800)

Audioengine HD3 Powered Desktop Speakers Pair - Gloss White (90023800)
  • 48460_thumb_P_1551397609888
  • 48460_thumb_P_1551398029529
  • 48460_thumb_P_1551398030104
$528.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Audioengine HD3 Powered Desktop Speakers Pair - Gloss White (90023800)
  • Model Number:
    90023800
  • Brand:
  • Manufacturer Warranty:
    1 Year

Description

Audioengine HD3 Powered Desktop Speakers Pair Gloss White


Premium Bluetooth speakers that work with all your devices and apps. No network setup, passwords to enter, or buttons to push.


Audioengine HD3 Powered Desktop Speakers Pair - Gloss White (90023800)

Tech_Specs


GENERAL SPECIFICATIONS


Type

2.0 powered multimedia speaker system


Amplifier type

Dual analog class A/B monolithic


Power output

60W peak power total (15W RMS / 30W peak per channel), AES


Drivers

2.75″ aramid fiber woofers, 3/4″ silk dome tweeters

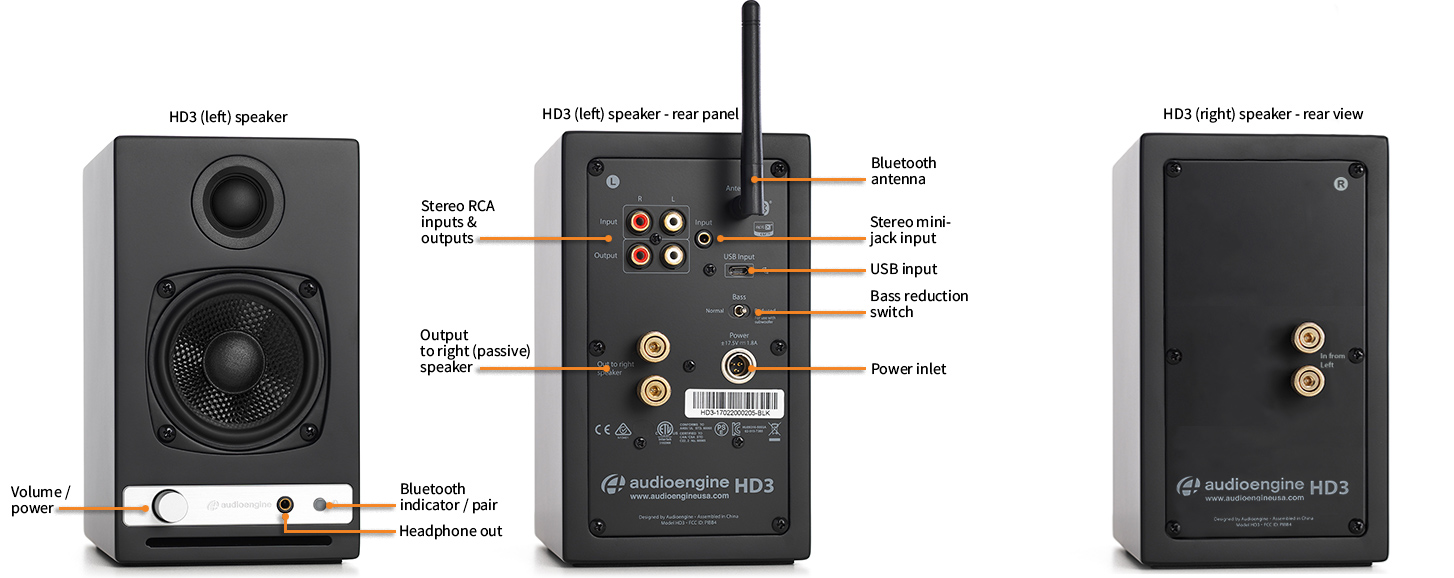

Inputs

3.5mm stereo mini-jack, stereo RCA, USB, Bluetooth


Outputs

RCA variable line-out, 3.5mm mini-jack headphone out


Mains voltages

110-240V 50/60Hz auto-switching


SNR

>95dB (typical A-weighted)


THD+N

<0.05% at all power settings


Crosstalk

<50dB


Frequency response

65Hz-22kHz +/-2.0dB


Freq. response w/bass reduction switch selected

100Hz-22kHz +/-2.0dB (-5dB down)


Input impedance

5K ohms unbalanced


Protection

Output current limiting, thermal over-temperature, power on/off transient protection


HEADPHONE AMP SPECIFICATIONS


Headphone amp type

OPA2134


Full-scale headphone output level

2.0V RMS


Output impedance

2 ohms


Recommended headphone impedance range

10 ohms to 10K ohms


BLUETOOTH SPECIFICATIONS


Internal D/A converter

PCM 5102


Input bit depth

24-bits, upsampled


Bluetooth receiver type

Bluetooth 5.0 audio


Supported codecs

aptX HD, aptX low latency, aptX, AAC, SBC


Wireless operation range

Up to 100ft (30m) typical


Input data rate

Determined by Bluetooth


Wireless latency

~30 milliseconds (ms)


USB SPECIFICATIONS


Connector type

Micro-USB


USB device class

USB 1.1 or above


Internal D/A converter

PCM 5102


Input bit depth

24-bits, upsampled


Input data rate

44.1KHz/48KHz


WEIGHTS AND MEASURES


Dimensions (each)

7″(H) x 4.25″ (W) x 5.5″ (D)


Weight (LEFT speaker)

1.8Kg/4lbs


Weight (RIGHT speaker)

1.5Kg/3.4lbs


Shipping weight

4.5kg/10lbs per pair


Shipping box dimensions

11.6″ (29.5cm)H x 11.75″ (30cm)L x 8.8″ (22.5cm)W


MATERIALS AND CONSTRUCTION


  • 18mm thick MDF cabinets with real wood veneer

  • 3/4″ (20mm) silk dome tweeters with neodymium magnets

  • 2.75″ aramid fiber woofers with advanced voice coils


FINISH OPTIONS

  • Satin Black

  • High-Gloss White

  • Walnut

  • Cherry


ENVIRONMENTAL REQUIREMENTS


  • Operating temperature: 32 degrees F to 95 degrees F

  • Non-operating temperature: -4 degrees F to 113 degrees F

  • Relative humidity: 5% to 95% non-condensing


CUSTOM COMPONENTS

Audioengine designs and manufactures our own speaker drivers and other critical components. In other words, the HD3 is not a box-built system with off-the-shelf parts, but includes custom-designed components constructed to our specifications. What we do not fabricate directly inside our factories we have made to our specific designs. Parts such as circuit boards, transformers, magnets, and wiring harnesses, for example.


EFFICIENT INTEGRATED DESIGN

The speaker cabinets, drivers, innovative bass port designs, amplifiers, and passive crossovers are all critically tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires less power than passive speakers and a separate integrated amplifier or similar A/V components. We build all this goodness into the left speaker cabinet to make it super-easy to connect your smartphone, tablet, computer, TV, network player or any other audio product.


BUILT-IN B1 AND D1

We have taken features from two of our best-selling products, the B1 Bluetooth Receiver and the D1 24-bit DAC, and combined some of this circuitry with advanced speaker components to achieve a complete high-end analog and digital audio system.


HIGH-QUALITY BLUETOOTH AUDIO

The Bluetooth built into the HD3 powered speakers features aptX HD coding which is an advanced Bluetooth audio codec with very impressive sound. And even if your phone or tablet does not have aptX HD, the HD3 Bluetooth solution is backwards-compatible with SBC and AAC codecs, as well as standard aptX, so you can wirelessly stream music from any Bluetooth-enabled device and still enjoy all your music. High-fidelity Bluetooth aptX HD that really works and sounds great. Here is why:


Extended wireless range

Most Bluetooth implementations have very limited range, typically within just one room. But with careful signal management circuitry and antenna tuning, we offer a superior solution that has up to 3 times the range of standard Bluetooth for multi-room use, with no degradation in audio quality.


24-bit DAC

The HD3 Bluetooth receiver and USB input both utilize the PCM 5102 DAC, widely known for its low-noise and high-fidelity. The PCM 5102 is used as an upsampling DAC and will pad all bit depths to 24-bits, achieving a higher signal-to-noise ratio and lower noise floor. Due to the high signal-to-noise specs of the PCM 5102, the fact that digital signal is upsampled to 24-bits as well as the added benefit of onboard triple redundancy power source conversion and filtering the HD3 Bluetooth implementation presents impressive low noise and low distortion characteristics with a noticeable improvement over other Bluetooth devices.


HD3 HEADPHONE AMPLIFIER

The HD3 contains a high-performance headphone amplifier based on the OPA2134 low-noise opamp. This amp is able to provide low-impedance, high-fidelity audio and a 2-volt output which easily drives a wide range of headphones.


AMPLIFIER DESIGN

The amplifiers in powered Audioengine speakers are located in the left speaker and are a conservatively-rated class A/B analog monoblock design. This is a more traditional speaker/amplifier configuration which provides excellent quality audio and greater flexibility. All circuit boards for the power and preamp sections are vertically mounted for maximum mechanical shock protection.


DRIVER DESIGNS

Audioengine uses audiophile-quality, ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives very smooth response. The woofers are aramid fiber woven glass composite with rubber surrounds. Aramid fiber is obviously very strong, which means the woofer retains its shape when being driven at high levels.


FURNITURE-GRADE FINISHES

The HD3 cabinets are available in several handsome finishes, including walnut and cherry veneers as well as satin black paint, offering a wide choice for complementing room furnishings. Also included are detachable grills that add further aesthetic advantages as they are firmly held in place with hidden neodymium magnets for a clean look.


SHEILDING

Each of the HD3’s speaker drivers are directly magnetically-shielded.
