Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5 m

VIDEO OUTPUT

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5 m

VIDEO

Max. Data Rate

18Gbps (6Gbps per lane)

Max. Pixel Clock

600 MHz

Compliance

HDMI (3D, Deep Color, 4K/60Hz); 4K HDR
HDCP2.2/2.3 Compatible
Consumer Electronics Control (CEC)*

*The CEC signals are only bypassed from the transmitter unit to the receiver unit and do not support local output.

Max. Resolution

4096 x 2160 @ 60Hz (4:4:4)
  3840 x 2160 @ 60Hz (4:4:4)

Max. Resolutions / Distance

Up to 4K x 2K @ 60Hz (4:4:4) @40m (HDBaseT3 Certified Cat 6a U/FTP cable / ATEN’s tailor-made HDBaseT cable)

AUDIO

Input

1 x HDMI Type A Female (Black)
1 x Stereo Audio ( mini stereo Jack female , Green)

Output

1 x HDMI Type A Female (Black)
1 x Stereo Audio ( mini stereo Jack female , Green)

CONNECTORS

Unit To Unit

1 x RJ-45 Female (HDBaseT)

Power

1 x DC Jack (Black) with locking
1 x RJ-45 Female, POH PD & PSE supported

CONTROL

RS-232 Channel

Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

IR Channel

1 x Mini Stereo Jack Female, (Bi-directional, Black)
30K ~56KHz full range transmission

USB Channel

1 x USB2.0 Type B Female (White, Host)
2 x USB2.0 Type A Female (White, Device)
Transmission data bandwidth: Up to 300Mbps

Power Consumption

DC12V:6.01W:92BTU/h (Tx)
DC12V:7.09W:118BTU/h (Rx)

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

SWITCHES

Selection

1 x Slide Switch - T (Be a Transmitter) / R (Be a Receiver) selection

Mode Selection

1 x Slide Switch - HDMI Audio embed or De-embed ON/OFF selection
1 x Slide Switch - POH PD or PSE selection
1 x Slide Switch - RS232 Command or Bypass mode selection

Firmware Upgrade

1 x Slide Switch - ON/OFF

LEDS

Power

TX: 1 x DC in Power supplied (Green) & 1 x POH Power supplied (Orange)

RX: 1 x DC in Power supplied (Green) & 1 x POH Power supplied (Orange)

NOTE: The TX or RX LED lights to indicate which role the VE1833 is set to by DC Power or POH.

Link

1 x TX Link status (Transmitter, Yellow Green)
1 x RX Link status (Receiver, Yellow Green)

Video Output

1 x RX HDMI OUT status (Receiver, Orange)

Video Input

1 x Tx HDMI IN status (Transmitter, Orange)

ENVIRONMENTAL

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

PHYSICAL PROPERTIES

Housing

Metal

Weight

0.64 kg ( 1.41 lb )

Dimensions (L x W x H) with bracket

16.94 x 14.69 x 3.00 cm
  (6.67 x 5.78 x 1.18 in.)

Dimensions (L x W x H) without bracket

16.60 x 12.49 x 2.90 cm
  (6.54 x 4.92 x 1.14 in.)

OTHERS

Package Contents

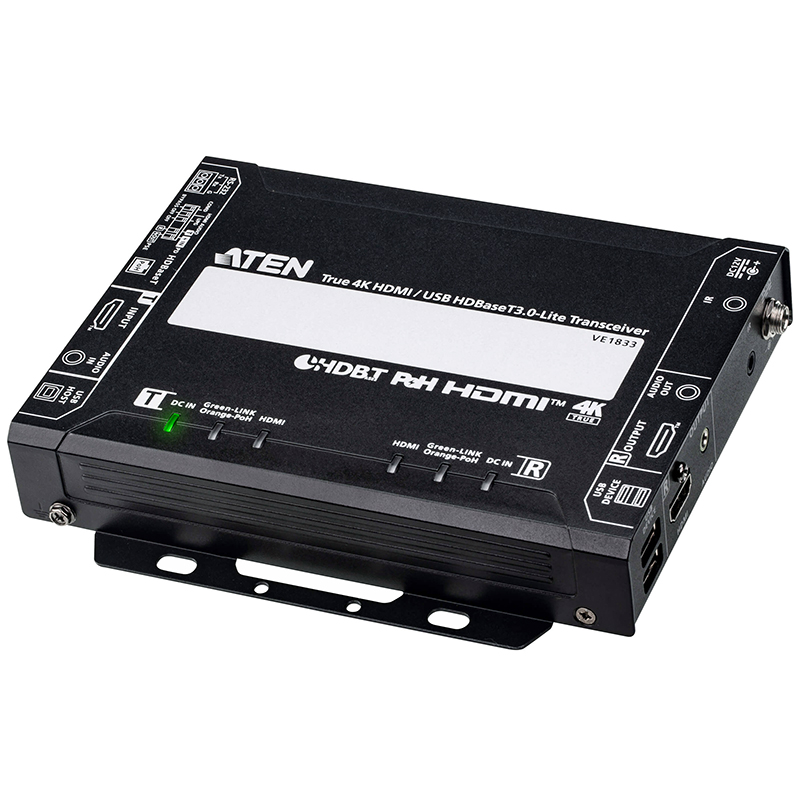

1 x VE1833 True 4K HDMI / USB HDBaseT 3.0-Lite Transceiver with PoH

1 x power adapter and power cord

1 x RS-232 terminal block

1 x user instructions
