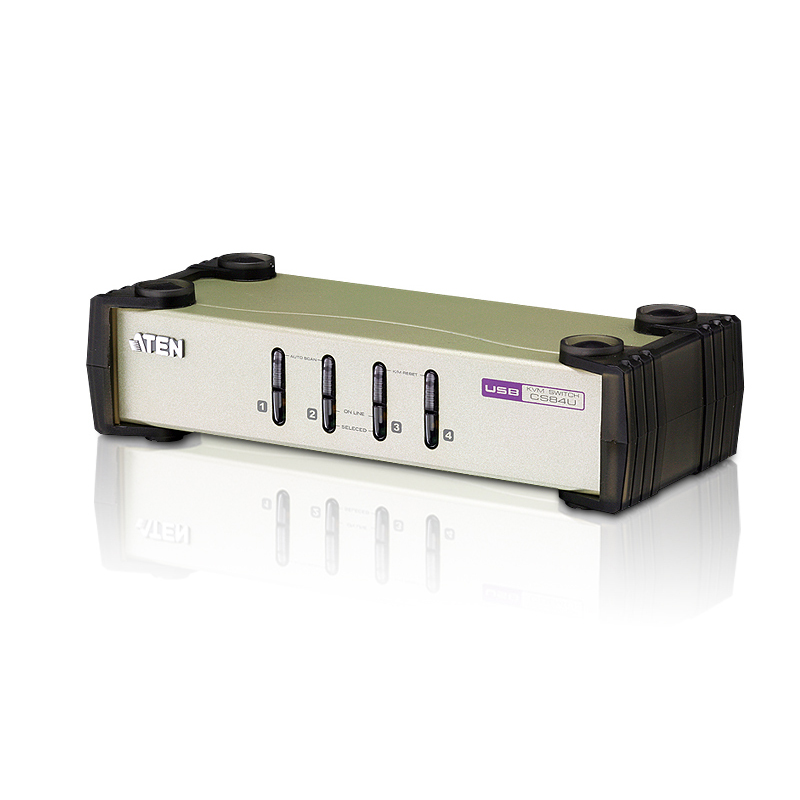

Aten 4 Port USB & PS/2 VGA KVM Switch (CS84U)

Aten 4 Port USB & PS/2 VGA KVM Switch (CS84U)
  • 50117_thumb_P_1552528019970
  • 50117_thumb_P_1552528034330
  • 50117_thumb_P_1552528034110
$139.0 Question Mark
Was: $149.0  WAS Tips    Save $10.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Aten 4 Port USB & PS/2 VGA KVM Switch (CS84U)
  • Model Number:
    CS84U-AT
  • Brand:
  • Warranty Period:
    2 Year

Description

Aten 4 Port USB & PS/2 VGA KVM Switch (CS84U)


  • Superior video quality - 2048 x 1536; DDC2B

  • Computer selection via front panel pushbuttons, hotkeys, and mouse

  • Dual Interface - supports computers with PS/2 or USB keyboards and mice

  • Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports




Specifications


Computer Connections4
Port SelectionHotkey, Pushbutton, USB Mouse
Connectors
Console Ports1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
KVM Ports4 x SPHD-18 Female (Yellow)
Power1 x DC Jack
Switches
Selected4 x Pushbutton
LEDs
Online4 (Orange)
Selected4 (Green)
Emulation
Keyboard / MousePS/2, USB
Video2048 x 1536 @ 60 Hz; DDC2B
Scan Interval3, 5, 10, 20 seconds (default: 5 secs.)
Power ConsumptionDC5V:0.45W:11BTU
Environmental
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.77 kg ( 1.7 lb )
Dimensions (L x W x H)21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


Package Contents

  • 1x CS84U PS/2-USB KVM Switch

  • 2x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft)

  • 2x Custom KVM Cable (VGA, USB, PS/2; 1.8m/6ft)

  • 1x User Instructions
