Aten 4 Port PS/2-USB VGA/Audio Rack KVM Switch (CS1754)

4‑port PS/2‑USB KVM switch with VGA (2048×1536, DDC2B), audio, auto PS/2/USB detection, OSD/hotkey/pushbutton selection, cascadeable to 64 PCs, metal rack‑mountable, DC5V power.

$493.50

or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time : Question Mark

Delivery: Question Mark

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

Wish Add to Wishlist

Buy Now, Pay Later:

Your Store

Your store is set to:

Check live stock level

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Aten 4 Port PS/2-USB VGA/Audio Rack KVM Switch (CS1754)

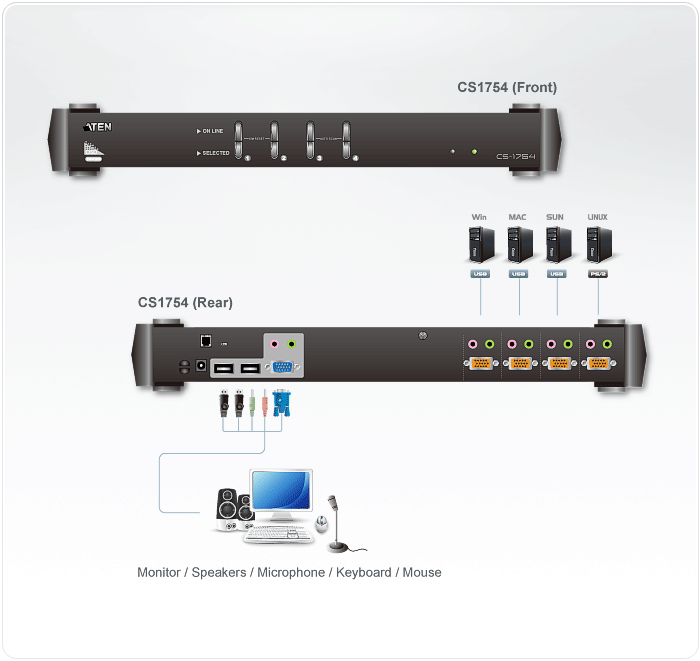

One USB console controls 4 computers; Cascadable up to 3 levels - provides up to 64 computers.
Superior video quality - up to 2048 x 1536; DDC2B.
Computer selection via front panel pushbuttons, hotkeys and OSD.
Auto PS/2 and USB interface detection and audio enabled

Aten 4 Port PS/2-USB VGA/Audio Rack KVM Switch (CS1754)

Specifications

Computer Connections
Direct	4
Maximum	64 (via Cascade)
Port Selection	OSD, Hotkey, Pushbutton
Connectors
Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	4 x SPHD-15 Female (Yellow) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade	1 x RJ- 11 Female
Power	1 x DC Jack (Black)
Switches
Ports	4 x Pushbutton
Firmware Upgrade	1 x Slide
Reset	1 x Semi-recessed Pushbutoon
LEDs
Online	4 (Orange)
Selected	4 (Green)
Power	1 (Blue)
Emulation
Keyboard / Mouse	USB
Video	2048 x 1536; DDC2B
Scan Interval	1-255 seconds (default: 5 secs.)
Power Consumption	DC5V:1.63W:12BTU
Environmental
Operating Temperature	0-50˚C
Storage Temperature	-20-60˚C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	2.64 kg ( 5.81 lb )
Dimensions (L x W x H)	43.72 x 16.10 x 4.40 cm (17.21 x 6.34 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents

1x 4-Port PS/2-USB KVM Switch
1x Firmware Upgrade Cable
1x Power Adapter
1x Rack Mount Kit
1x User Instructions

Product Name:

Aten 4 Port PS/2-USB VGA/Audio Rack KVM Switch (CS1754)
Model Number:

CS1754Q9-AT-U
Brand:

Aten
Warranty Period:

2 Year
