Aten 2 Port USB 2.0 VGA Audio KVMP Switch with OSD (CS1732BC-AT)

2‑Port USB 2.0 KVMP Switch with VGA (2048×1536 @ 60 Hz), DDC2B, Video DynaSync EDID storage, PS/2 & USB keyboard/mouse support, audio, hotkey/pushbutton/OSD selection, 2‑port USB hub, metal housing, DC 5.3 V power.

Aten 2 Port USB 2.0 VGA Audio KVMP Switch with OSD (CS1732BC-AT)
  • 50119_thumb_P_1552527717502
  • 50119_thumb_P_1552527739219
  • 50119_thumb_P_1552527739891
$149.00
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup
    • Chermside New Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Icon 3 Out Of Stock
    • Brendale Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Crows Nest New Out Of Stock
    • Carlingford New Out Of Stock
    • Hurstville New Out Of Stock
    • Mosman New Out Of Stock
    • Parramatta New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Aten 2 Port USB 2.0 VGA Audio KVMP Switch with OSD (CS1732BC-AT)


  • Superior video quality; 2048 x 1536; DDC2B

  • Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse

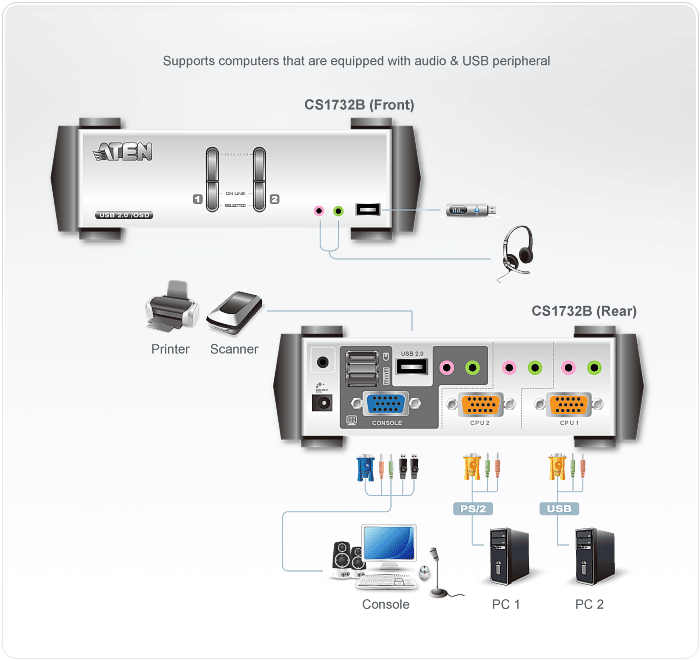

  • Supports computers with PS/2 or USB keyboard and mouse configurations

  • Video DynaSyncâ„¢ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution




Specifications


Computer Connections2
Port SelectionHotkey, Pushbutton, OSD, Mouse
Connectors
Console Ports2 x USB Type A Female (Black)
1 x HDB-15 Female (Blue)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
KVM Ports2 x SPHD-15 Female (Yellow)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade1 x 4-conductor 3.5mm Jack (Black)
Power1 x DC Jack
USB Hub2 x USB Type A Female (White)
Switches
Selected2 x Pushbutton
LEDs
Online / Selected2 (Orange)
USB Link2 (Green)
Emulation
Keyboard / MousePS/2; USB
Video2048 x 1536 @ 60Hz; DDC2B
Scan Interval1-255 Seconds (Default: 5 sec.)
Power ConsumptionDC5.3V:2.53W:37BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.55 kg ( 1.21 lb )
Dimensions (L x W x H)14.00 x 8.80 x 5.55 cm
(5.51 x 3.46 x 2.19 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


Package Contents

  • 1x 2-Port USB 2.0 KVMPâ„¢ Switch

  • 2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)

  • 2x OSD/Hotkey Stickers

  • 1x Firmware Upgrade Cable

  • 1x Power Adapter

  • 1x User Instructions



  • Product Name:
    Aten 2 Port USB 2.0 VGA Audio KVMP Switch with OSD (CS1732BC-AT)
  • Model Number:
    CS1732B-AT-U
  • Brand:
    Aten Aten
  • Warranty Period:
    2 Year
