Aten 17in LCD VGA 8 Port KVM (CL-5708MA)

Aten CL5708MA 8‑port VGA/USB KVM with 17" LED‑backlit LCD, slide‑away housing, exclusive keyboard illumination, pushbutton OSD, daisy‑chain up to 31 units (256 PCs), USB peripheral support, built‑in mouse port.

Aten 17in LCD VGA 8 Port KVM (CL-5708MA)
  • 50147_thumb_P_1552520820693
  • 50147_thumb_P_1552520844200
  • 50147_thumb_P_1552520844142
$1,898.50
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup
    • Chermside New Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Icon 3 Out Of Stock
    • Brendale Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Crows Nest New Out Of Stock
    • Carlingford New Out Of Stock
    • Hurstville New Out Of Stock
    • Mosman New Out Of Stock
    • Parramatta New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Aten 17in LCD VGA 8 Port KVM (CL-5708MA)


  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

  • Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing

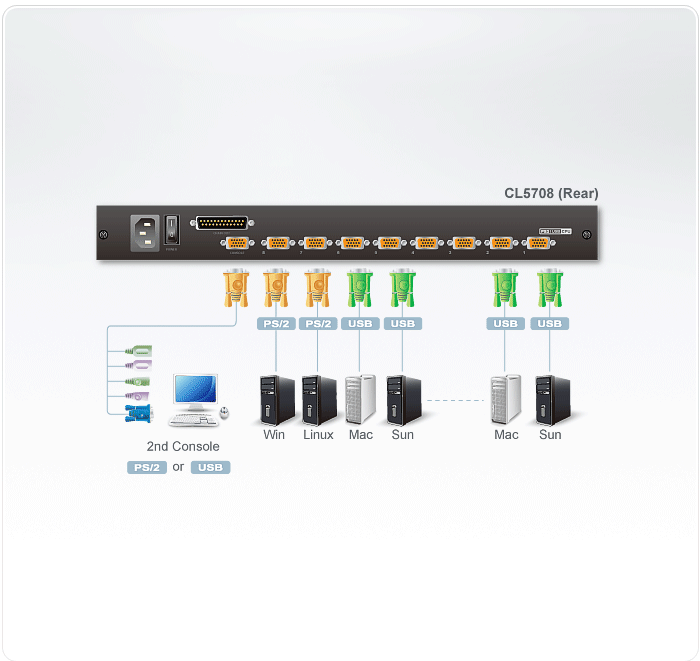

  • Daisy-chain up to 31 additional units - control up to 256 computers from a single console

  • USB port allows each computer to access USB peripherals*




Specifications


FunctionCL5708MCL5708N
Computer Connections
Direct88
Maximum256 (via Daisy-chain)256 (via Daisy-chain)
Port SelectionOSD, Hotkey, PushbuttonsOSD, Hotkey, Pushbuttons
Connectors
External Console Ports1 x SPHD-18 Male (Yellow)1 x SPHD-18 Male (Yellow)
KVM Ports8 x SPHD-15/17 Female (Yellow)8 x SPHD-15/17 Female (Yellow)
Daisy Chain Ports1 x DB-25 Male1 x DB-25 Male
Firmware Upgrade1 x RJ-11 Female1 x RJ-11 Female
Power1 x 3-prong AC Socket1 x 3-prong AC Socket
External Mouse Port1 x USB Type A Female1 x USB Type A Female
Switches
Port Selection2 x Pushbutton2 x Pushbutton
Station Selection2 x Pushbutton2 x Pushbutton
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Switch1 x Switch
Power1 x Rocker Switch1 x Rocker Switch
LCD On/Off1 x LED Pushbutton1 x LED Pushbutton
LCD Adjustment4 x Pushbutton4 x Pushbutton
LEDs
Port ID2 (Yellow)2 (Yellow)
Station ID2 (Yellow)2 (Yellow)
Online8 (Orange)8 (Orange)
Power1 (Dark Green)1 (Dark Green)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)		1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
Panel Spec
LCD Module17" TFT-LCD19" TFT-LCD
Resolution1280 x 1024 @ 75 Hz1280 x 1024 @ 75 Hz
Response time5 ms5 ms
Viewing Angle170° (H), 160° (V)170° (H), 160° (V)
Pixel Pitch0.264 mm x 0.264 mm0.294 mm x 0.294 mm
Support Color16.77M colors16.77M colors
Contrast Ratio1000 : 11000 : 1
Luminance250 cd/m²250 cd/m²
Emulation
Keyboard / MousePS/2, USBPS/2, USB
Video
Input Video Resolution1920 x 1200 @ 60 Hz1920 x 1200 @ 60 Hz
Second console1920 x 1200 @ 60 Hz1920 x 1200 @ 60 Hz
Scan Interval1-255 seconds1-255 seconds
Maximum Input Power Rating100-240V AC, 50/60Hz, 1A100-240V AC, 50/60Hz, 1A
Power ConsumptionAC110V:23.9W:125BTU
AC220V:25.1W:130BTU		AC110V:26.1W:135BTU
AC220V:27.2W:140BTU
Environmental
Operating Temperature0-50°C0-50°C
Storage Temperature-20-60°C-20-60°C
Humidity0-85% RH, Noncondensing0-85% RH, Noncondensing
Physical Properties
HousingMetal + PlasticMetal + Plastic
Weight13.47 kg ( 29.67 lb )13.39 kg ( 29.49 lb )
Dimensions (L x W x H)48.00 x 64.27 x 4.40 cm
(18.9 x 25.3 x 1.73 in.)		48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


Package Contents

  • 1x CL5708 LCD KVM Switch with standard Rack Mount Kit

  • 2x Custom KVM Cable (VGA, USB; 1.8m/6ft)

  • 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)

  • 1x Firmware Upgrade Cable

  • 1x Power Cord (AC Power Models)

  • 1x User Instructions


  • Product Name:
    Aten 17in LCD VGA 8 Port KVM (CL-5708MA)
  • Model Number:
    CL5708M-ATA-AU
  • Brand:
    Aten Aten
  • Warranty Period:
    2 Year
