Memory

Memory: 4GB SO-DIMM DDR4

Memory Module Pre-installed: 4GB (1 x 4GB)

Total Memory Slots: 2

Memory Expandable up to: 16GB (2 x 8GB)

*Support mixed capacity

Flash Memory: 8GB eMMC

Storage

Storage not included

Drive Bays: 2

M.2 Drive Slots: 4

Compatible Drive Type:

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

M.2 2280 NVMe

M.2 PCIe Interface: PCIe 3.0 x1

Maximum Drive Bays with Expansion Unit: 10

Supports Hot Swappable Drives: ✓

External Ports

Expansion:

2 x USB 3.2 Gen 2 ( 10Gbps ) Type-A

1 x USB 2.0 Type-A

Network: 2 x 5 Gigabit Ethernet (5G/2.5G/1G/100M)

Multimedia Output: 1 x HDMI 2.0b

Others

System Fan: 1 x 70mm

Infrared Receiver: ✓

Power Supply Unit / Adapter: 65W x1

Input Power Voltage: 100V to 240V AC

Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

Operation

Power Consumption:

21 W (Operation);

13.5 W (Disk Hibernation);

0.79 W (Sleep Mode)

Noise Level: 17.7dB (HDD idle)

Operation Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -20°C~70°C (-4°F~158°F)

Humidity: 5% to 95% RH

Size and Weight

Size: 163.5 (H) x 108 (W) x 230 (D) mm

Weight: 2 kg / 4.4 lb

Package Weight: 3.18 kg / 7.01 lbs

Package Size: 304(H) x285(W) x195(D) mm

Package Contents

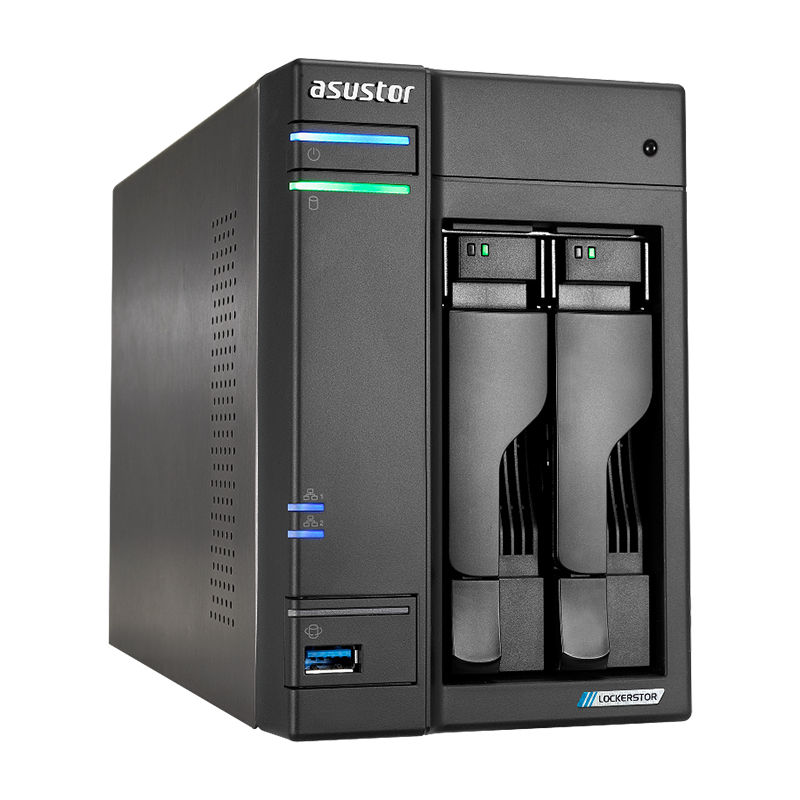

AS6702T v2 Unit x1

Quick Installation Guide

AC Power Cord x1

AC Power Adapter x1

RJ-45 LAN Cable(Cat 5e) x2

Flat Head Screw (for 3.5" HDD) x8

Flat Head Screw (for 2.5" HDD) x8
