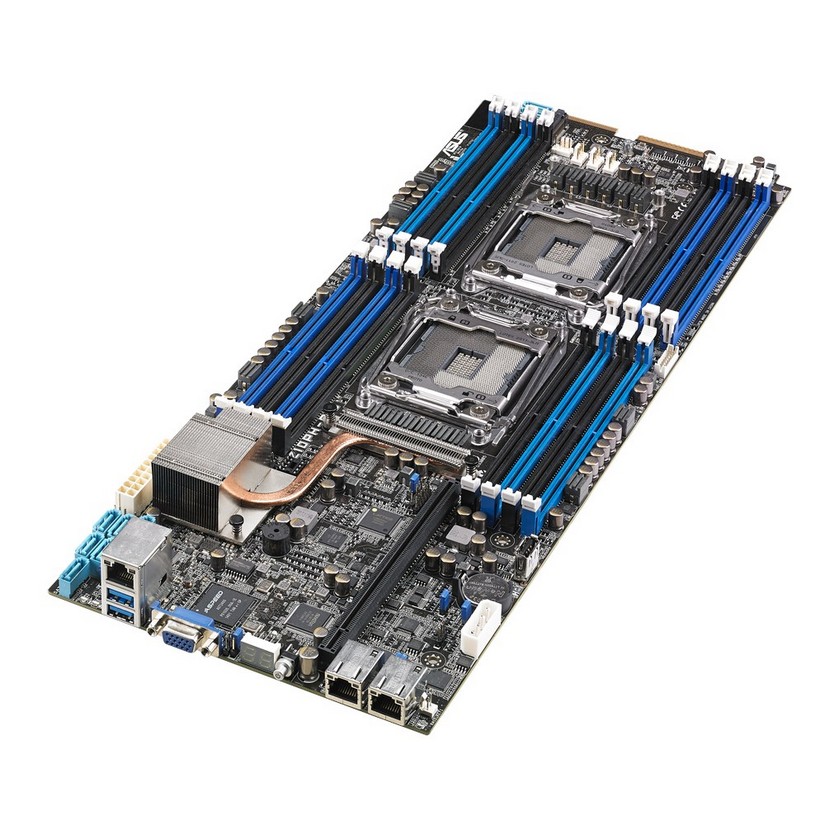

ASUS Z10PH-D16 LGA 2011-3 Half SSI Server Motherboard (Z10PH-D16)

ASUS Z10PH-D16 LGA 2011-3 Half SSI Server Motherboard (Z10PH-D16)
  • 38012_thumb_P_1486101461850
  • 38012_thumb_P_1486101484867
  • 38012_thumb_P_1486101484980
$917.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post Out Of Stock
    QLD Pickup
    • Southport Out Of Stock
    • Hillcrest Icon 3 Out Of Stock
    • Brendale Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Parramatta New Out Of Stock
    • Mosman New Out Of Stock
    • Hurstville New Out Of Stock
    • Goulburn New Out Of Stock
    • Carlingford Xmas Break
    • Crows Nest New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Icon 3 Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    • Holden Hill Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Pickup
    • Glenorchy Out Of Stock

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isnā€™t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    ASUS Z10PH-D16 LGA 2011-3 Half SSI Server Motherboard (Z10PH-D16)
  • Model Number:
    Z10PH-D16
  • Brand:
    Asus Asus
  • Warranty Period:
    3 Year

Description




High Density and Best Streamlined Airflow with Optimized Efficiency

The ASUS Z10PH-D16 is a server board designed to provide high-density computing power, with efficiency and best streamlined airflow. Z10PH-D16 supports the latest CPU technology to maximize processing performance, along with premium components for premium efficiency and flexible expansion ā€ so it is ideal as a computing node in HPC and IPDC markets, or in any applications that require true high density.



Official Product LinkOpen Link
Processor / System Bus2 x Socket R3 (LGA 2011-3; Narrow type 56x94mm;The maximum length of the heatsink screw thread is 3.7mm.)
IntelĀ® XeonĀ® processor E5-2600 v4 product family
IntelĀ® XeonĀ® processor E5-2600 v3 product family
QPI 6.4 / 8.0 / 9.6 GT/s
Core LogicIntelĀ® C612 PCH
MemoryTotal Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 1024GB LRDIMM
Memory Type :
DDR4 2400 /2133 /1866/1600/1333 RDIMM*
DDR4 2400 /2133 /1866/1600/1333 LRDIMM*
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion SlotsTotal Slot : 1
Slot Location 1 : PCI-E x24 (Gen3 X16 + X8 Link) *1
Form FactorHalf SSI (18.04Āx 6.86Ā)
ASUS FeaturesFAN speed control
Rack Optimized (Dedicated for Rack)
ASWM Enterprise
StorageSATA Controller :
IntelĀ® C612
6 x SATA3 6Gb/s ports
or
5 x SATA3 6Gb/s ports + 1 x M.2 connector *2
IntelĀ® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSIĀ® MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional)
ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
Networking2 x IntelĀ® I210AT + 1 x Mgmt LAN
GraphicAspeed AST2400 with 32MB VRAM
On Board I/O1 x TPM header
1 x PSU Power Connector (20-pin)
1 x Internal A Type USB Port*3
1 x USB 2.0 pin header , Up to 1 Devices
4 x Fan Header , 4pin
1 x SMBus *4
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB
1 x Device Power Connector

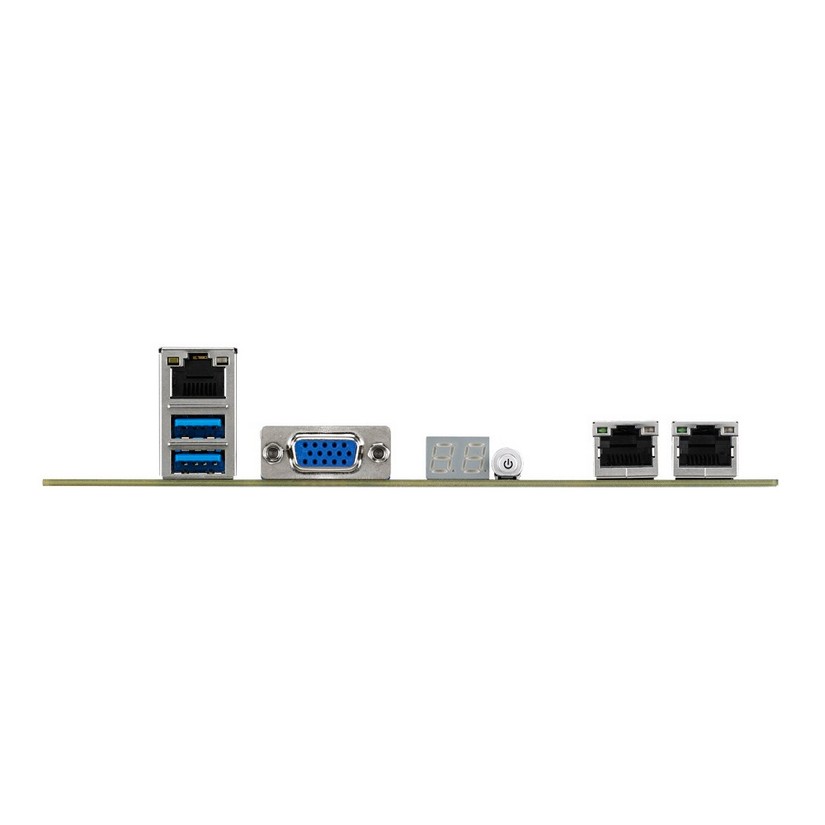

Back I/O Ports2 x USB 3.0
1 x VGA Port
2 x GbE LAN
1 x Mgmt LAN
Management SolutionASWM Enterprise
ASMB8-iKVM for KVM-over-Internet
EnvironmentOperation temperature: 10ʒ ~ 35ʒ
Non operation temperature: -40ʒ ~ 70ʒ
Non operation humidity: 20% ~ 90% ( Non condensing)
MonitoringCPU Temperature
Fan RPM
Note

* Please refer to www.asus.com for latest momory AVL
update. 2400/2133 MT/s@1DPC only

*1: by riser card
 1 x PCI-E x16 (X16 Gen3 Link) and 1 x PCI-E x8 (X8 Gen3
 Link)**
 ** Support InfiniBand and 10G upgrade kit (Optional)
 PEM-FDRĀPEB-10G/57840-2SĀPEB-10G/57811-1S
 (Riser card default ships with Z10PH-D16 motherboard)

*2: SATA 6Gb/s & PCI-E Gen3 x4 link
 3 x SATA 6Gb/s ports switch to golden finger (for system design)

*3: Internal A Type USB2.0 Port

*4: Integrated in golden finger


* Specifications are subject to change without notice.
  * Specifications may vary.
  * The product picture(s) is only for your reference, it may differ from the actual product.
