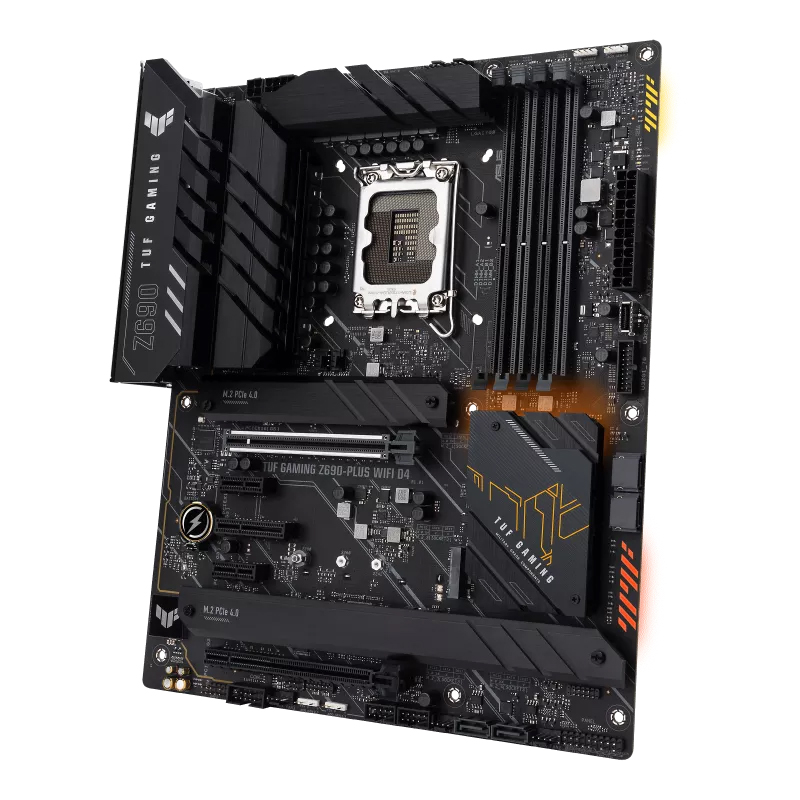

Chipset

Z690

Memory

4 x DIMM, Max. 128GB,   DDR4   5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)

/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133   Non-ECC, Un-buffered Memory*

Dual Channel Memory   Architecture

Supports Intel® Extreme   Memory Profile (XMP)

OptiMem II

*Actual Memory   frequency support depends on the CPU types and DRAM modules, for more   information refer to www.asus.com for the Memory QVL (Qualified Vendors   Lists).

Graphics

1 x DisplayPort**

1 x HDMI® port***

* Graphics   specifications may vary between CPU types. Please refer to www.intel.com for   any updates.

** Supports max.   4K@60Hz as specified in DisplayPort 1.4

***Supports 4K@60Hz as   specified in HDMI 2.1.

**** VGA resolution   support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel® 12th Gen   Processors*

1 x PCIe 5.0 x16 slot

Intel® Z690 Chipset**

1 x PCIe 3.0 x16 slot   (supports x4 mode)

1 x PCIe 3.0 x4 slot

2 x PCIe 3.0 x1 slots

* Please check PCIe   bifurcation table in support site.

** Supports Intel®   Optane Memory H Series on PCH-attached PCIe slot

Storage

Supports 4 x M.2 slots   and 4 x SATA 6Gb/s ports

Intel® 12th Gen   Processors

M.2_1 slot (Key M),   type 2242/2260/2280/22110

- Intel® 12th Gen   processors support PCIe 4.0 x4 mode

Intel® Z690 Chipset**

M.2_2 slot (Key M),   type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

M.2_3 slot (Key M),   type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M),   type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage   Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage   Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet

1 x Intel® 2.5Gb   Ethernet

TUF LANGuard

Wireless & Bluetooth

Intel® Wi-Fi 6

2x2 Wi-Fi 6 (802.11   a/b/g/n/ac/ax)

Supports 2.4/5GHz   frequency band

Bluetooth v5.2

USB

Rear USB:Total 8 ports

1 x USB 3.2 Gen 2x2   port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports   (2 x Type-A)

5 x USB 3.2 Gen 1 ports   (4 x Type-A + 1 x USB Type-C®)

Front USB:Total 7 ports

1 x USB 3.2 Gen 2   connector (supports USB Type-C®)

1 x USB 3.2 Gen 1   header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers   support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround   Sound High Definition Audio CODEC*

- Supports:   Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to   24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Rear optical S/PDIF   out port

- Premium audio   capacitors

- Dedicated audio PCB   layers

- Audio Cover

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2   port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports   (2 x Type-A)

5 x USB 3.2 Gen 1 ports   (4 x Type-A + 1 x USB Type-C®)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb   Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out   port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan   header

1 x 4-pin CPU OPT Fan   header

1 x 4-pin AIO Pump   header

4 x 4-pin Chassis Fan   headers

Power related

1 x 24-pin Main Power   connector

1 x 8-pin +12V Power   connector

1 x 4-pin +12V Power   connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2   connector (supports USB Type-C®)

1 x USB 3.2 Gen 1   header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers   support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2   headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio   header (AAFP)

1 x 20-3 pin System   Panel header with Chassis intrude function

1 x Thunderbolt™ header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital   power design with DrMOS)

- Enhanced DRAM   Overcurrent Protection

- ESD Guards

- TUF LANGuard

- Overvoltage   Protection

- Safeslot

- Stainless-Steel Back   I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red],   DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- CPU Socket lever   protector

- ProCool

- Pre-mounted I/O   shield

- SafeDIMM

AURA Sync

- AURA RGB header

- Addressable Gen 2   headers

Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise   Cancelation

AI Suite 3

- Performance And Power   Saving Utility

TurboV EVO

EPU

DIGI+ VRM

TUF GAMING CPU-Z

DTS Audio Processing

MyAsus

Norton Anti-virus   software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ   Mode

BIOS

192 (128+64) Mb Flash   ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving   antenna

2 x M.2 Rubber Packages

1 x M.2 SSD screw   package

1 x TUF GAMING sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification   card

1 x User guide

Operating System

Windows® 11   64-bit, Windows® 10 64-bit

Form Factor

ATX
  30.5cm x 24.4cm
