Home  > PC Parts  > Computer Parts  > Motherboards  > AMD Threadripper > Asus Pro WS TRX50-Sage WiFi CEB Motherboard (PRO WS TRX50-SAGE WIFI)

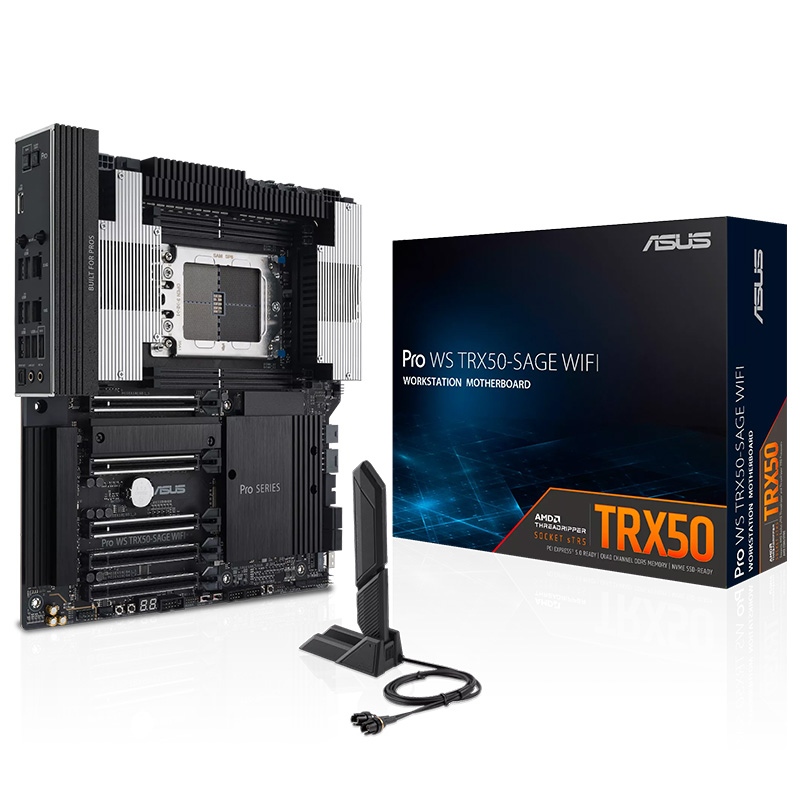

Asus Pro WS TRX50-Sage WiFi CEB Motherboard (PRO WS TRX50-SAGE WIFI)

Asus Pro WS TRX50-Sage WiFi CEB Motherboard (PRO WS TRX50-SAGE WIFI)
  • AMD-Threadripper-Asus-Pro-WS-TRX50-Sage-WiFi-CEB-Motherboard-PRO-WS-TRX50-SAGE-WIFI-9
  • AMD-Threadripper-AMD-Pro-WS-TRX50-Sage-WiFi-Motherboard-PRO-WS-TRX50-SAGE-WIFI-5
  • AMD-Threadripper-AMD-Pro-WS-TRX50-Sage-WiFi-Motherboard-PRO-WS-TRX50-SAGE-WIFI-6
  • AMD-Threadripper-AMD-Pro-WS-TRX50-Sage-WiFi-Motherboard-PRO-WS-TRX50-SAGE-WIFI-4
  • AMD-Threadripper-AMD-Pro-WS-TRX50-Sage-WiFi-Motherboard-PRO-WS-TRX50-SAGE-WIFI-7
$1,699.0
Was: $1,735.0  WAS Tips    Save $36.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Asus Pro WS TRX50-Sage WiFi CEB Motherboard (PRO WS TRX50-SAGE WIFI)
  • Model Number:
    PRO WS TRX50-SAGE WIFI
  • Brand:
  • Warranty Period:
    3 Year

Description

AMD-Threadripper-AMD-Pro-WS-TRX50-Sage-WiFi-Motherboard-PRO-WS-TRX50-SAGE-WIFI-1
AMD-Threadripper-AMD-Pro-WS-TRX50-Sage-WiFi-Motherboard-PRO-WS-TRX50-SAGE-WIFI-2
AMD-Threadripper-AMD-Pro-WS-TRX50-Sage-WiFi-Motherboard-PRO-WS-TRX50-SAGE-WIFI-3



SPECIFICATIONS:

CPU

AMD Socket sTR5 for Ryzen™  Threadripper™  PRO 7000 WX-Series and Ryzen™    Threadripper™ 7000 Series Processors *

Chipset

AMD TRX50 Chipset

Memory

4 x DIMM slots, DDR5, ECC Registered Memory*

4 Channel Memory Architecture

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Expansion Slots

AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors

2 x PCIe 5.0 x16 slots

1 x PCIe 5.0 x16 slot(x8 mode)

1 x PCIe 4.0 x16 slot

1 x PCIe 4.0 x16 slot(x4 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)

Storage

Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD TRX50 Chipset

M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

Ethernet

1 x Marvell® AQtion 10Gb Ethernet

1 x Intel® I226-LM 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for   details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 9 ports)

1 x USB 20Gbps port (1 x USB Type-C®)

6 x USB 10Gbps ports (6 x Type-A )

2 x USB 2.0 ports (2 x Type-A )

Front USB (Total 7 ports)

1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+)

1 x USB 5Gbps header supports 2 additional USB 5G ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek ALC1220P Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C®)

6 x USB 10Gbps ports (6 x Type-A)

2 x USB 2.0 port (2 x Type-A)

1 x Wi-Fi Module

1 x Marvell® AQtion 10Gb Ethernet port

1 x Intel® 2.5Gb Ethernet port

2 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x W_PUMP+ header

4 x 4-pin Chassis Fan headers

2 x 4-pin VRM Fan header (with VRM FAN onboard)

Power related

2 x 24-pin Main Power connectors

2 x 8-pin +12V Power connectors

2 x 8-pin PCIe to CPU power connectors

1 x 6-pin PCIe Power connector

1 x 8-pin PCIe Power connector

Storage related

3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

1 x SlimSAS port

USB

1 x USB 20Gbps connector supports USB Type-C®

1 x USB 5Gbps header supports 2 additional   USB 5Gbps ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x BMC header1 x COM Port header

1 x USB4 header1 x FlexKey button

1 x Front panel audio header (F_AUDIO)

1 x Start button

1 x Safe boot button

1 x ReTry button1 x LN2 mode jumper

1 x Slow mode switch

1 x SPI TPM header (14-1pin)

1 x 10-1 pin system panel header

1 x Chassis intrusion header

1 x Thermal Sensor header

Special Features

ASUS Q-Design

- Q-Code

- M.2 Q-Latch

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink and onboard thermal pads

- VRM heatsink design with active fans

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMMBespoke

Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

Software Features

ASUS Exclusive Software

Armoury Crate- Fan Xpert 4

ASUS CPU-Z

IT Management software supported

- ASUS Control Center Express(ACCE)

Adobe Creative Cloud (Free Trial)

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUSTeK. EzFlash UtilityFlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE (UEFI mode)

Accessories

Cables

2 x SATA 6Gb/s cables

1 x CPU 8-pin to PCIe 8-pin adapter cable   package

1 x Thermistor cable pack

Miscellaneous

1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

1 x M.2 Q-Latch package(2 in 1)

2 x M.2 Rubber Packages

1 x Q-connectorDocumentation

1 x ACC Express Activation Key Card

1 x QSG

Operating System

Windows® 11 64-bit

Form Factor

CEB Form Factor

12 inch x 11 inch

(30.5 cm x 28.3 cm)
