Memory

36GB unified memory

Storage

512GB SSD

Display Support

M5 Max

Supports up to five external displays over any combination of Thunderbolt and HDMI   ports:

Five displays: Four displays up to a native resolution of 6K at 60Hz or 4K at 165Hz, plus a fifth display with up to 5K at 60Hz over HDMI Up to three   displays: Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz, plus a third display with up to 5K at 60Hz over HDMI

Supports up to four external displays over a single Thunderbolt port

Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds

Supports variable refresh rate (VRR), HDR and multichannel audio

Audio

Built-in speaker

3.5-mm headphone jack with advanced support for high-impedance headphones

HDMI port supports multichannel audio output

Connections and expansion

Four Thunderbolt 5 (USB‑C) ports with support for:

Thunderbolt 5 (up to 120 Gbps)

USB 4 (up to 120 Gbps)

USB 3 (up to 10 Gbps)

DisplayPort 2.1

Two USB 3 (USB‑A) ports (up to 5 Gbps)

HDMI 2.1 port

10Gb Ethernet

3.5-mm headphone jack

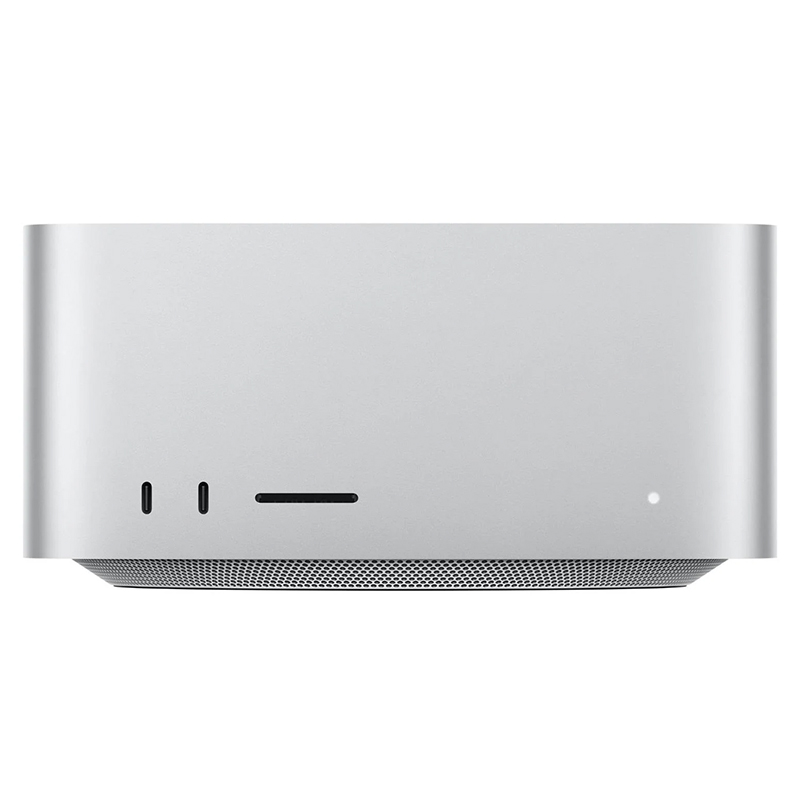

On front (M5 Max):

Two USB-C ports (up to 10 Gbps)

SDXC card slot (UHS-II)

Communications

Wireless

Apple   N1 wireless networking chip

Wi‑Fi 7 (802.11be)

Bluetooth® 6

Thread networking technology

Ethernet

10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ-45 connector)

Size and Weight

Height: 9.5 cm (3.7 inches)

Width: 19.7 cm (7.7 inches)

Depth: 19.7 cm (7.7 inches)

Weight (M5 Max): 2.7 kg (6.0 pounds)

Electrical and Operating Requirements

Line voltage: 100–240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power: 480W

Operating temperature: 10° to 35° C (50° to 95° F)

Storage temperature: –40° to 47° C (–40° to 116° F)

Relative humidity: 5% to 95% noncondensing

Operating altitude: Tested up to 5,000 metres (16,400 feet)

Operating System

macOS

In the Box

Mac Studio

Power cord
