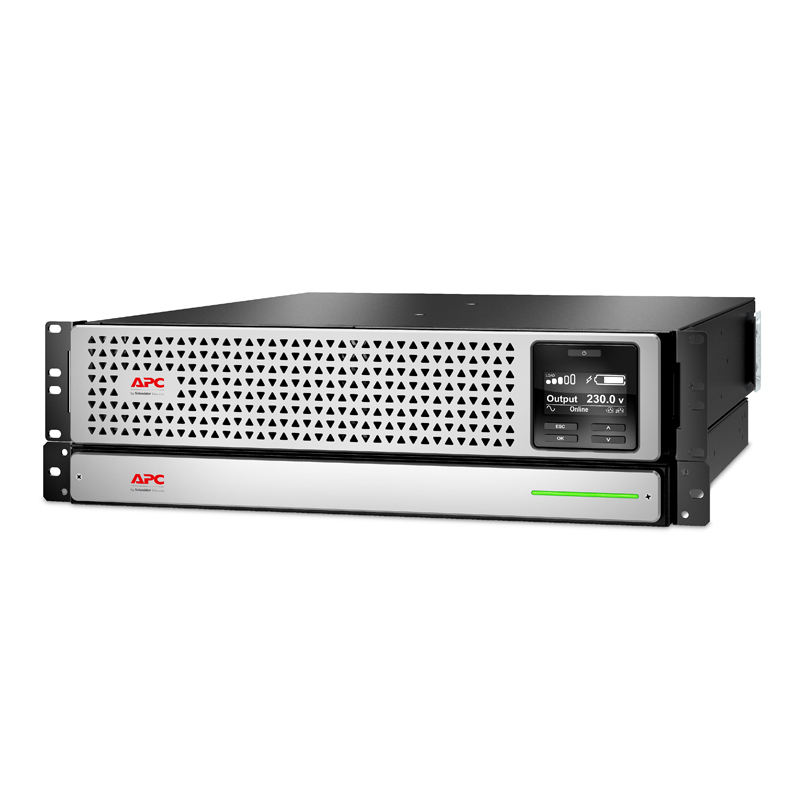

APC SRTL1500RMXLI Smart-UPS 1500VA 2U Rack Mount 230V UPS

APC SRTL1500RMXLI Smart-UPS 1500VA 2U Rack Mount 230V UPS
  • 47371_thumb_P_1552615166458
  • 47371_thumb_P_1552615181988
  • 47371_thumb_P_1552615182696
  • 47371_thumb_P_1552615182575
$4,093.5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    APC SRTL1500RMXLI Smart-UPS 1500VA 2U Rack Mount 230V UPS
  • Model Number:
    SRTL1500RMXLI
  • Brand:
  • Manufacturer Warranty:
    5 Year

Description

APC SRTL1500RMXLI Smart-UPS 1500VA 2U Rack Mount 230V UPS


High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Comms cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card


APC SRTL1500RMXLI Smart-UPS 1500VA 2U Rack Mount 230V UPS

Specifications


Output

Output power capacity
1.35 KWatts / 1.5 kVA
Max Configurable Power (Watts)
1.35 KWatts / 1.5 kVA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Output Connections
(8) IEC 320 C13 (Battery Backup)
Bypass
Built-in Bypass

Input

Nominal Input Voltage
230V
Input frequency
40 - 70 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
50-150 (40% Load), 80 - 150V
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Li-ion
Typical recharge time
6hour(s)
Nominal Battery Voltage
48V
Expected Battery Life (years)
5 - 10
Extendable Run Time
1

Communications & Management

Interface Port(s)
RJ-45 Serial, Smart-Slot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlotâ„¢ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
340Joules

Physical

Maximum Height
128mm, 12.8CM
Maximum Width
432mm, 43.2CM
Maximum Depth
590mm, 59.0CM
Rack Height
3U
Net Weight
30.53KG
Shipping weight
46.86KG
Shipping Height
445mm, 44.5CM
Shipping Width
600mm, 60.0CM
Shipping Depth
850mm, 85.0CM
Color
Black
Units per Pallet
6.0

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
50.0dBA
Online thermal dissipation
450.0BTU/hr
Protection Class
IP 20

Conformance

Approvals
CE, CE Mark, EAC, RCM, VDE
Standard warranty
5 year repair or replace

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
Battery Directive
Compliant
