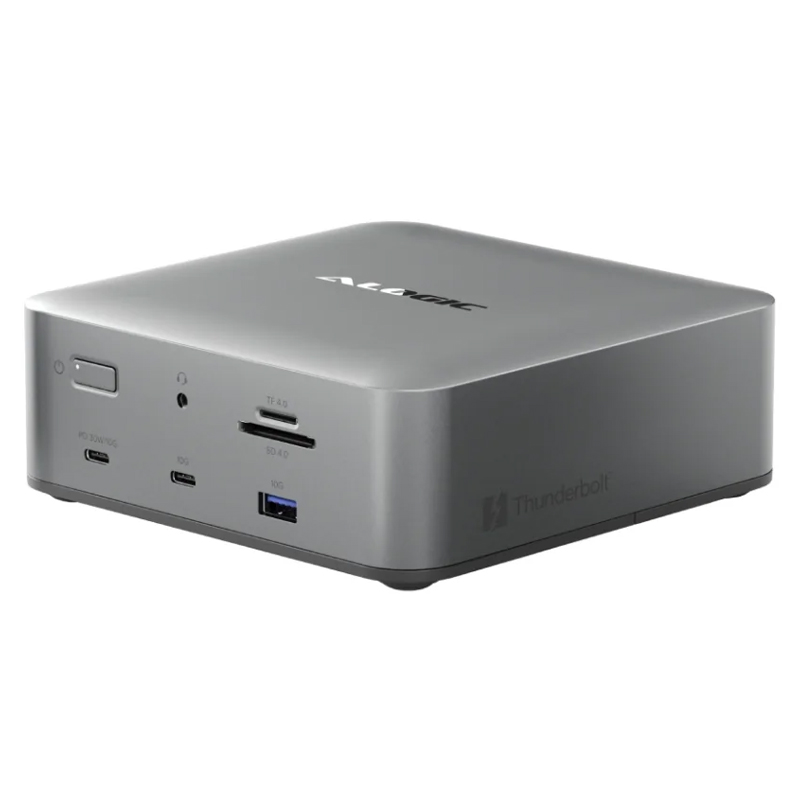

Physical Characteristics | Product Dimensions: 140 x 140 x 50mm (W x D x H) |
Colour | Space Grey and Black |
Weight (product) | 870g |
Materials | ABS |
Inputs | 1 x Thunderbolt 5 port for connection to a computer May be used with non-Thunderbolt computers that support USB-C DisplayPort Alternate for connection of up to 2 displays. |
Outputs | 1x Thunderboltâ„¢ 5 Downstream Port40Gbps | 1x 8K / 2x 4K 60Hz Max 2x HDMI 2.1 (max 7680x4320 60Hz) 1x USB-C 3.2 Gen 2 (10G) with 30W PD for device charging 1x USB-C 3.2 Gen 2 (10G) 1x USB-A 3.2 Gen 2 (10G) 2x USB-A 3.2 Gen 1 (5G) 1x 3.5mm Combo Audio / Microphone Jack (384kHz) 1x RJ45 Ethernet 2.5Gbps 1x SD Card Reader (SD 4.0 / UHS-II - 312Mbps) 1x Micro SD/TF Card Reader (SD 4.0 / UHS-II - 312Mbps) 1x M.2 (NVMe PCIe Gen4x4, Max 6000MB/s) |
SSD Support | Supports M.2 NVMe PCIe SSDs with M key and B+M keyed connectors (M keyed/SATA drives not supported). PCIe Gen4x4, 6000MB/s max read/write speed. Supports 2280, 2260, 2242, 2230 sized drives. NB: Drives with wrap around heatsinks are not recommended due to clearance constraints underneath the SSD. If considering installing a drive with a heatsink in this docking station, check the dimensions carefully before purchasing the drive. (Heat spreaders on the top side of drives should not cause any installation issues). |
Charging | Docking station provides up to 140W of power to connected hosts that support USB-C Power Delivery. · Computers with PD 3.0 SPR charging support: Up to 20V⎓4.8A/96W · Computers with PD 3.1 EPR charging support: Up to 28V⎓5A/140W Supports dynamic power allocation to distribute power to the connected laptop and peripherals according to real time demand. |
Video Resolution | Up to 3x 4K or 2x 8K independent video outputs dependent on the capabilities of the connected computer. *See resolution support tables for maximum outputs for computers with differing capabilities |
Audio Support | Analogue audio stereo output plus mono microphone/line in Supports 24/32-bit, 44.1/48/96/192/384KHz sample rates Automatic CTIA/OMTP mode detection and switching |
Power Adapter | Supplied with 21V⎓8.57A, 180W power adapter and 4x mains power leads to suit AU/NZ, EU, UK and US power outlets. Power Adapter Input Voltage: 100-240VAC Mains Supply Frequency: 50-60 Hz |
Package Includes | 1 x FlashDock 5 Docking Station 1 x 80cm Thunderbolt 5 USB-C Cable 1 x 180W Power Adapter 4 x 1m Power Cables (AU/EU/UK/US) 1 x User Manual |
Device Compatibility | Windows, MacOS, ChromeOS Computers Some feature limitations apply when used with computers that do not support Thunderbolt 5. The limitations may include reduced speeds, a reduced number of supported displays and SSD storage not being available to the computer. Refer to the Feature Availability for non-Thunderbolt 5 Computers section below for an indication of the features that may be affected for different types of computer. |
Environmental | Operating Temperature: 0-35°C Storage Temperature: -10-60°C Operating Humidity: 10-80% Storage Humidity: 5-90% (RH, no condensation) |
Compliance | Intel Thunderbolt, FCC, CE, RCM, RoHS |
