Perfect Doorphone choice for daily life

• The security that comes with being able to control who comes into your building

• along with the ability to verbally and visually confirm their identity is immeasurable.

• Akuvox's Video Doorphone R20A enables you to easily monitor an entrance door or

• gate and gives you the peace of mind knowing that your facility is more secure.

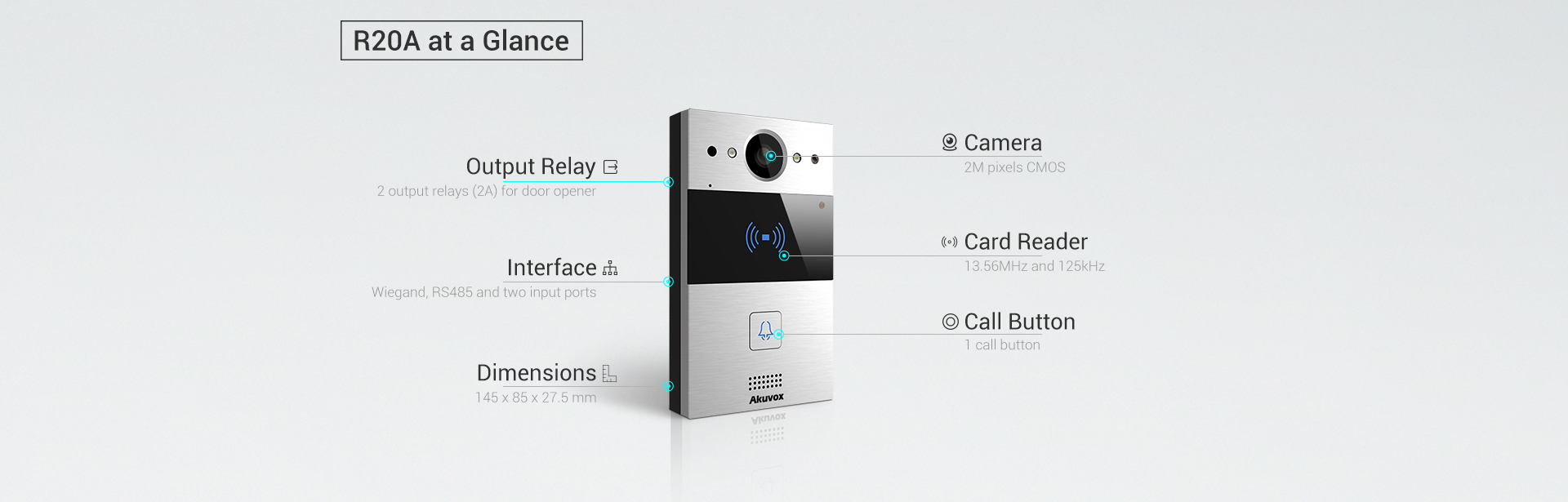

At a Glance

• ⚫ Vandal resistant body, with a flush button;

• ⚫ Wide-angle camera: 110º (H), 58º (V);

• ⚫ PoE (IEEE802.3af, Power-over-Ethernet);

• ⚫ Two-way audio communication over IP networks with Echo Cancellation feature;

• ⚫ Complies with SIP standard for easy integration in every SIP capable PBXes;

• ⚫ Complies with ONVIF standard for easy integration with any network surveillance system;


Physical & Power

⚫ Front panel: Aluminum alloy

⚫ Camera: 2M pixels, automatic lighting

⚫ Button: 1 call button

⚫ Light sensor: Support

⚫ Infrared sensor: Support

⚫ Wiegand port: Support

⚫ RS485 port: Support

⚫ RF card reader: 13.56MHz (with NFC) & 125kHz

⚫ Relays out: 2

⚫ Inputs: 2

⚫ Microphone: 1

⚫ Speaker: 1

⚫ Ethernet port: RJ45, 10/100Mbps adaptive

⚫ 802.3af Power-over-Ethernet

⚫ 12V DC connector (if not using PoE)

⚫ Water-proof & Dust-proof: IP65

⚫ Installation: Flush-mounted or Wall-mounted

⚫ Flush-mounted DIM: 189x120x56.5mm

⚫ Wall-mounted DIM: 145x85x27.5mm

⚫ Working Humidity: 10~90%

⚫ Working Temperature: -30°C ~ +60°C

⚫ Storage Temperature: -40°C ~ +70°C

Audio

⚫ SIP v1 (RFC2543), SIP v2 (RFC3261)

⚫ Narrowband audio codec: G.711a, G.711μ

⚫ Wideband audio codec: G.722

⚫ DTMF: In-band, out-of-band DTMF (RFC2833),SIP Info

⚫ Echo Cancellation

⚫ Voice Activation Detection

⚫ Comfort Noise Generator

Video

⚫ Sensor: 1/2.7”, CMOS

⚫ Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

⚫ Video codec: H.264

⚫ Video resolution: up to 1920x1080

⚫ Max. image transfer rate: 1080p – 30fps

⚫ Viewing angle: 110°(H) / 58°(V)

⚫ High intensity IR LEDs for picture lighting during dark hours with internal light sensor

⚫ Compatible to 3rd-Party-Video components,e.g. NVRs

Door Entry Feature

⚫ Relays controlled individually by DTMF tones

⚫ Camera permanently operational

⚫ Auto-night mode with LED illumination

⚫ White balance: auto

⚫ Minimum illumination: 0.1LUX

Networking & Protocol

⚫ Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP Deployment & Maintenance

⚫ Auto-Provisioning

⚫ Web management portal

⚫ Web-based packet dump

⚫ Configuration backup / restore

⚫ Entry log export

⚫ Access table export / import

⚫ Firmware upgrade

⚫ System logs (include door access logs)

Application Scenario

⚫ Office door phone with on-site or hosted IP-PBX

⚫ Remote site entry over Internet

⚫ Apartment/flat intercom with door access con
