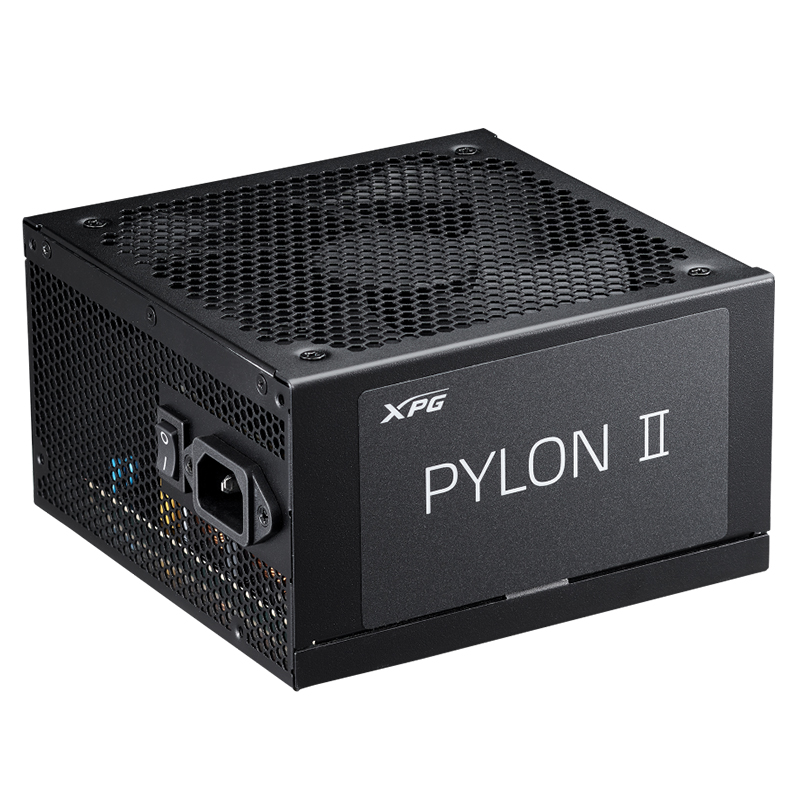

ADATA XPG Pylon II 650W 80+ Bronze Non-Modular ATX 3.1 Power Supply (PYLONII650B-BKCAU)

Compact 150×150×86 mm PSU, 80 Plus Bronze, ATX v3.1. 0.99 PFC, 100‑240 V/10 A, 50‑60 Hz. Protections: OVP/OPP/SCP/OCP/UVP/OTP/NLO/SIP. 1527 W peak, +5V/3.3V/12V/‑12V/5Vsb outputs (20/20/54/0.3/3 A). 135 mm FDB fan 2300 RPM, MTBF 100k h, 1.8 kg.

ADATA XPG Pylon II 650W 80+ Bronze Non-Modular ATX 3.1 Power Supply (PYLONII650B-BKCAU)
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-Non-Modular-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-7
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-3
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-2
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-4
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-5
$59.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    ADATA XPG Pylon II 650W 80+ Bronze Non-Modular ATX 3.1 Power Supply (PYLONII650B-BKCAU)
  • Model Number:
    PYLONII650B-BKCAU
  • Brand:
  • Warranty Period:
    5 Year

Description

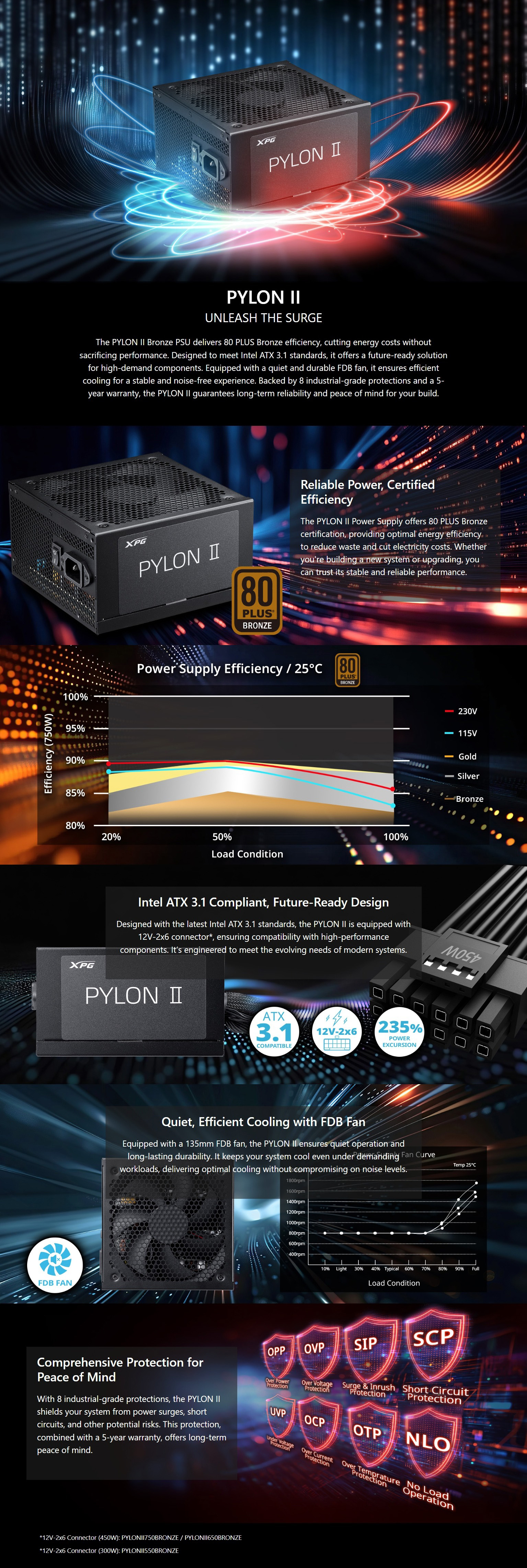

Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-1



SPECIFICATIONS:

Dimensions (L x W x H)

150 x 150 x 86 mm

80 Plus Rating

BRONZE

ATX Version

Intel ATX v3.1

Protections

OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP

PFC

0.99

Input Voltage

100-240V

Input Current

10A

Input Frequency

50-60Hz

DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

+5V/+3.3V: 20A, +12V: 54A, -12V: 0.3A, +5Vsb: 3A

Power Excursion

1527W (up to 235% of PSU’s rated power for 100µs)

Operating Temperature

50°C

Fan Size

135mm

Fan Bearing

FDB (Fluid Dynamic Bearing)

Fan Speed

2300±10 RPM

MTBF

100,000 hours at 25

ATX 24 Pin Connector

1

EPS 8 Pin Connector

2

Molex 4 Pin Connector

2

12V-2x6 / 12VHPWR Connectors (450W)

1

SATA Connector

6

Weight

1.8 kg
