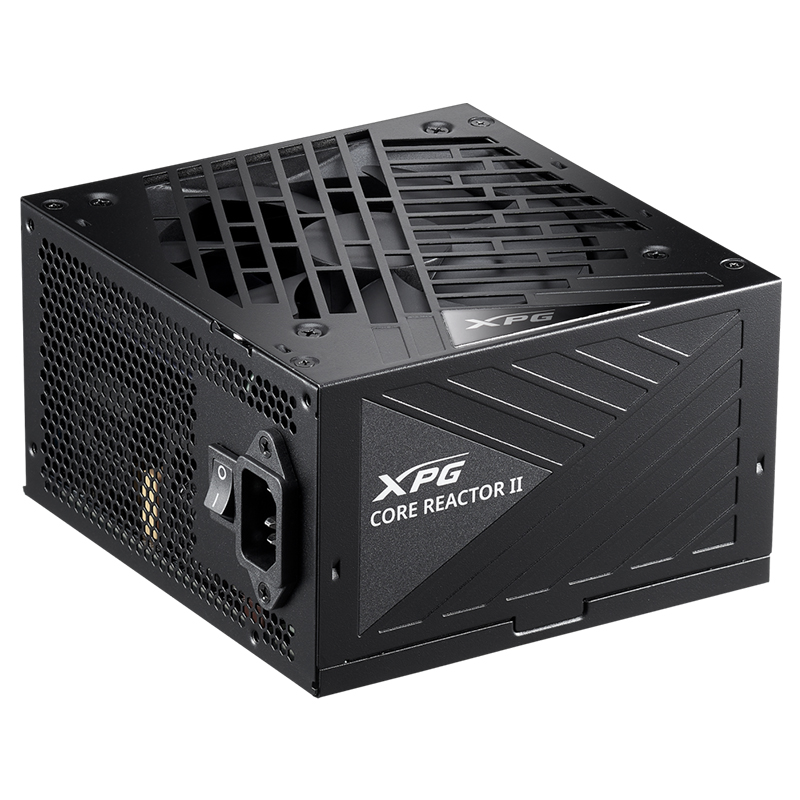

ADATA XPG 750W Core Reactor II 80+ Gold PCIe 5.0 ATX 3.1 Fully Modular Power Supply (COREREACTORII750G-BKCAU)

140×150×86 mm ATX 3.1 PSU, 80 Plus Gold, 1762 W power‑excursion, 22 A @5 V/3.3 V, 62.5 A @12 V, 120 mm FDB fan 2400 RPM, MTBF 100k h, OCP/OVP/OPP/OTP/UVP/SCP/NLO/SIP protections, full CE/FCC/TUV certifications.

ADATA XPG 750W Core Reactor II 80+ Gold PCIe 5.0 ATX 3.1 Fully Modular Power Supply (COREREACTORII750G-BKCAU)
  • Power-Supply-PSU-ADATA-XPG-750W-Core-Reactor-II-80-Gold-PCIe-5-0-ATX-3-1-Fully-Modular-Power-Supply-COREREACTORII750G-BKCAU-7
  • Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-4
  • Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-2
  • Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-3
  • Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-5
$179.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and consent to receive email updates. You can unsubscribe at any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    ADATA XPG 750W Core Reactor II 80+ Gold PCIe 5.0 ATX 3.1 Fully Modular Power Supply (COREREACTORII750G-BKCAU)
  • Model Number:
    COREREACTORII750G-BKCAU
  • Brand:
  • Warranty Period:
    10 Year

Description

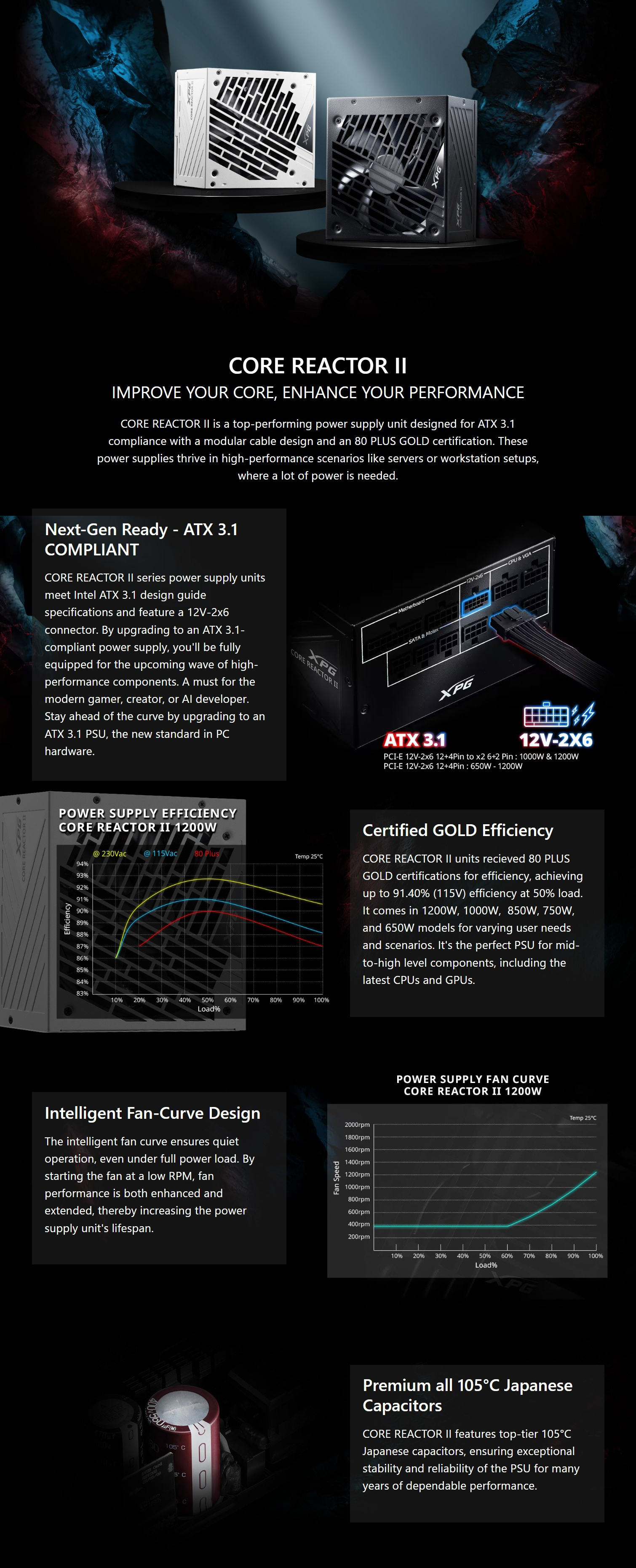

Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-1



SPECIFICATIONS:

Dimensions (L x W x H)

140 x 150 x 86mm

80 Plus Rating

GOLD

ATX Version

ATX 3.1

Protections

OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

Certification

CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

PFC

> 0.99

Input Voltage

100-240V

Input Current

10A

Input Frequency

47Hz–63Hz

DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

+5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A

Power Excursion

1762W (*up to 235% of the PSU's rated power for 100μs)

Operating Temperature

50°C

Fan Size

120mm FDB Fan

Fan Bearing

FDB (Fluid Dynamic Bearing)

Fan Speed

2400 RPM

MTBF

100K hours at full load

ATX 24 Pin Connector

1

EPS 8 Pin Connector

2

PCI-E 6+2 Pin Connector

6

Molex 4 Pin Connector

4

12V-2x6 / 12VHPWR (12+4) Connector (600W)

1

SATA Connector

8

Weight

Product+cables1596g+1254g

with Package:3.1kg
