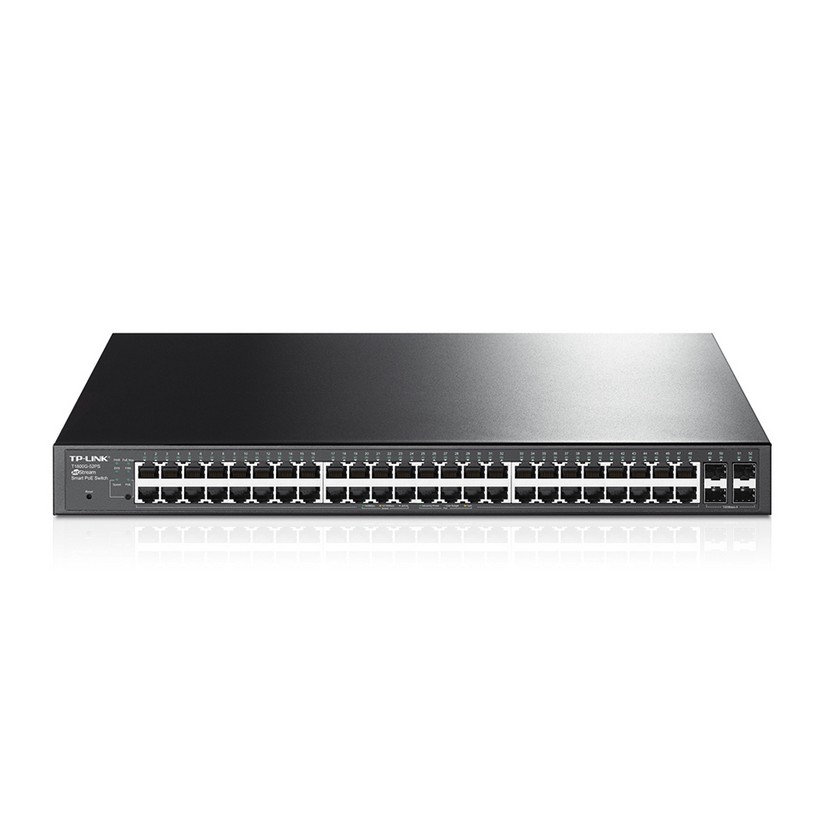

JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots
T1600G-52PS
Supports 48 802.3at/af-compliant PoE+ ports with a total power supply of 384W
L2+ Feature””Static Routing, helps route internal traffic for more efficient use of network resources
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
What This Product Does
The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network flexibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies.
Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. 802.1X and Radius Authentication allows network client to be authenticated through external Radius Servers. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. With all these advanced features, the JetStream Gigabit Smart PoE+ Switch T1600G-52PS is an ideal choice for projects or business networks which need PoE function.
|
| Feature |
PoE Features
- Standard: 802.3at/af compliant with up to 30W per port
- PoE+ Ports: 48 Ports
- Power Supply: 384W
- PoE Schedule (Time-based Settings)
L2 and L2+ Features
- Static Routing
- Link Aggregation Control Protocol (LACP)
- 4k VLANs
- STP/RSTP/MSTP
- IGMP Snooping
- LLDP / LLDP-MED
Security Strategies
- Access Control List (L2~L4 ACL)
- IP-MAC-Port Binding
- 802.1x and Radius Authentication
- Port Security
- Strom Control
- SSL and SSH encryptions
- Dos Defend
Quality of Service
- 8 priority queues
- 802.1P/DSCP QoS
- Voice VLAN
Management
- Web-based GUI
- Command Line Interface (through telnet)
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 group)
- IPv6 Management
- Dual Image
|
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface |
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF |
| Fan Quantity |
3 |
| Power Supply |
100~240VAC, 50/60Hz |
| Power Consumption |
Maximum (PoE on): 470.4W (220V/50Hz)
Maximum (PoE off): 46.5W (220V/50Hz) |
| PoE+ Ports(RJ45) |
Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports
Power Supply: 384W |
| Dimensions ( W x D x H ) |
17.3 x 13 x 1.73 in. (440 x 330 x 44 mm) |
| PERFORMANCE |
Bandwidth/Backplane 104Gbps
Packet Forwarding Rate 77.4Mpps
MAC Address Table 16K
Jumbo Frame 9KB |
| Quality of Service |
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS*
Voice VLAN |
| L2 and L2+ Features |
Static Routing
DHCP Relay*
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED*
VLAN Supports up to 4K VLANs simultaneousl |
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN |
| Access Control List |
L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
IPv6 ACL* |
| Security |
AAA*
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend |
| IPv6 |
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6 |
| IPv6 Applications |
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP |
| Management |
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
|
| Certification |
CE, FCC, RoHS |
| Package Contents |
T1600G-52PS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
| System Requirements |
Microsoft® Windows® XP, Vista or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature: 0ƒ~40ƒ (32‰~104‰);
Storage Temperature: -40ƒ~70ƒ (-40‰~158‰)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
|
