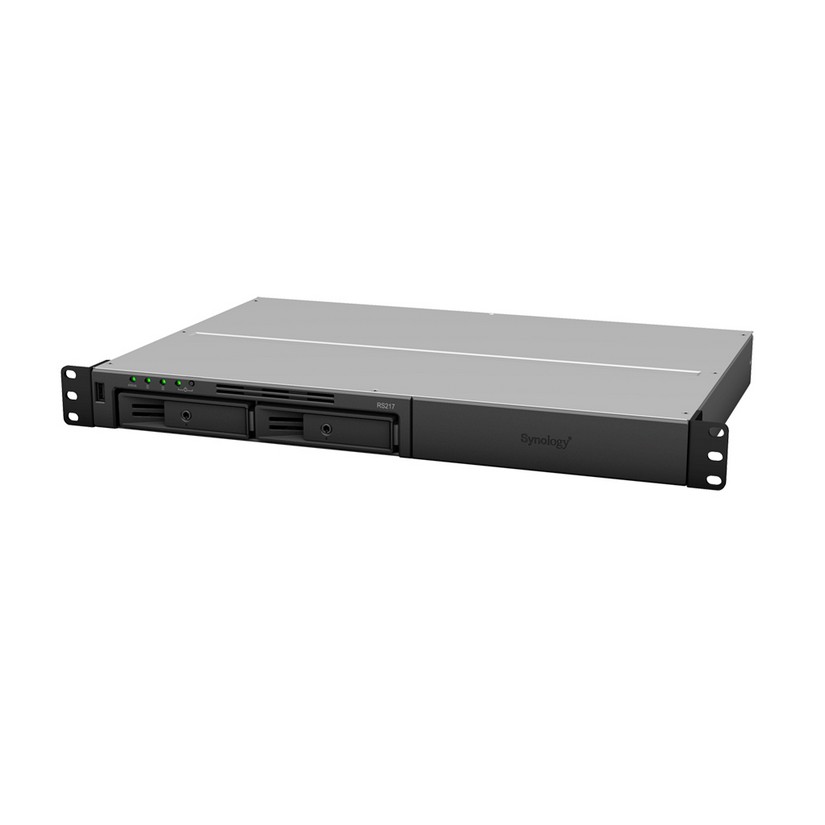

RackStation RS217
Delivering outstanding results for small and growing businesses
Designed for growing businesses, RS217 is a compact NAS providing stunning performance and a significant improvement in encrypted data processing. RS217 comes with comprehensive business applications, enhancing collaboration and productivity.
CPU Model Marvell Armada 385 88F6820
CPU Architecture 32-bit
CPU Frequency Dual Core 1.33 GHz
Hardware Encryption Engine
System Memory
512 MB DDR3
Drive Bay(s)
2
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Capacity
20 TB (10 TB HDD x 2) (Capacity may vary by RAID types)
Maximum Single Volume Size
16 TB
External Ports
USB 2.0 Port 1
USB 3.0 Port 2
eSATA Port 1
Internal Drives
EXT4
External Drives
EXT4
EXT3
FAT
NTFS
HFS+*
exFAT*
Notes
HFS+ is read only, max 2TB volume size.
exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 44 mm x 435.6 mm x 295.5 mm
Weight 3.46 kg
Others
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
Wake on LAN/WAN
System Fan 40 mm x 40 mm x 3 pcs
Fan Speed Mode
Cool Mode
Quiet Mode
Wireless Support (dongle)
Power Recovery
Noise Level* 25.8 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter 100W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 21.25 W (Access)
12.9 W (HDD Hibernation)
British Thermal Unit 72.56 BTU/hr (Access)
44.05 BTU/hr (HDD Hibernation)
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
