INTRODUCTION
The Strider series is the most versatile and time-proven line of power supply products from SilverStone with models rated from 500W to 1500W and packed with innovative features. To build on this impressive lineup, SilverStone engineered a new generation of power supplies that combine more features than ever before.
The Strider Plus ST50F-P boasts the important features professionals and enthusiasts crave:

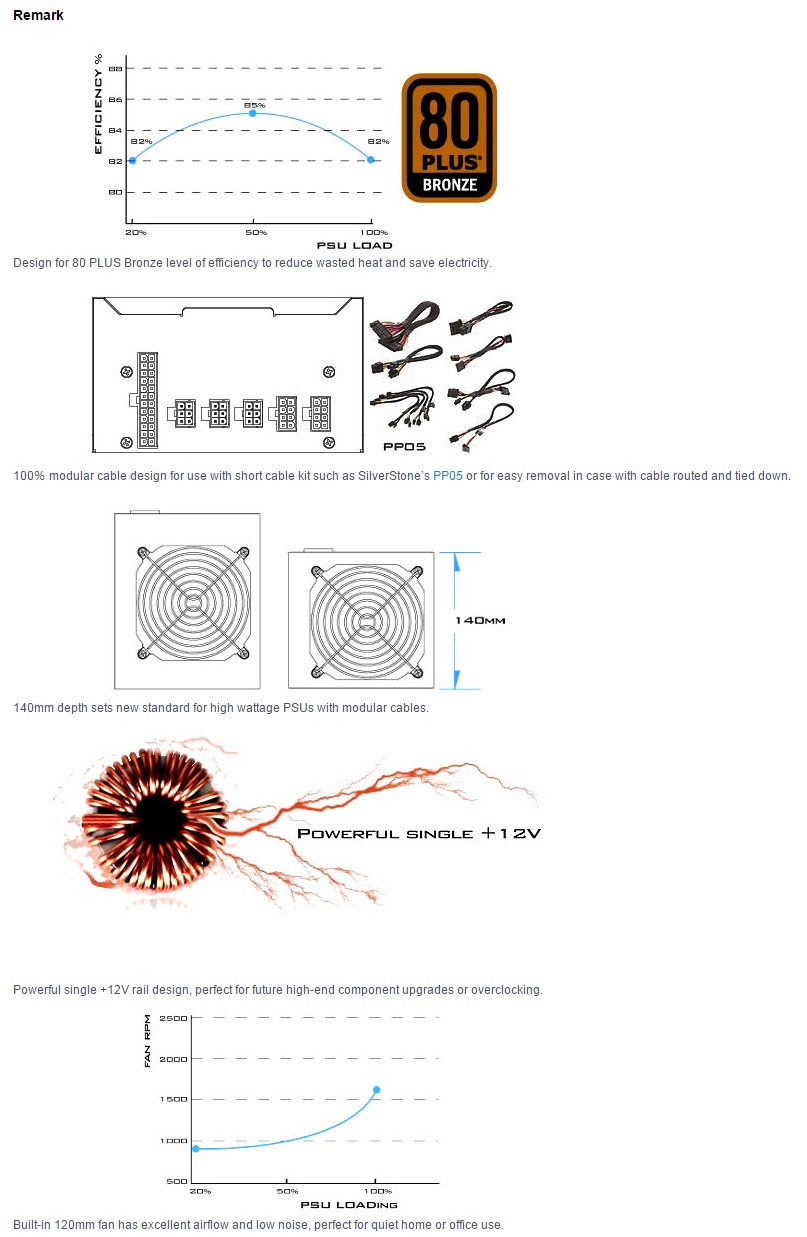

High efficiency: 80 PLUS Bronze level
Compact size (140mm depth) to fit in nearly any system
Class-leading powerful single +12V rail with 34A
Quiet and cool 120mm fan
The versatility of these power supplies extends to the 100% modular cables with all the important connectors to support current and future graphics card specifications.
For enthusiasts that are looking for the power supply with all the right features to make a high performing and aesthetically pleasing system, the Strider Plus series reaches the goal with maximum satisfaction.
SPECIAL FEATURES
24hour continuous power output with 40ƒoperating temperature
100% modular cables
Efficiency 82%~85% at 20%~100% loading
Class-leading single +12V rail with 34A
Silent running 120mm fan with 18dBA minimum
PCI-E connectors support
Support ATX 12V 2.3 & EPS 12V
Active PFC
Model No.
SST-ST50F-P
Max. DC Output
500W
Load Range
+3.3V
+5V
+12V
+5VSB
-12V
Max.(Amps)
24A
20A
34A
2.5A
0.3A
Peak (Amps)
/
/
/
/
/
Min.(Amps)
0.5A
0.3A
0.5A
0A
0A
Range (%)
±5%
±5%
±5%
±5%
±10%
Line Reg.(%)
±1%
±1%
±1%
±1%
±1%
Ripple(mVp-p)
50mV
50mV
120mV
50mV
120mV
combined +3.3, +5V
120W
combined +12V
408W/34A
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFCˆPF>0.95 at full load‰
Efficiency
82%~85% at 20% ~ 100% loading
MTBF
100,000 hours at 25°C, full load
Operating temperature
0°C ~ 40°C
Protection
Over current protection Over voltage protection Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connectorˆ550mm‰ 1 x 8 / 4-Pin EPS / ATX 12V connectorˆ550mm‰ 1 x 8/6-Pin PCIE connectorˆ550mm‰ 1 x 6-Pin PCIE connectorˆ150mm‰ 6 x SATA connectorˆ500mm / 150mm / 150mm‰ 3 x 4-Pin Peripheral connector ˆ500mm / 150mm / 150mm‰ 1 x 4-Pin Floppy connectorˆ500mm / 150mm / 150mm / 150mm‰
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
